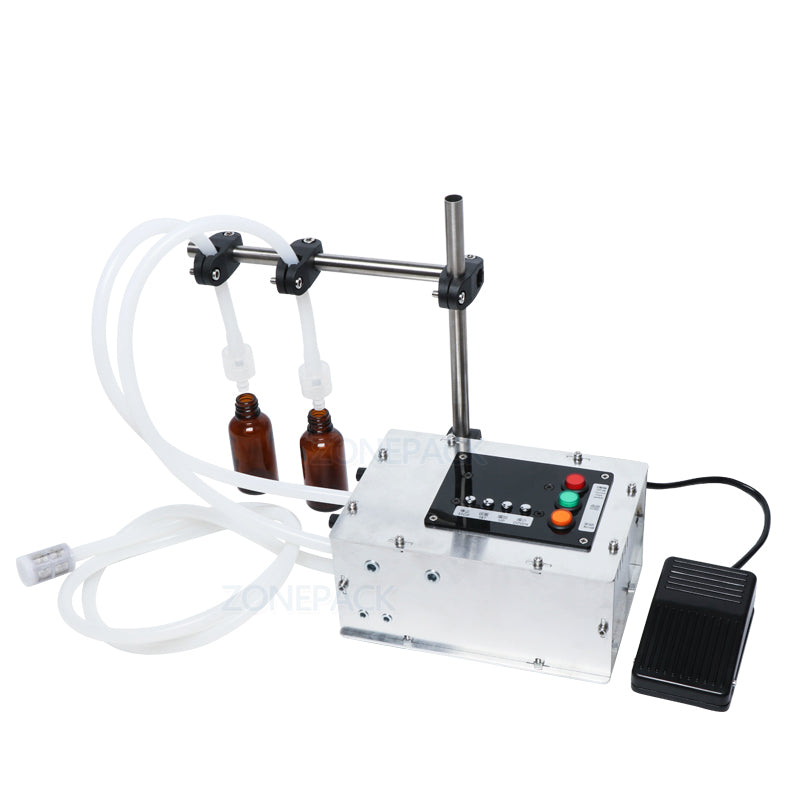

Intelligent induction liquid filling machine Small liquid high-precision heat-resistant filling machine

Shipping calculated at checkout.
Voltage: 110V

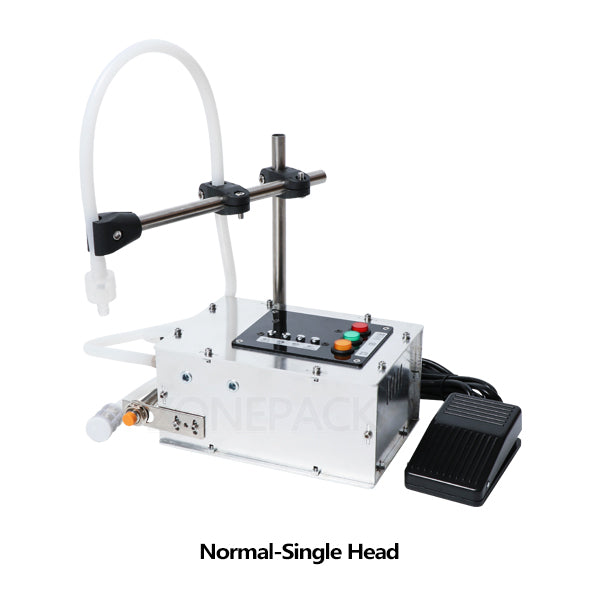

Size: Normal Single head
Pre-sale Support Quality Guarantee About Shipping

Product parameters:


Power supply device input voltage:100V-240V

machine input voltage:12V 5A DC power supply
Filling time:0.1S-999min

max flow rate:1.5/3L per min

Filling range volume:2ml-3000ml/1ml-1500ml

Filling error:+/-1%

Anti-drip function:yes
control method:Manual, automatic, intelligent sensing
Intelligent sensing distance:0-5mm
Stand height:Adjustable up to 255 mm
Working mode:

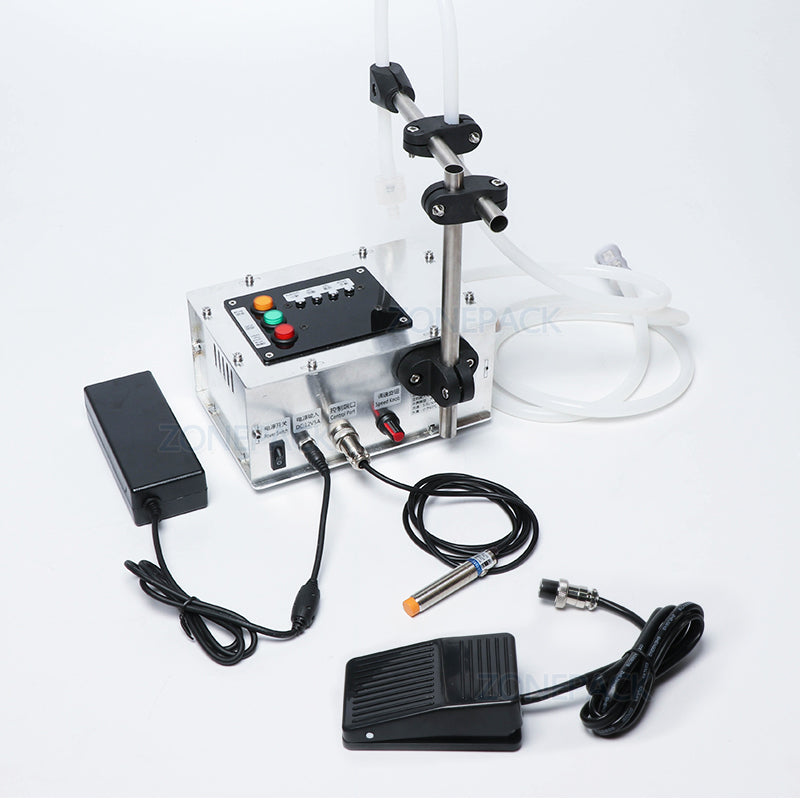

1.When the red light is on, it means that the smart sensor function and foot switch function are available. You can connect the smart sensor switch line or foot switch line at the control port.
2.When the green light is on, it indicates that the pump is working, and the green light is off, it indicates that the pump has stopped working. It is also a jog function button. Press once for filling
3.Yellow light: It is a manual switch, which can set the filling time and volume, and then press the yellow button to continuously filling,
Product features:

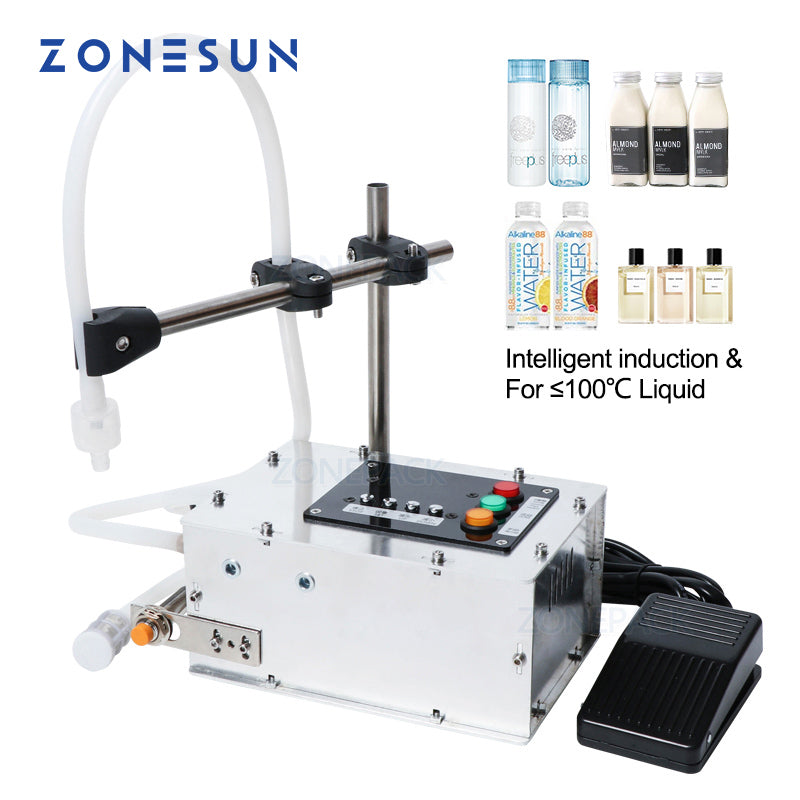

1.Suitable for beverages, liquor, soy sauce, juice, milk, lotion, etc.

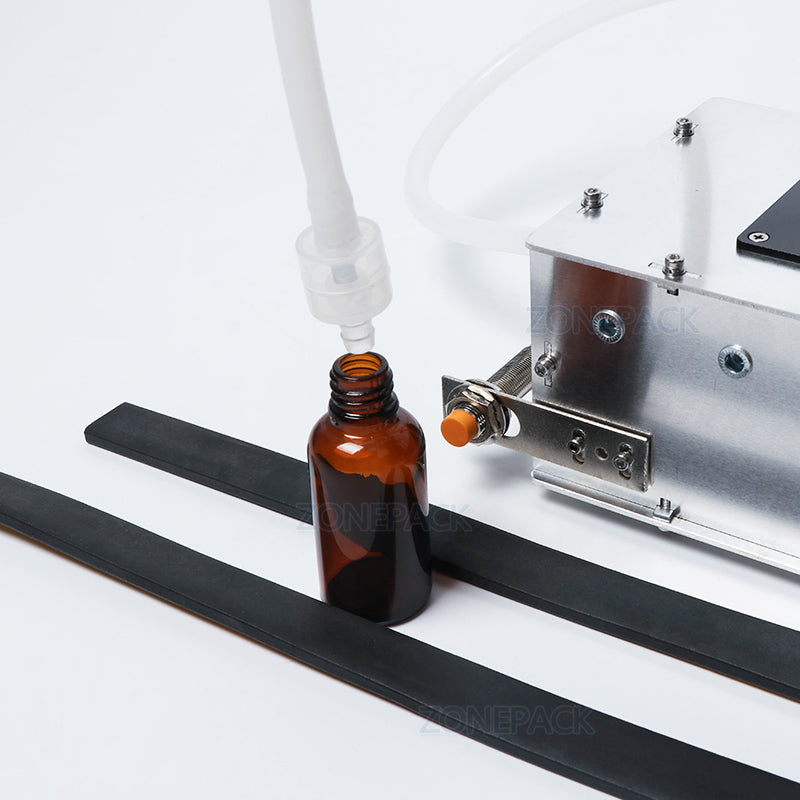

2.Automatic electric eye induction, intelligent filling is more efficient
3.Microcomputer control system, the highest timing accuracy reaches 0.1 second
4.User-friendly design, detachable water pipe, front and rear brackets can be installed

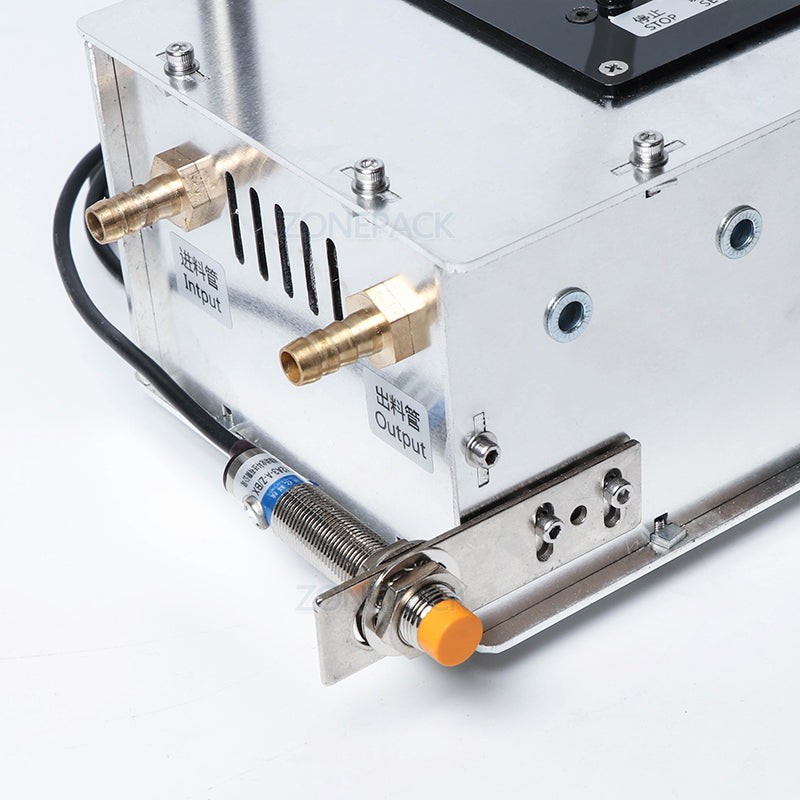

5.the inlet and outlet can be removed and replaced

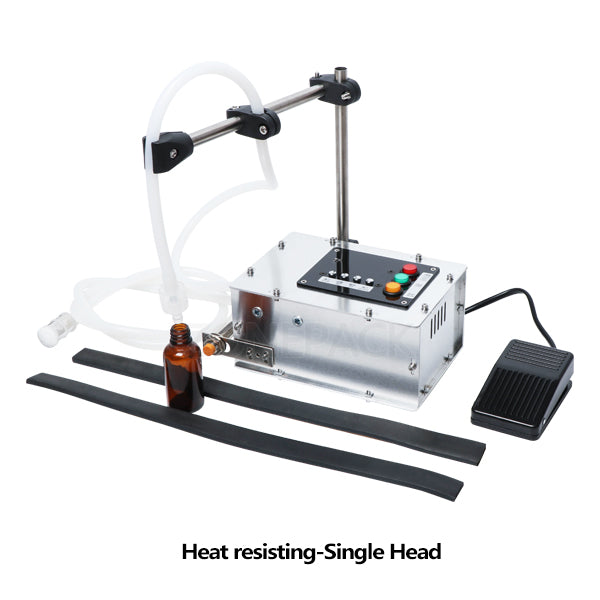

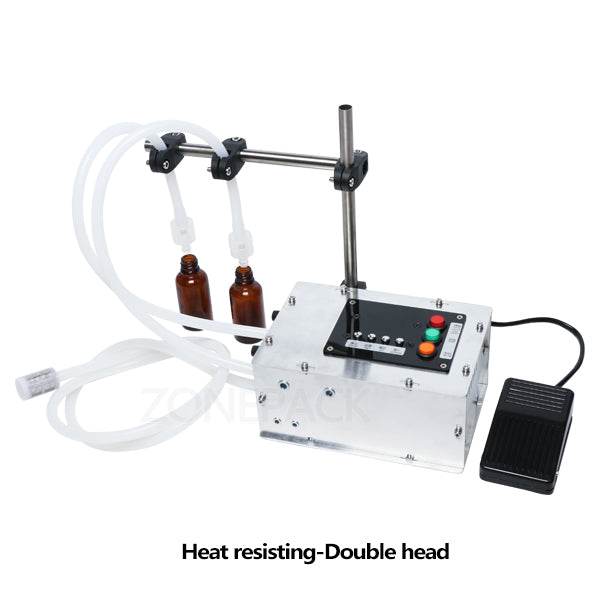

6.Two-head heat-resistant models have two built-in heat-resistant pumps, which can simultaneously discharge water or close one of them.
