The ZONESUN SBH Series 3D mixer is designed for blending compatible dry powders and granules. The sealed vessel moves through multi-directional motion to tumble and redistribute materials, while adjustable speed and operating time support different blending requirements. Three capacities are available: ZS-SBH10, SBH-20, and SBH-50.
SBH Series 3D Powder and Granule Mixing
The product options on this page cover 10 L, 20 L, and 50 L tank volumes. Select the model according to the required working load and batch size.
SBH-20 configuration shown. Confirm the selected model and technical specifications in the table below before ordering.
Applications
Suitable for compatible free-flowing powders and granules used in laboratory, food, chemical, pharmaceutical, and material-processing applications. Confirm material characteristics and required batch size before selection.
Technical Specifications
| Model | ZS-SBH10 | SBH-20 | SBH-50 |
|---|---|---|---|
| Tank volume | 10 L | 20 L | 50 L |
| Recommended volume | 8 L | 14 L | 40 L |
| Working load | 5 kg | 10 kg | 25 kg |
| Spindle speed | 0–15 r/min | 0–15 r/min | 0–15 r/min |
| Motor power | 0.75 kW | 0.75 kW | 1.1 kW |
| Machine dimensions | 800 × 1200 × 1000 mm | 880 × 720 × 750 mm | 1000 × 1400 × 1200 mm |
| Machine weight | 135 kg | 150 kg | 300 kg |
Machine Structure
Machine Details

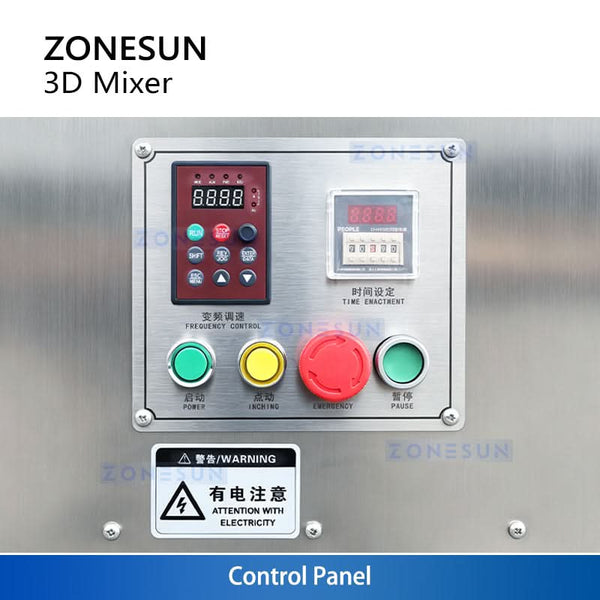

Control panel: Allows operators to set mixing speed and operating time and provides convenient start, inching, pause, and emergency-stop controls.

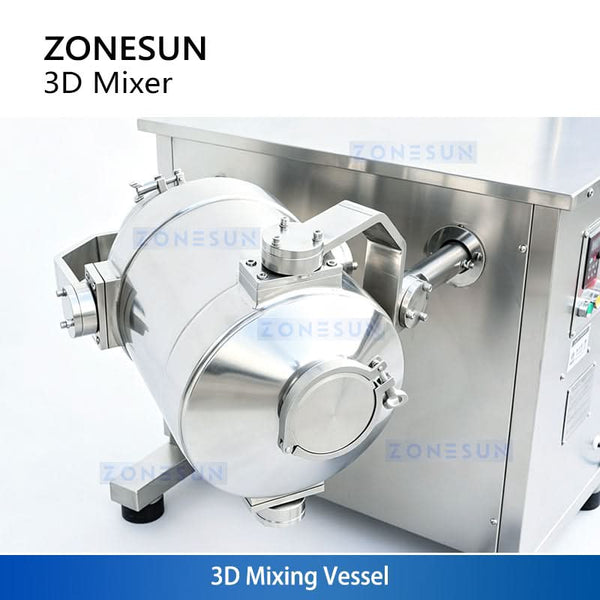

3D mixing vessel: The sealed vessel moves in multiple directions to tumble and redistribute compatible powders or granules.

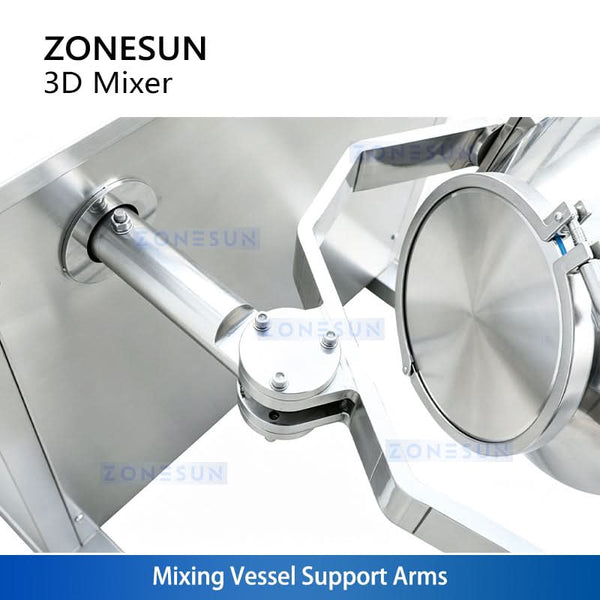

Mixing vessel support arms: Support the vessel and transmit multi-directional movement from the drive system.

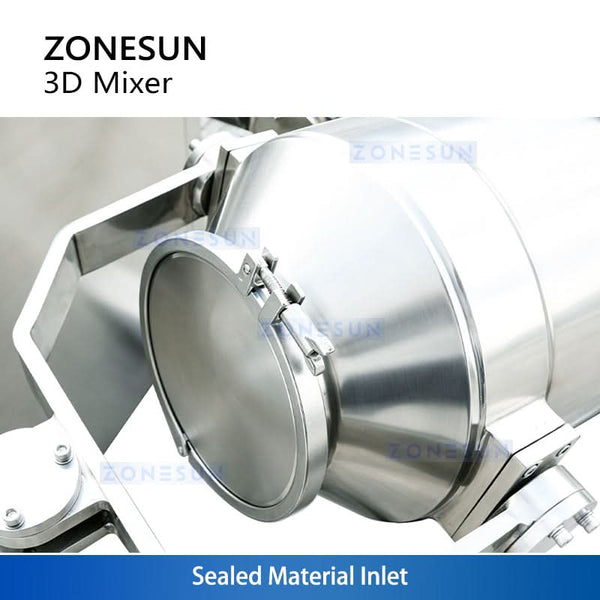

Sealed material inlet: Provides an enclosed loading opening that helps contain materials during mixing.

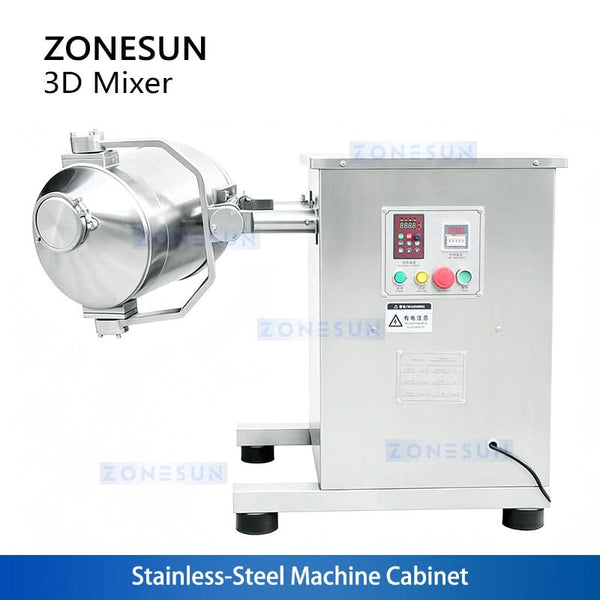

Stainless-steel machine cabinet: Provides structural support and encloses the internal drive and electrical components.
Product Views
Please confirm the material type, bulk density, particle size, target batch weight, voltage, and required production capacity before ordering.
