ZONESUN ZS-TB100S1/S2 Round Bottle Labeling Machine

Pris: $889.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Model:ZS-TB100S1（Standard）

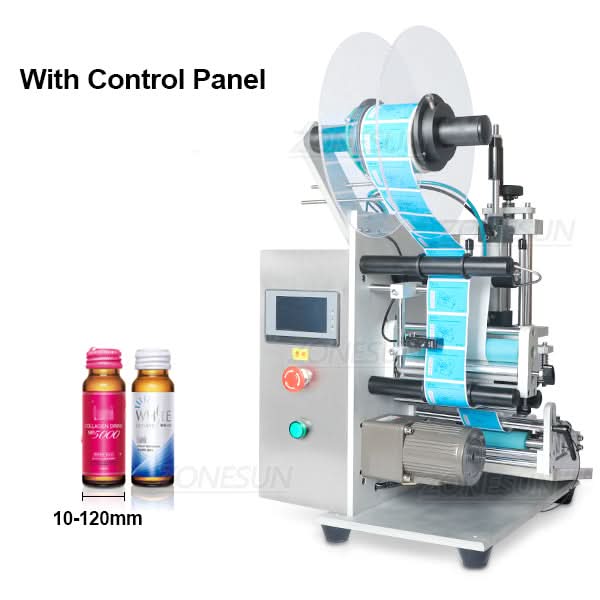

ZS-TB100S1（Standard）

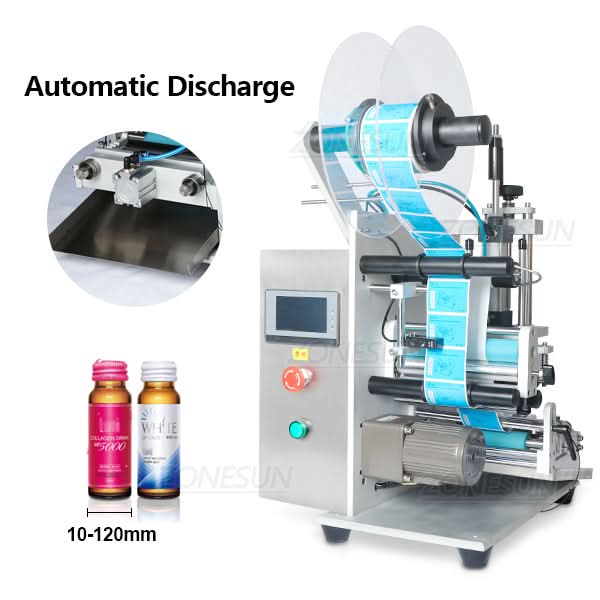

ZS-TB100S2（Autoamtic Discharge）

ZS-TB100SW

Produktvarianter

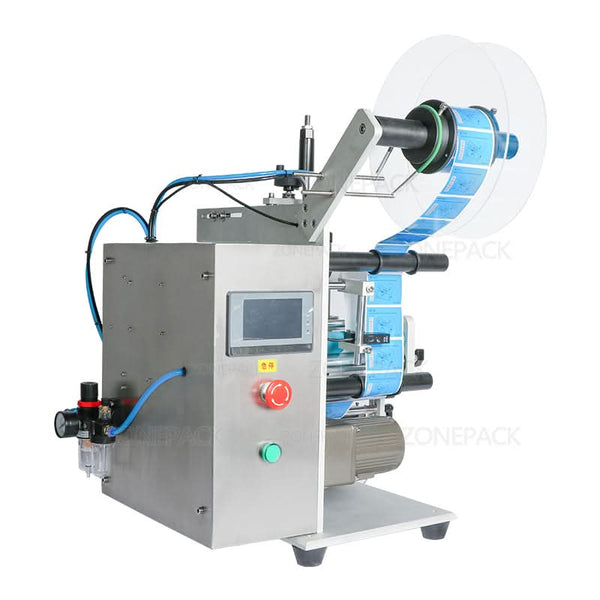

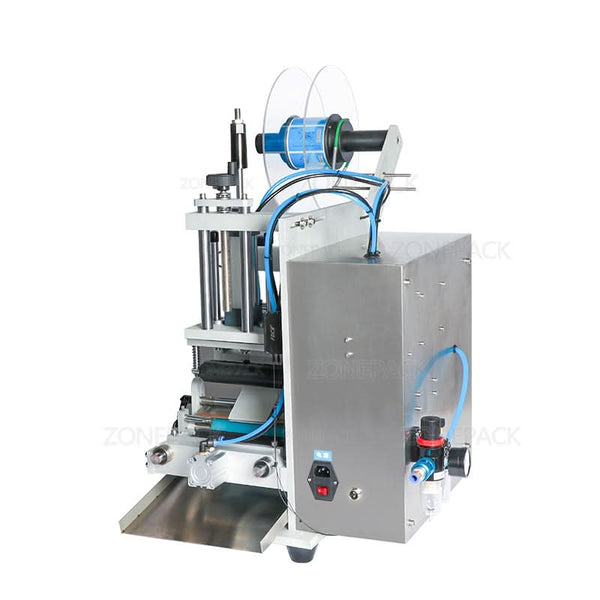

The ZONESUN ZS-TB100S2 is a semi-automatic desktop labeling machine designed for precise single or double-sided labeling of small cylindrical items such as reagent bottles, vials, pens, and e-cigarettes. With adjustable speed and high labeling accuracy (±1mm), it supports label widths up to 170mm and diameters from 10–120mm. The machine features automatic discharge and can be customized with a date coder for printing batch numbers or production dates. Ideal for small-scale production and lab use, it also supports transparent label applications upon request.

Note：The coding unit can only be purchased together with the machine. We can reserve the mounting position and installation holes during production. It cannot be installed later if purchased separately after delivery.

Parameter

Machine Model	ZS-TB100S1	ZS-TB100S2	ZS -TB100S3

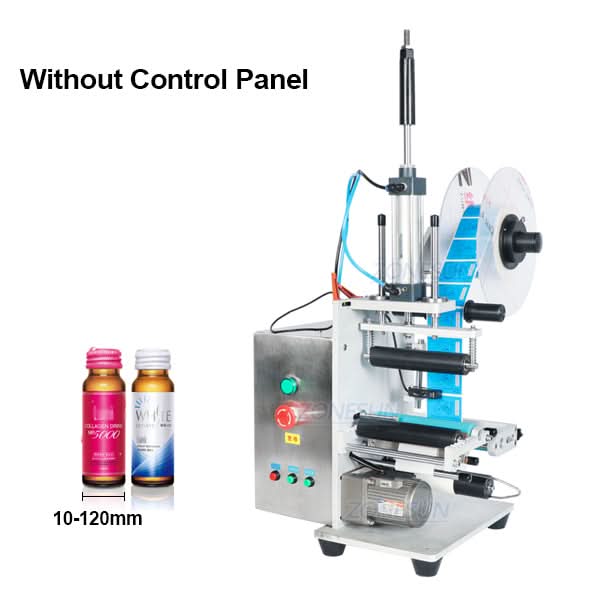

Main Feature	Standard Version	Automatic Discharge	Without Control Panel
Power Supply	110V/220V 50-60HZ
Working Speed	15-35pcs/min	20-40 or 15-35 pcs/min	15-35pcs/min
Labeling Accuracy	±1mm
Air Pressure	0.4-0.6MPa
Label Outputting Direction	Right	Left	Right
Labeling Object Diameter	φ10-120mm	φ10-30mm orφ10-120mm	φ10-120mm
Labeling Object Height	≤250mm	s250mm	≤250mm
Suitable Label Size	15-170mm(W)	15-170mm(W)	150-170mm(W)
Label Roll OD	φ220mm
Label Roll ID	φ75mm
Size of Air Compressor Connector	OD8mm
Machine Size	About 410475720mm
Package Size	About 505465630mm
Net weight/Gross weight	About 32kg/34kg
