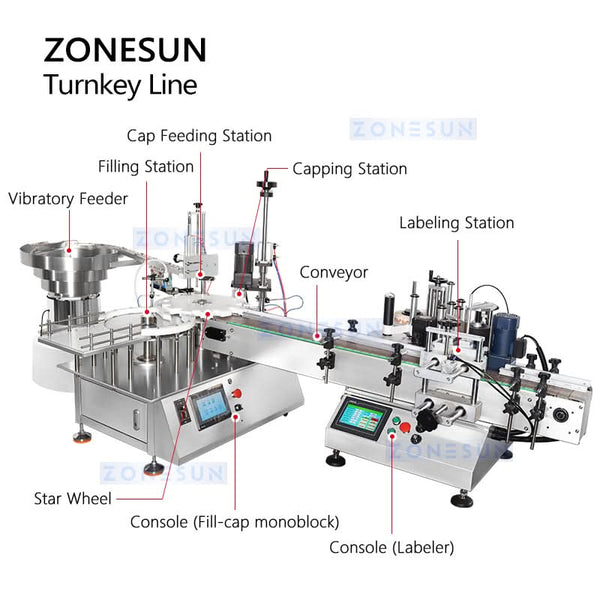

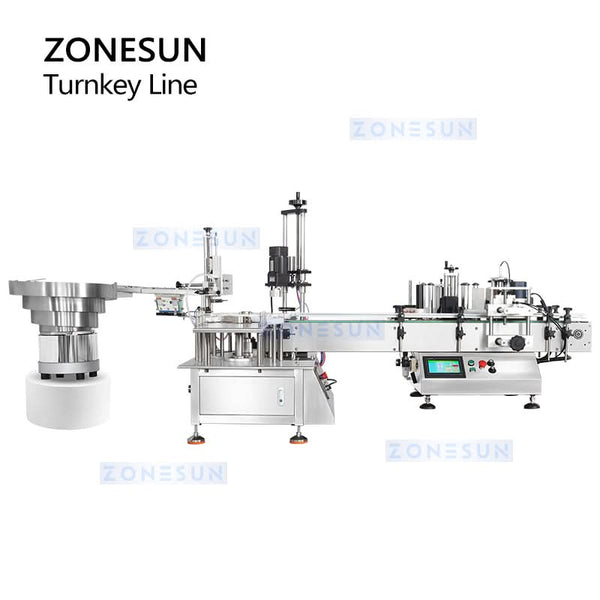

The ZONESUN ZS-AFCL2 is a compact desktop turnkey solution that integrates bottle unscrambling, magnetic pump filling, automatic capping, and precise round bottle labeling. Designed for small to medium-scale production, it features a star wheel conveyor and vibratory cap feeder for smooth, continuous operation. Ideal for liquids in bottles ranging from 10–100ml, this system boosts efficiency, reduces labor, and ensures consistent packaging quality. A smart choice for pharmaceuticals, cosmetics, essential oils, and more.
Parameter
Machine Model ZS-AFC7B Filling and Capping Machine
Voltage 220V / 110V, 50–60Hz
Power 1000W
Filling Pump Magnetic Pump
Working Capacity Approx. 20–30 bottles/min (depends on bottle size)
Filling Range 10–100ml
Suitable Bottle Height Approx. 30–60mm
Suitable Bottle Diameter Approx. 20–50mm
Bottle Cap Size Customizable
Max Flow Rate 3L/min (based on water)
Machine Model ZS-TB500 Labeling Machine
Voltage 110V–60Hz / 220V–50Hz
Working Speed Approx. 20–50 bottles/min
Suitable Labeling Size 15–140mm (W) × 25–300mm (L)
Roll Inside Diameter φ76mm
Roll Outside Diameter φ350mm
Suitable Bottle Diameter ≤100mm
Package Size Approx. 1290 × 860 × 900mm
Package Weight Approx. 130kg

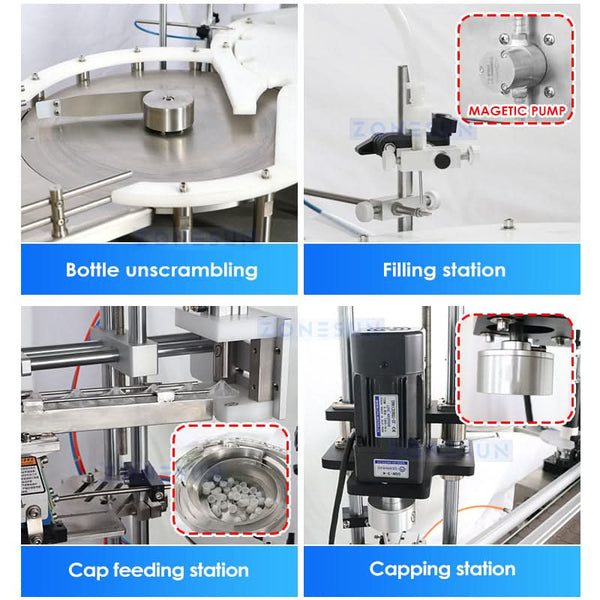

BOTTLE UNSCRAMBLING
The bottle-unscrambling unit organizes containers before filling.
FILLING STATION
The filling station uses a magnetic pump.
CAP FEEDING STATION
The cap-feeding station supplies caps for the capping process.
CAPPING STATION
The capping station tightens caps on the containers.

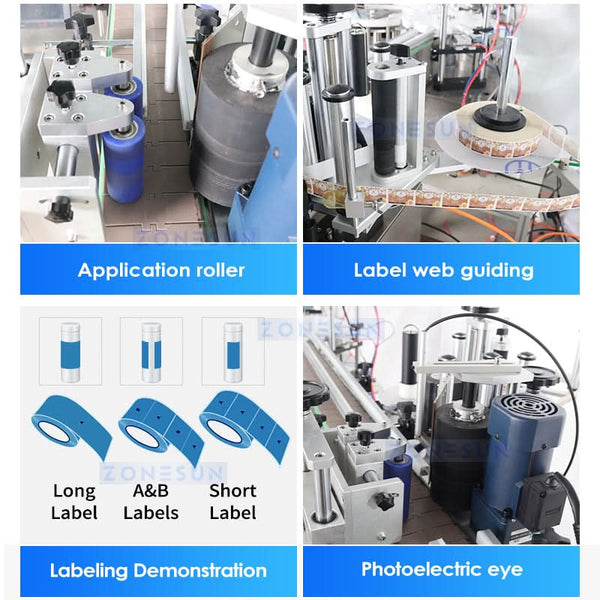

APPLICATION ROLLER
The application roller presses the label onto the container.
LABEL WEB GUIDING
The label-web guiding system directs the label material through the labeling unit.
LABELING OPTIONS
The labeling unit supports long labels, front-and-back labels, and short labels.
PHOTOELECTRIC EYE
The photoelectric eye detects products during labeling.
FILL-AND-CAP MONOBLOCK
The fill-and-cap monoblock is operated through its touchscreen interface.
LABELER
The labeling unit is operated through its touchscreen interface.
ADJUSTABLE FILLING SPEED
The filling speed can be adjusted from the controller.
AIR COMPRESSOR
An air compressor is required and sold separately.
