ZONESUN ZS-FK8001 Four-Side Carton Sealing Machine

Udsalgspris: $7,410.00
Normalpris: $7,800.00
Du redder: $390.00 (5%)

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:220V

Produktvarianter

Note

Special discount is only applicable to this link. Quantity is limited, and the original price will be restored after sold out. Please contact customer service for details

Product Overview

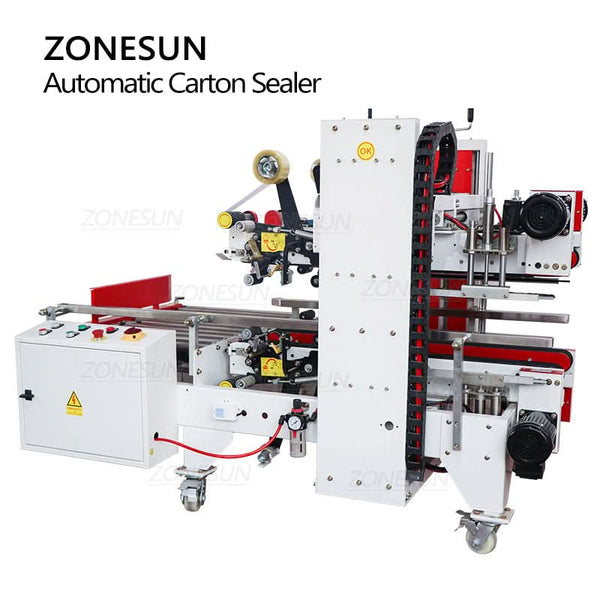

This carton sealing machine is used for sealing four edges of the carton automatically. It can be used independently or in packing line. Greatly improve working efficiency and ensure the production quality.

Technical Specifications

Model	ZS-FK8001
Voltage	220V 50-60Hz
Power	1000W
Sealing Speed	17.5m/min
Tape Width	60-78mm
Tape Head	50-70mm(Adjustable)
Sealing Length	200-500mm
Sealing Width	320-500mm
Sealing Height	180-500mm
Height of the Work Surface	660-740mm(Adjustable)
Air Pressure	5-6kg/cm²
Dimension	197011001470mm
Weight	About 400kg

Notice

This machine can be used together with a one-line box sealing machine. If you need, please contact us. Thank you!

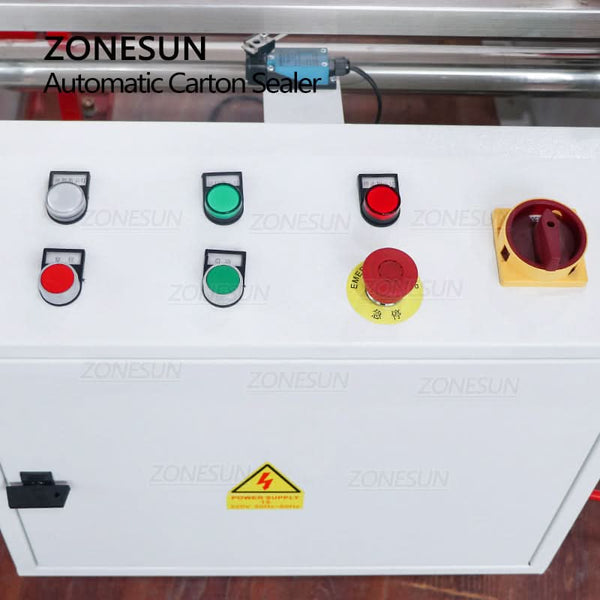

CONTROL BUTTONS

The clearly labeled control buttons allow operators to start, stop, and adjust the machine easily. An emergency stop button is included for immediate shutdown when required.

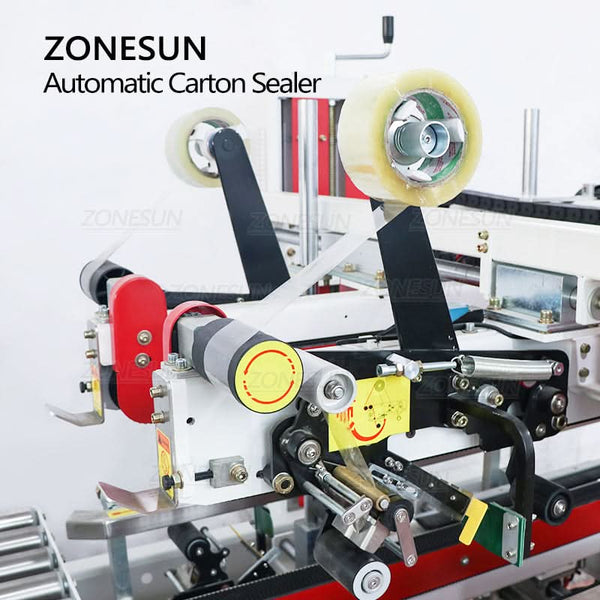

SEALING RULER

The graduated ruler allows operators to quickly adjust the tape height for different carton sizes.

ROTARY HANDLE

The rotary handle allows operators to adjust the tape height according to the carton height.

ADJUSTABLE FEED INLET

The feed inlet width can be adjusted using the rotary handle to accommodate cartons of different sizes.

PUSHING MECHANISM

When a carton activates the microswitch, the red plate pushes it forward into the sealing area. The machine can be integrated with an in-line carton sealer for continuous operation.

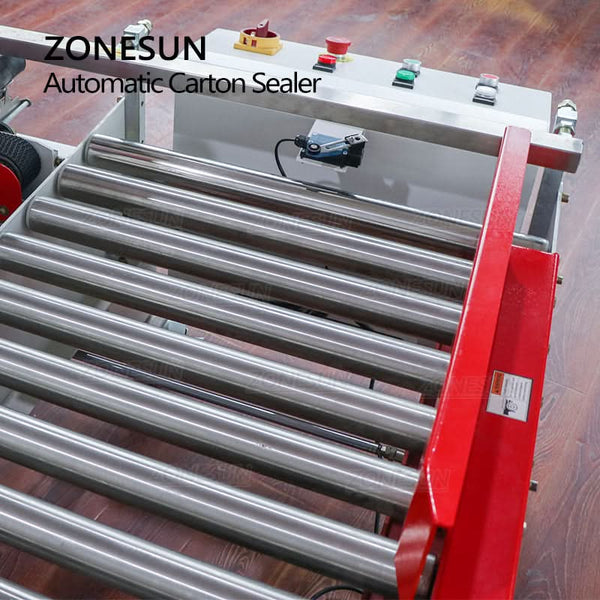

STAINLESS STEEL ROLLERS

The stainless steel rollers support smooth and stable carton movement while providing reliable load-bearing performance.

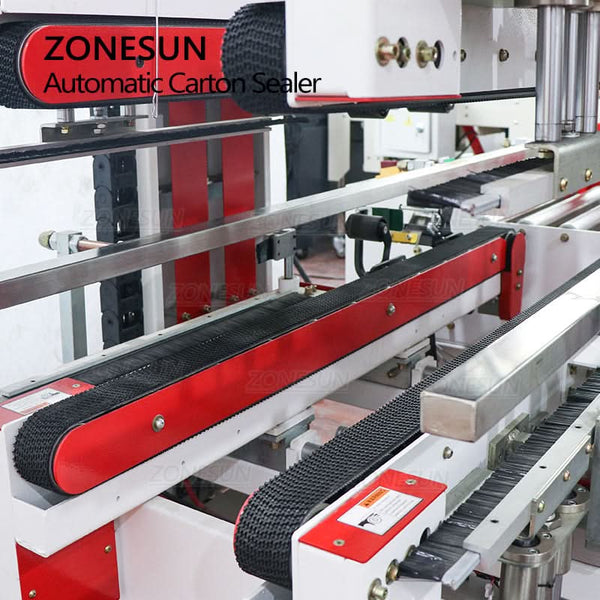

HIGH-QUALITY MOTORS

Four motors provide the power required for stable carton conveying and sealing.

AIR PRESSURE GAUGE

The pressure gauge allows operators to monitor the air pressure in real time. An air compressor is required for operation and is sold separately.

MACHINE WHEELS

The removable wheels allow operators to reposition the machine conveniently when required.
