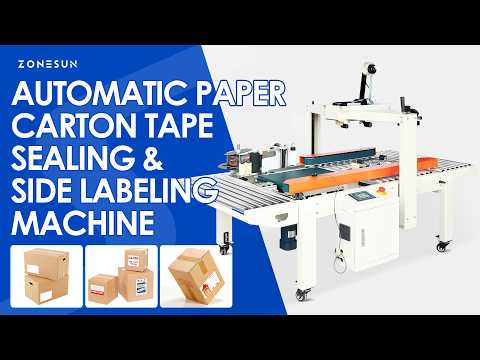

ZONESUN ZS-FKC4650S Automatic Carton Sealing & Side Labeling Machine
The ZONESUN ZS-FKC4650S is an automatic carton sealing and labeling machine that combines top and bottom tape sealing with side label application in a single efficient system. Using dual side-belt conveyors for stable carton movement and precise photoelectric sensors for synchronization, it delivers reliable performance at 20–50 cartons per minute. It supports customizable carton sizes and pre-printed adhesive labels. An optional ink coding system is available to print production dates, batch numbers, and other variable information directly on cartons — ideal for streamlining end-of-line packaging across multiple industries.
Key Features
- Touchscreen Control Panel — Intuitive interface for easy parameter adjustment and real-time production monitoring.
- Carton Sealing Structure — Completes top and bottom tape sealing in one pass with centered and consistent tape application.
- Side Labeling Structure — Applies pre-printed adhesive labels accurately on the side (or optional top) of cartons.
- Photoelectric Sensor System — Real-time carton detection ensures precise label dispensing and positioning.
- Dual Side-Belt Conveyor — High-grip side belts provide stable carton transport and maintain alignment during sealing and labeling.
Benefits
- All-in-One Efficiency — Combines sealing and labeling to reduce labor and save floor space.
- Stable Performance — Dual side-belt system ensures smooth and accurate processing.
- Flexible Operation — Supports customizable carton sizes and optional ink coding.
- High Productivity — 20–50 pcs/min depending on carton dimensions.
- Easy Integration — Compatible with carton erectors and downstream packaging lines.
Technical Specifications
| Machine Model | ZS-FKC4650S |
|---|---|
| Voltage | 110V / 220V, 50–60 Hz |
| Power | ~500 W |
| Production Capacity | 20–50 pcs/min (depending on carton size) |
| Sealing Speed | 24 m/min |
| Max Carton Size | 460 mm (W) × 500 mm (H), length unlimited (customizable) |
| Adhesive Tape Width | 30–45 mm |
| Worktable Height | 600–700 mm |
| Machine Dimensions | Approx. 2070 × 1360 × 1400 mm |
| Machine Weight | ~300 kg |
Applications
Suitable for automatic sealing and side labeling of cartons in the food, cosmetics, pharmaceutical, chemical, and consumer goods industries. Ideal for end-of-line packaging operations where both tape sealing and label application are required in a single pass.
