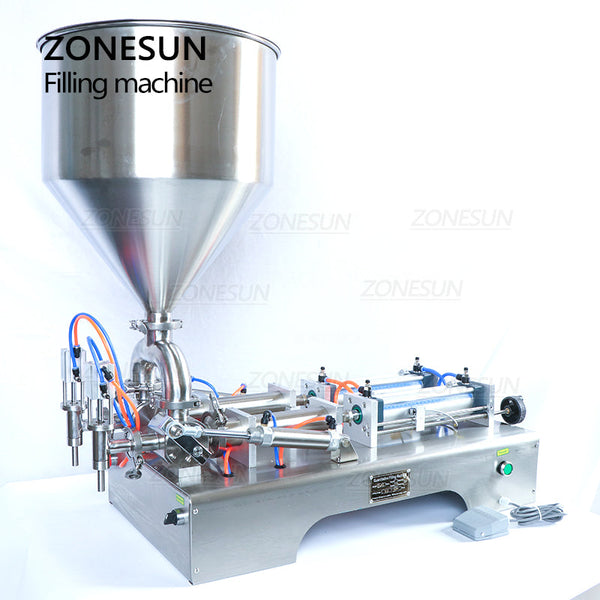

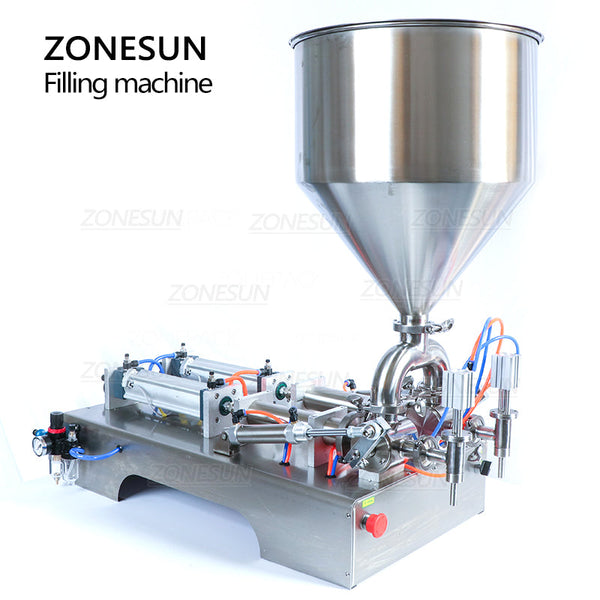

The ZONESUN ZS-GY2 is a semi-automatic pneumatic piston filling machine designed for creams, lotions, shampoo, liquid soap, honey, sauces, jam, chocolate and other flowable pastes. Its two anti-drip filling nozzles can be adjusted independently, helping small and medium production teams fill two containers per cycle with better control over volume and speed.
Key Features
- Dual independently controlled nozzles: Fill two containers per cycle or adjust each nozzle separately for the application.
- Pneumatic piston filling: Suitable for a range of liquids, viscous products and flowable pastes.
- Seven filling ranges: Choose 10–100, 10–300, 50–500, 100–1000, 500–2500, 500–3000 or 1000–5000 mL according to the required dose.

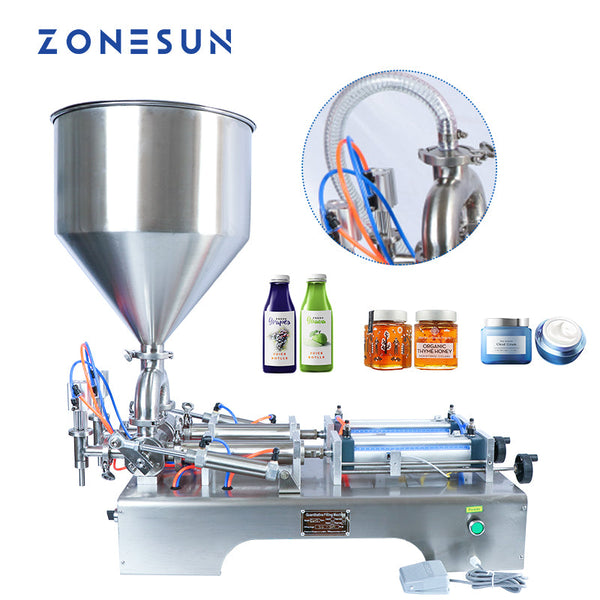

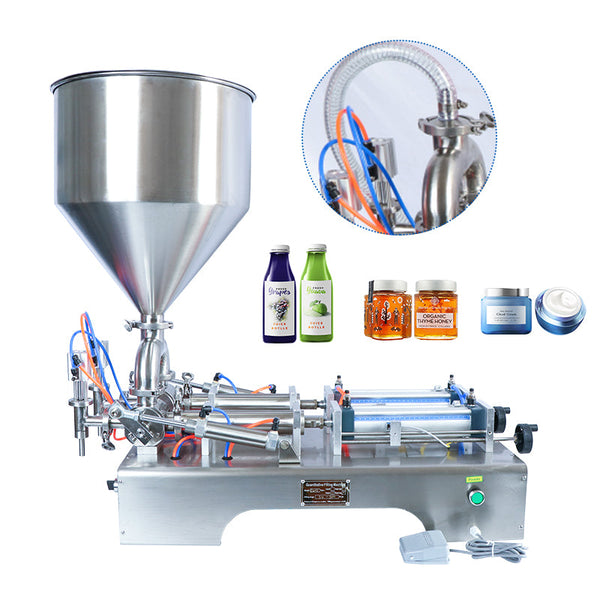

- Hopper or suction-hose feeding: Use the hopper for pastes, or connect the hose for suitable free-flowing liquids.
- Manual and automatic modes: Operate with the foot pedal or set the filling interval for repeated cycles.
- Adjustable volume and speed: Graduated cylinders and rotary controls support setup for different products and container sizes.
Specifications
| Model | ZS-GY2 |
| Voltage | 110V or 220V, 50–60Hz |
| Power | 10W |
| Available Filling Ranges | 10–100 mL / 10–300 mL / 50–500 mL / 100–1000 mL / 500–2500 mL / 500–3000 mL / 1000–5000 mL |
| Filling Speed | 10–50 bottles/min, depending on fill volume, product flow properties and operator setup |
| Filling Accuracy | ±0.5% |
| Air Pressure | 0.4–0.6 MPa |
| Drive Type | Electric and pneumatic |
| Air Capacity | >30 L |
| Machine Package Size | 960 × 515 × 330 mm |
| Hopper Package Size | 440 × 460 × 540 mm |
| Package Weight | 48 kg |
Important: This pneumatic filling machine requires an air compressor, which is sold separately. Product viscosity, particles, temperature, fill volume and container opening can affect the suitable configuration and achievable speed. Share a material sample or product details with us before ordering if you are unsure.
Machine Details

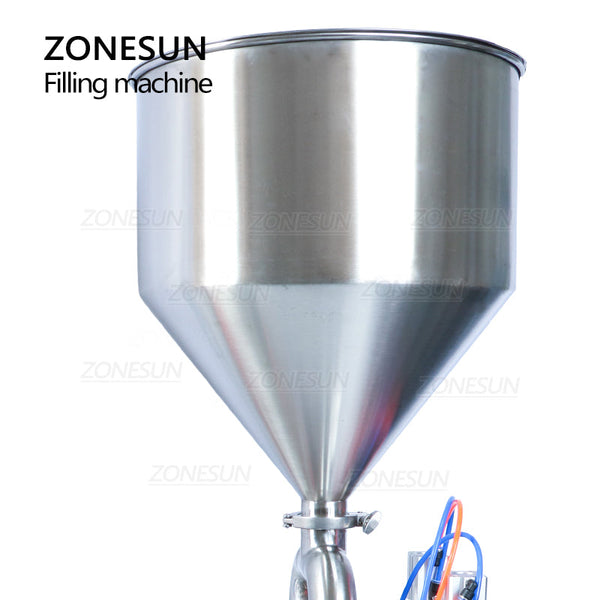

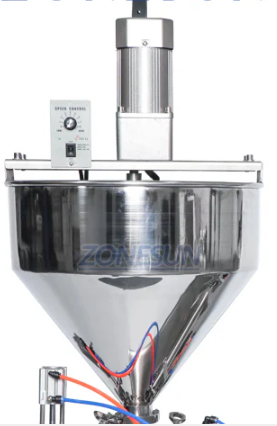

Changeable Feeding Container

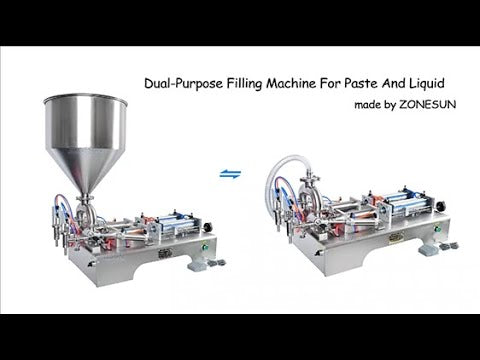

The feeding connection can be changed between the hopper and a suction hose. The hose setup is intended for suitable free-flowing liquids and is not recommended for pastes.
Dual Anti-Drip Filling Nozzles
The two nozzles help reduce dripping and can be adjusted independently to suit the filling setup.

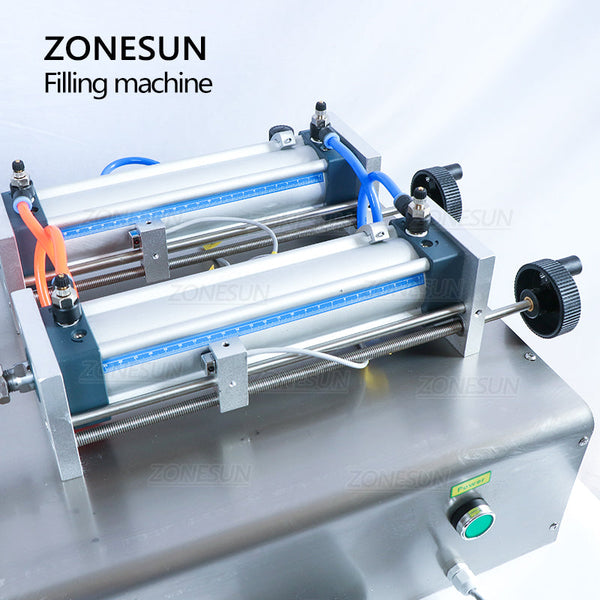

Filling Volume Adjustment
Rotary knobs and graduated cylinder markings help the operator set and check the filling volume.
Adjustable Filling Speed
The filling speed of each nozzle can be adjusted independently. In automatic mode, the interval between cycles can also be set.
Two Operating Modes
Use automatic cycling for repeated filling or operate the machine with the foot pedal when more manual control is required.

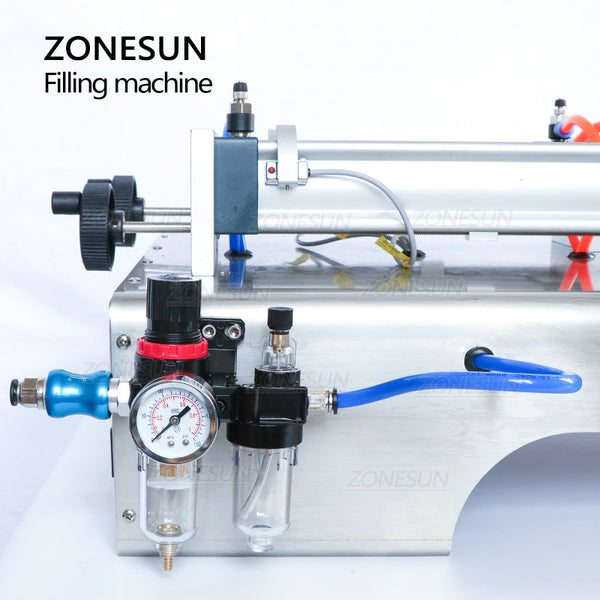

Pressure Monitoring
The pressure gauge allows the operator to monitor the air supply during operation. An air compressor is required and sold separately.
