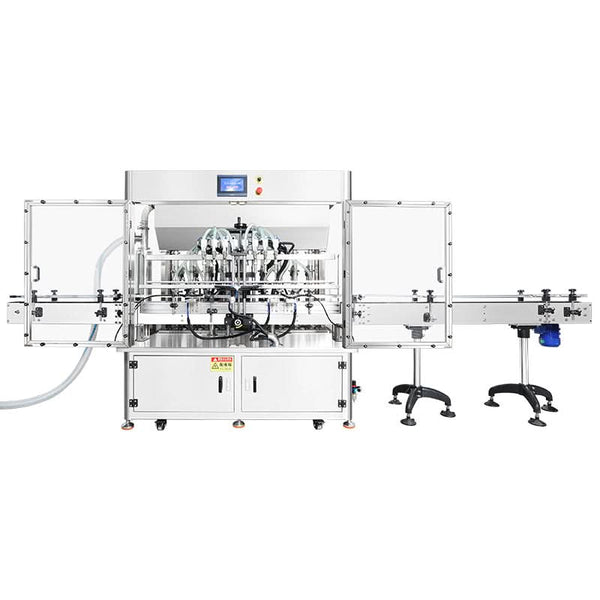

Automatic 8-Head Servo Piston Paste Filling Machine
The ZONESUN ZS-YT8T-8PX is designed for automatic filling of compatible pastes and viscous liquids, with a filling range of 100–1000 mL. Its eight servo-controlled piston filling heads work simultaneously, with an anti-drip design to help reduce dripping after each cycle. Filling speed is approximately 30–70 bottles/min, depending on the product and bottle size.
A 250 L hopper, automatic material feeding pump, touchscreen control panel and drip collection tray support continuous production. The hopper supports heating up to 80°C for compatible materials. Filling nozzle quantity and hopper capacity can be customized according to production requirements.
Key Features
- Servo piston dosing: Set filling volume and filling speed through the touchscreen for controlled, repeatable filling.
- Eight anti-drip filling heads: Fill multiple bottles simultaneously while helping reduce residual dripping.
- Automatic material feeding: The feeding pump transfers product from an external supply container into the hopper, reducing manual refilling.
- 250 L heated hopper: Provides a large material reserve with a maximum heating temperature of 80°C for compatible products.
- Touchscreen control: Adjust operating parameters and monitor machine status.
- Drip collection tray: Collects residual material beneath the filling area to help keep the conveyor cleaner.
Technical Specifications
| Model | ZS-YT8T-8PX |
|---|---|
| Power Supply | 220 V, 50 Hz |
| Power | 6 kW |
| Filling Range | 100–1000 mL |
| Number of Filling Nozzles | 8 (customizable) |
| Filling Speed | Approx. 30–70 bottles/min, depending on bottle size and filling material |
| Maximum Heating Temperature | 80°C |
| Material Hopper Capacity | 250 L (customizable) |
| Air Pressure | 5–6 kg/cm² |
| Air Compressor Connector Size | Φ10 mm |
Applications
Suitable for compatible pastes, sauces and viscous liquids requiring automatic bottle filling. Actual output depends on viscosity, filling volume, bottle size and production conditions. Contact us with your material and bottle requirements to confirm suitability and any customization.
Machine Details

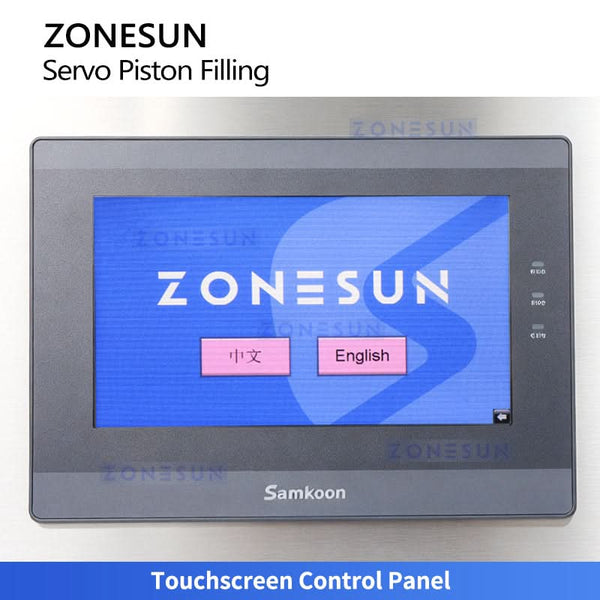

Touchscreen Control Panel
Set filling volume, speed and other operating parameters through the touchscreen while monitoring machine status.

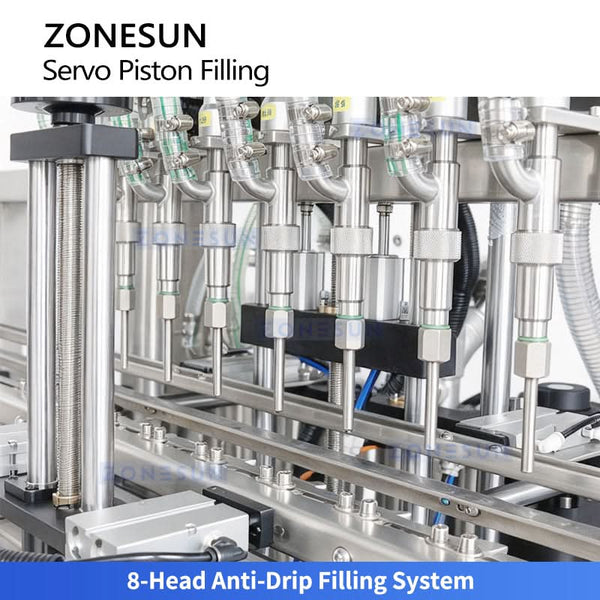

8-Head Anti-Drip Filling
Eight filling nozzles operate simultaneously for efficient filling. The anti-drip design helps reduce product dripping after each filling cycle.

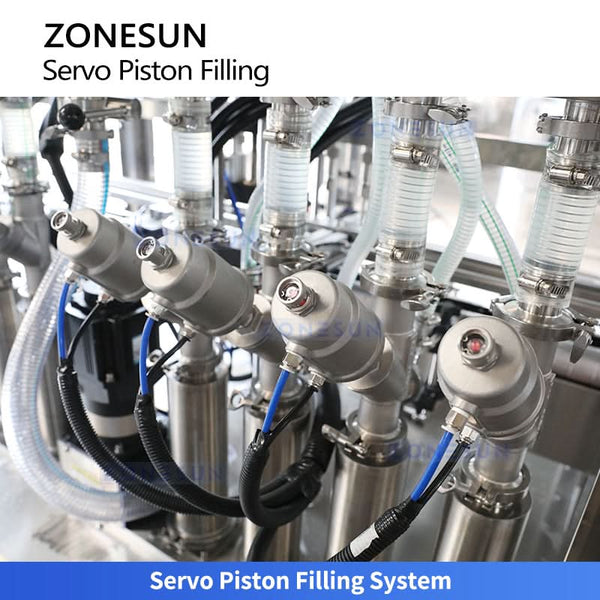

Servo Piston Filling System
Servo-controlled piston filling provides precise control of filling volume and speed for consistent filling of viscous products.

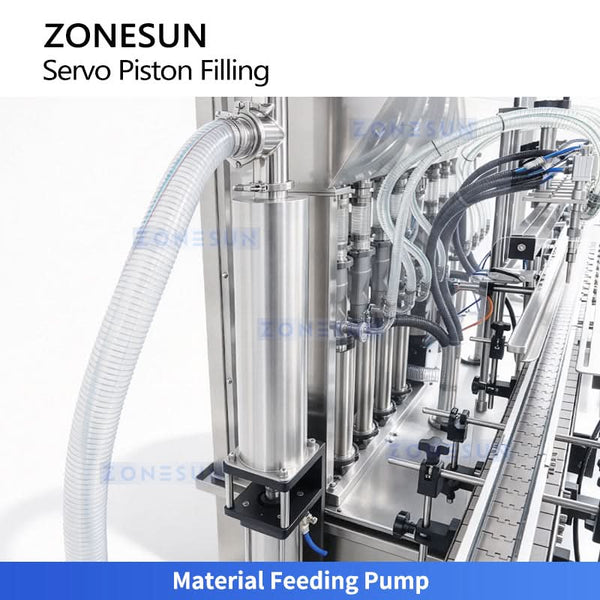

Automatic Material Feeding Pump
The feeding pump automatically transfers paste from an external supply container into the hopper, reducing manual refilling during continuous production.

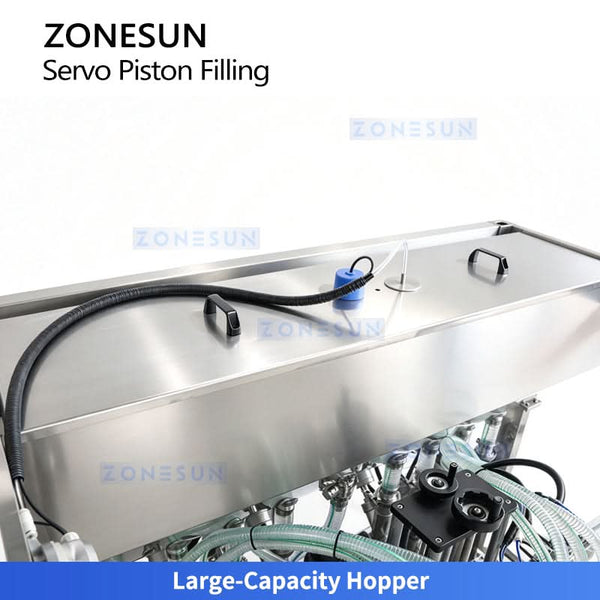

Large-Capacity Hopper
The hopper stores product and continuously supplies it to the filling system, reducing the frequency of material refilling during production.
Drip Collection Tray
The tray collects residual product beneath the filling nozzles to help keep the conveyor and working area clean.
Electrical Control System
The electrical control cabinet neatly integrates and protects the main electrical and control components to support stable machine operation.
