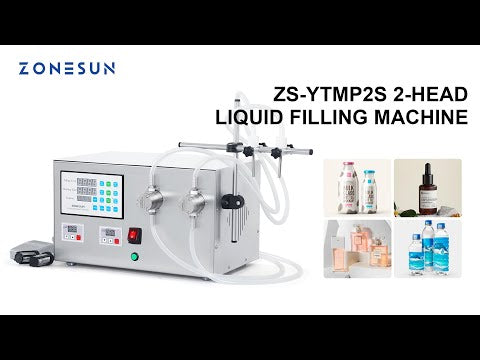

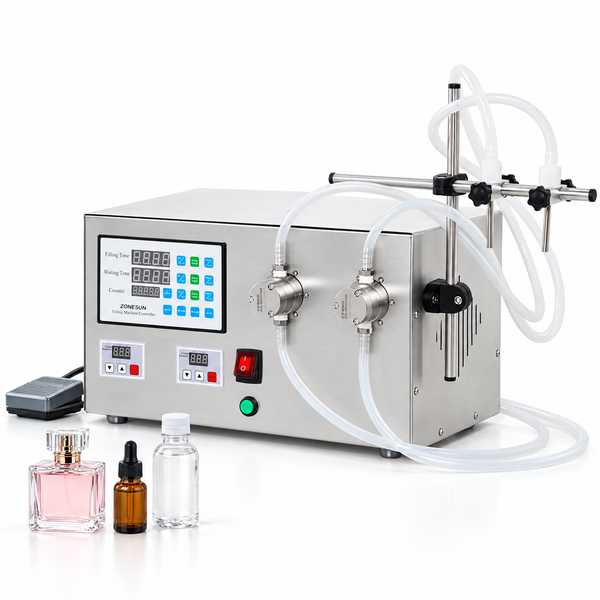

The ZONESUN ZS-YTMP2S is a tabletop, semi-automatic liquid filling machine with two 316L stainless steel magnetic pumps and two filling heads. Designed for small-batch filling of low-viscosity liquids such as water, perfume and essential oils, it features digital controls, anti-drip nozzles, a memory function and foot pedal operation.
Technical Specifications
| Machine Model | ZS-YTMP2S |
|---|---|
| Voltage / Power | AC 220V/110V, 50W |
| Pump Type | 316L Stainless Steel Magnetic Pump × 2 |
| Max Flow Rate | 4 L/min and 6 L/min |
| Max Suck Distance | 2 m |
| Margin of Error | ±0.5% (varies by liquid density) |
| Anti-dripping Function | Available |
| Memory Function | Available |
| Filling Nozzle Size | Ø4 mm × 2 and Ø6 mm × 2 |
| Net Weight | Approx. 8.6 kg |
| Gross Weight | Approx. 10 kg |
| Machine Size | Approx. 403 mm × 255 mm × 250 mm |
| Package Size | Approx. 470 mm × 415 mm × 310 mm |
CONTROL PANEL
ANTI-DRIP FILLING NOZZLES
The filling nozzles feature an anti-drip design to support accurate filling. Standard accessories include two 4 mm nozzles and two 6 mm nozzles, with other sizes available for customization.
AUTOMATIC AND MANUAL MODES
The machine supports automatic and manual operation and includes a foot pedal for convenient control.
FILTER
The filter removes impurities from the liquid before filling.
