ZONESUN ZS-DTGT900P Automatic Rotor Pump Paste Filler with Diving Nozzle

Pris: $2,460.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

DDP (Delivered Duty Paid) service may be available for selected destinations. For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

For non-DDP shipments, import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:110V

Produktvarianter

The ZONESUN ZS-DTGT900P is an automatic rotor pump filling machine designed for viscous products such as jam, sauce, gel and cream. It combines a 30 L hopper, conveyor, photoelectric bottle detection and a standard pneumatic diving filling nozzle in one compact unit. The recommended filling range is 5–5,000 mL. Actual output depends on the filling volume, product viscosity and container handling conditions.

Parameter	Specification
Machine Model	ZS-DTGT900P
Power Supply	110V or 220V
Machine Power	840 W
Pump Type	Rotor pump
Recommended Filling Volume	5–5,000 mL
Filling Accuracy	±1%
Required Bottle Opening Diameter	Greater than 20 mm
Hopper Capacity	30 L
Working Speed	Approximately 10–60 bottles/min, tested with 250 mL jam
Filling Nozzle	Standard pneumatic diving filling nozzle
Air Supply	External air compressor required; sold separately
Conveyor Size	Approximately 1,020 × 140 mm
Conveyor Height from Ground	Approximately 490 mm
Machine Dimensions	Approximately 1,060 × 800 × 1,090 mm
Machine Weight	Approximately 59 kg

Before Ordering: The pneumatic diving filling nozzle is included as standard. An external air compressor is required for operation and must be purchased separately.

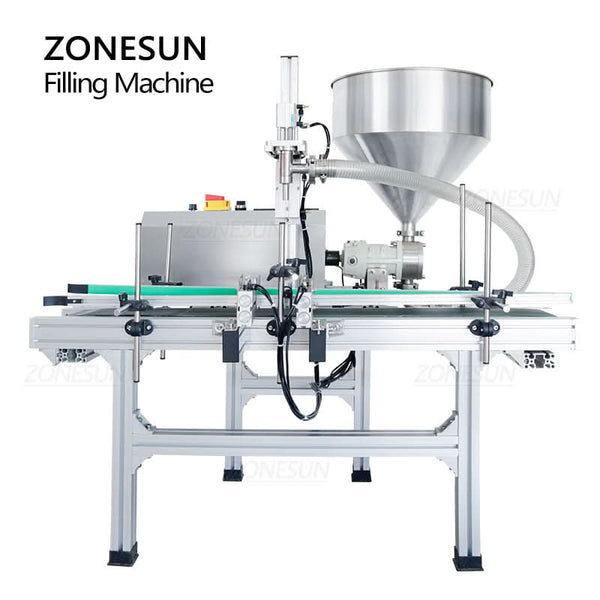

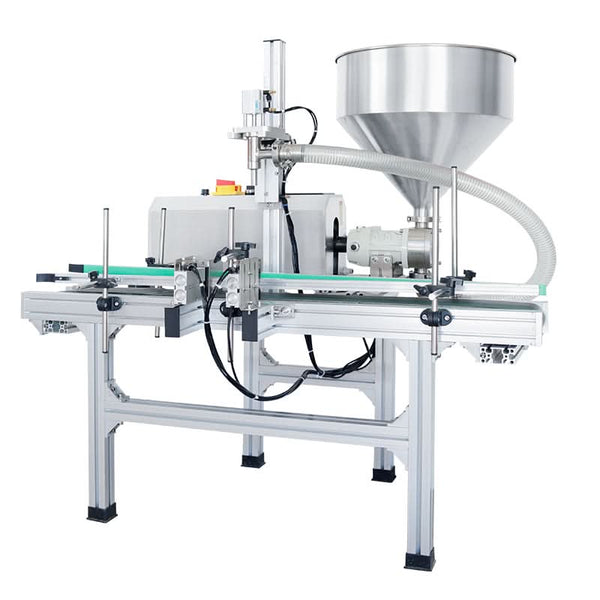

ZONESUN ZS-DTGT900P automatic rotor pump paste filling machine

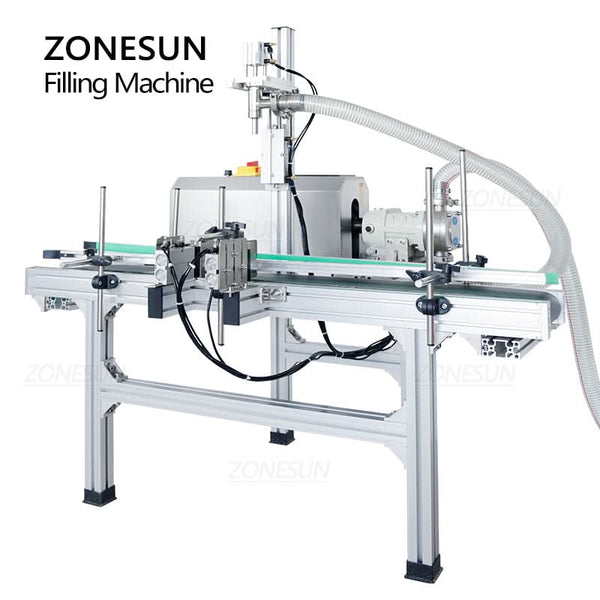

ZS-DTGT900P automatic paste filler machine view

ZS-DTGT900P rotor pump filler application example

ZS-DTGT900P viscous product filling applications

ZS-DTGT900P control panel and pneumatic diving filling nozzle

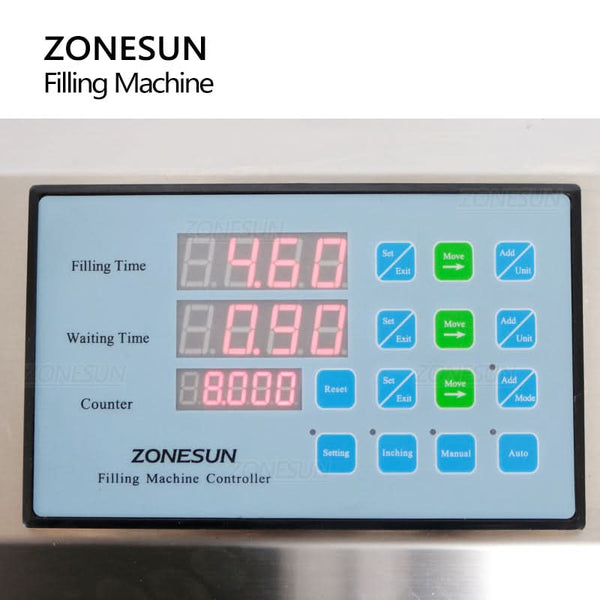

DIGITAL CONTROL PANEL

The digital control panel allows adjustment of filling time, waiting time and operating mode. The integrated counter displays completed filling cycles.

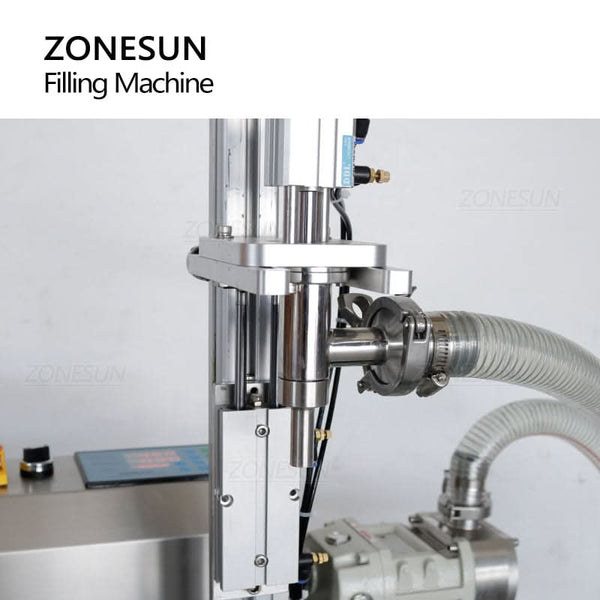

PNEUMATIC DIVING FILLING NOZZLE

The standard pneumatic nozzle moves downward during filling and rises afterward to help reduce splashing when dispensing viscous products. An external air compressor is required and sold separately.

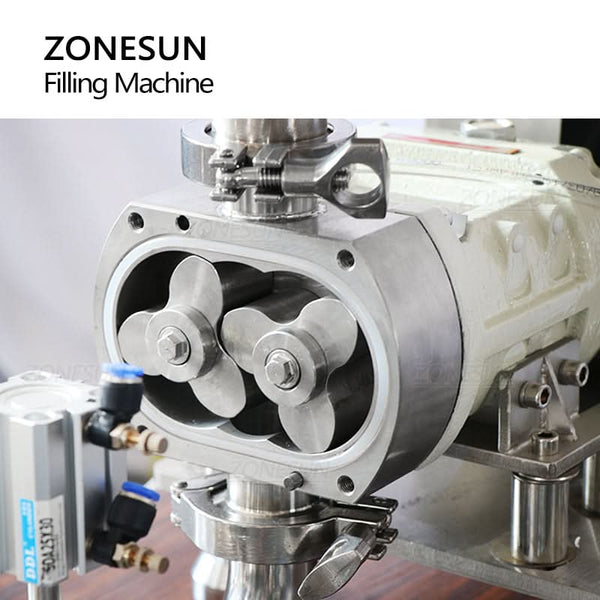

ROTOR PUMP

The rotor pump supports filling viscous products and can be disassembled for cleaning.

PHOTOELECTRIC SENSOR

The photoelectric sensor detects incoming containers and triggers the automatic filling cycle. Sensor sensitivity can be adjusted for different containers.
