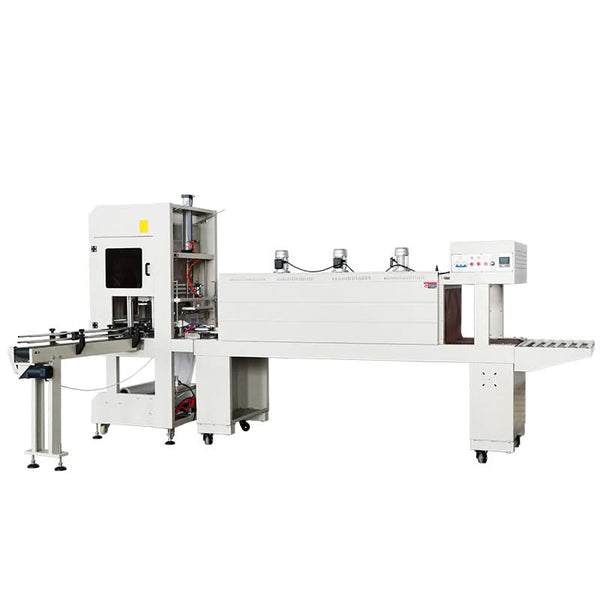

The ZONESUN ZS-SPL4 is a complete shrink wrapping solution designed for bottled water, soft drinks, and similar products. It automatically dispenses and seals shrink film around grouped bottles, then passes them through a high-efficiency shrink tunnel for tight, professional packaging. Compatible with fillers, cappers, and labelers, this system integrates seamlessly into a full production line, improving packaging speed, consistency, and shelf appeal.
PARAMETER
Wrapper |
|
|
Model |
ZS-QZD7040 |
|
Voltage |
220-240V 50-60Hz |
|
Power |
2kw |
|
Packing speed |
0-6 bags/min |
|
Sealing time |
0.5-1.5s |
|
Package length |
≥12cm |
|
Max package width |
42cm |
|
Max package height |
33cm |
|
Conveying load |
20kg |
|
Conveyor length |
1.6m |
|
Film width & thickness |
Max 560mm/0.03-0.25mm |
|
Applicable film |
POF/PE/PVC/PP |
|
Machine size |
About 2210*1450*2080mm |
|
Machine weight |
About 380kg |
Shrink Tunnel |
|
|
Model |
ZS-BSPN6040 |
|
Voltage |
380V 50-60HZ |
|
Power |
21KW |
|
Tunnel Size |
About 1800*600*400mm |
|
Conveying Speed |
0-15m/min |
|
Transport Load |
25kg |
|
Suitable Film |
PVC/POF/PE |
|
Machine Size |
About 2800*910*1400mm |
|
Package Size |
About 2880*930*1500mm |
|
Package Weight |
About 350kg |
PRODUCT DETAILS
WRAPPER PLC CONTROL
The wrapping unit is controlled by a PLC.
COLOR TOUCHSCREEN
The wrapper uses a color touch-screen interface.
SHRINK-TUNNEL CONTROLS
The shrink tunnel is equipped with straightforward controls.
AUTOMATIC BOTTLE ARRANGEMENT
The machine arranges the bottles automatically.
AUTOMATIC FILM FEEDING
Shrink film is dispensed automatically.
AUTOMATIC WRAPPING
The machine wraps the grouped bottles automatically.
AUTOMATIC SEALING
The wrapped bottles are sealed automatically.
REDUCED FILM WASTE
The wrapping process helps prevent unnecessary film waste.
HOT-AIR CIRCULATION
Three motors circulate hot air inside the shrink tunnel.
HEAVY-DUTY OPERATION
The shrink tunnel is built for continuous, heavy-duty use.
