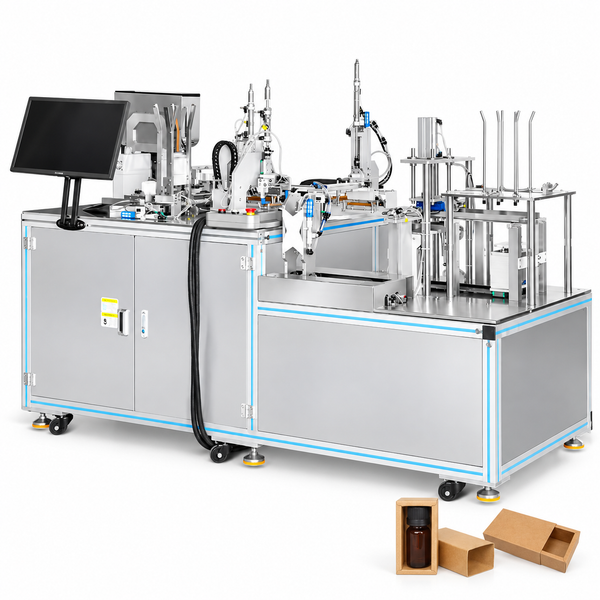

The ZS-MSZH50R is a fully automatic cartoning machine designed to streamline the packaging of sliding paper boxes. It folds box trays, loads bottles, and pushes trays into cartons, completing the packaging cycle with precision and speed. Compatible with filling systems, it’s ideal for cosmetics, skincare, and daily chemical products. Boost productivity and maintain packaging consistency with this efficient solution.
Parameter
- Machine Model:ZS-MSZH50R
- Voltage:220V 50-60Hz Single Phase
- Motor Power:2KW
- Working Speed:About 10-12boxes/min
- Suitable Box Size:About 80-220mm(L)* 40-170(W)mm*20-70mm(H)
- Air Pressure:0.5-0.8MPa
- Machine Size:About 2300*1220*1650mm(L*W*H)
- Machine Weight:About 1000kg
Equipped with touch screen control panel, customizable interface simplify working operation, visual working data makes it easily to watch machine working status in real time.
Box folding structures work together on a rotary table, they finish box folding process step by step, this saves working space, and can reduce production error efficiently.
Equipped with sensor to remind material shortage, ensures machine can work stably.Air nozzles will convey cardboard to the box prefolding sturcture and finish next working process.
Equipped with bottle loading structure, it can put bottles into box tray orderly.Product orientation sensing component can detect product logo and rotate bottle body,ensures the packaging consistency of products.
Air nozzles will open outer cover and work with the pneumatic pushing omponent to push box tray into outer cover to finsh the complete production.
