DESCRIPTION

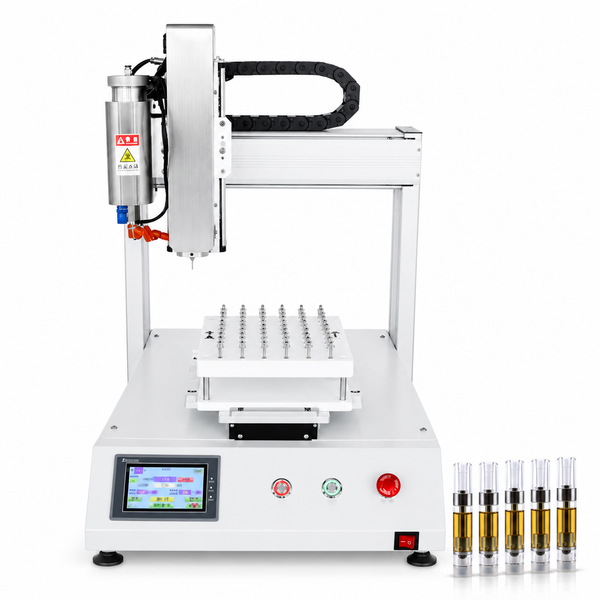

Engineered for precision micro-filling, this automated machine uses a robotic nozzle for accurate dispensing into cartridges and atomizers. With programmable X-Y axis movement and automatic container transport, it’s widely used in biological and chemical applications for filling oil vial bottle with clean, efficient performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-EL221 |
| Voltage | 220V / 110V, 50–60Hz |
| Power | 500W |
| Number of Filling Nozzles | 1 (Customizable) |
| Filling Range | 0.2–2ml |
| Filling Speed | Approx. 10–30 pcs/min (depends on cartridge size and liquid type) |
| Suitable Bottle Diameter | Greater than 2mm |
| Suitable Bottle Height | 5–100mm |
| Oil Storage Barrel Capacity | 300ml |
| Machine Size | Approx. 520 × 640 × 650mm |
| Machine Weight | Approx. 46kg |
| Package Size | Approx. 570 × 700 × 795mm |
| Package Weight | Approx. 68kg |
CUSTOMIZABLE BOTTLE JIGS
The machine includes 40 custom bottle jigs designed to hold and support multiple cartridges during filling.
STAINLESS STEEL LIQUID TANK
The 300 ml stainless steel tank stores liquid and is designed for convenient disassembly and cleaning.
TOUCHSCREEN CONTROL SYSTEM
The touchscreen provides access to working parameters, including filling speed and filling volume.
HIGH-PRECISION FILLING
The machine is designed for accurate small-volume liquid filling and consistent dispensing.
