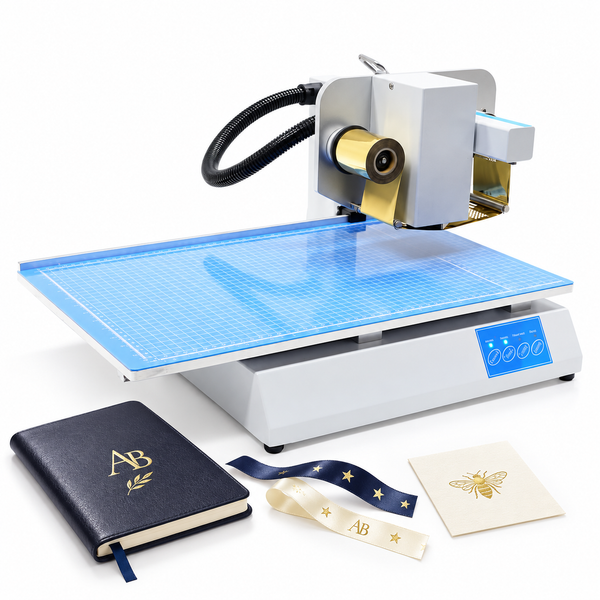

The ZONESUN ZS-8025 is a plate-free digital hot foil printer for logos, text and graphics on compatible flat materials such as leather, paper and ribbon. Prepare designs on a Windows computer and transfer them by USB, without making a separate brass stamping plate for each design.
Send your material photos, thickness and artwork dimensions for a suitability check.
Key Features
- Plate-free digital printing for logos, text, numbers and graphics
- 300 dpi ROHM printhead for clear foil transfer
- Adjustable text size and support for detailed designs
- Printing speed of 20–50 mm/s
- For foil customization of compatible flat menus, notebooks, cards, ribbons, labels and packaging materials
- Compact benchtop design with USB data transmission
Printing Demonstration
Technical Parameters
| Model | ZS-8025 |
|---|---|
| Printing Method | Plate-free digital hot foil printing |
| Data Transmission | USB |
| Maximum Printing Area | 57 × 250 mm |
| Maximum Material Thickness | 30 mm |
| Maximum Feeding Width | 450 mm |
| Printing Speed | 20–50 mm/s |
| Resolution | 300 dpi |
| Printhead Life | Up to 150,000 m |
| Compatible Operating System | Windows only |
| Rated Power | 150 W |
| Power Supply | AC 110–240 V, 50/60 Hz |
| Machine Size | 640 × 530 × 330 mm |
| Packing Size | 690 × 645 × 550 mm |
| Net / Gross Weight | 21 / 35 kg |
| Suitable Materials | Paper, PVC, PU, leather, adhesive paper, cardboard, fabric, plastic, ribbon and film |
The 20–50 mm/s specification is printing speed, not finished pieces per hour. Actual output also depends on artwork length, positioning and material handling. The listed printhead life is an upper figure; operating conditions and maintenance affect service life, and it should not be read as a warranty duration.
Before Ordering
- Material and foil: Suitability depends on surface texture, coating, flatness and the foil selected. Send a sample or material details for confirmation; the listed material categories do not guarantee compatibility with every formulation or finish.
- Computer setup: Windows only; macOS is not supported. Confirm your Windows version, driver requirements, accepted artwork formats and USB workflow with our team before ordering.
- Electrical setup: Select the 110V or 220V option for your supply and confirm the machine's rated voltage and plug type before shipment.
- Included items: Request the packing list and confirm software, cables, starter foil, compatible foil specifications and replacement consumables.
Frequently Asked Questions
Do I need a separate metal stamping plate?
No. This model uses plate-free digital hot foil printing, so each design does not require its own brass stamping plate.
Can it print a 450 mm wide logo?
The maximum printing area is 57 × 250 mm. The 450 mm specification refers to feeding width, not printing width.
Does it work with a Mac?
The supplied machine software supports Windows only and is not compatible with macOS. Confirm your Windows version before ordering.
Can it print on every leather or plastic surface?
Compatibility varies with surface finish, coating, material and foil. Send your material and design details for a suitability check or sample test.
Which foil should I buy?
Confirm the foil type and roll specifications for both this machine and your material. Ask our team about compatible consumables and what is included in your order.
Contact us with your material, artwork dimensions and computer setup.
Product Details
Ribbon Shaft
Holds the foil roll and supports stable alignment and feeding during printing.
Pressure Bar
Supports consistent contact between the printing assembly, foil and workpiece.
Adjustment Knob
Allows the printing-head position to be adjusted for materials of different thicknesses.
Flat Workbench
Provides a stable surface for positioning flat materials during foil printing.
Positioning Gauge
Helps align workpieces for more repeatable placement during batch work.
