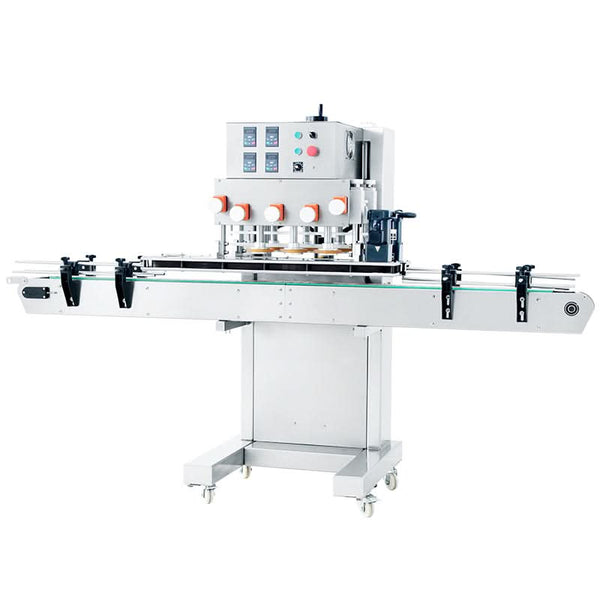

ZONESUN ZS-XG440B Pneumatic Automatic Bottle Screw Capping Machine
The ZONESUN ZS-XG440B is a high-speed pneumatic automatic screw capping machine delivering stable and adjustable performance for a wide range of bottle types. Equipped with an adaptable guiding device and rotary width control knob, it ensures consistent capping results with visual precision data for fine-tuning. Ideal for food, beverage, cosmetics, and pharmaceutical industries, this machine supports efficient, automated bottle sealing at 50–80 bottles per minute with reliable speed and accuracy.
Key Features

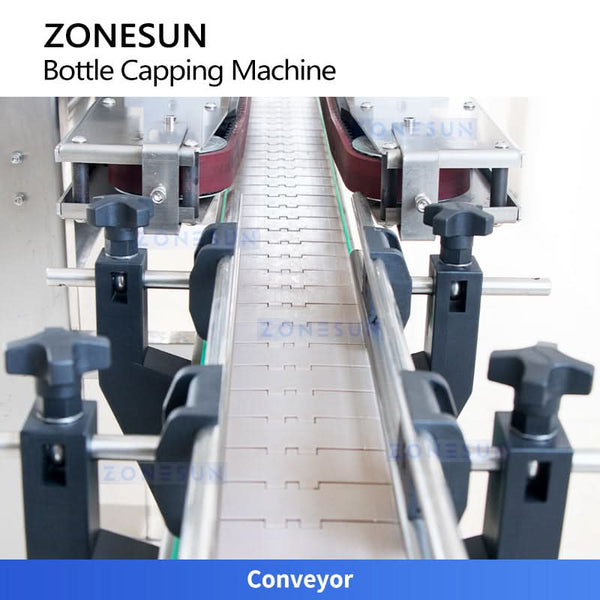

- Adaptable Guiding Device – Adjustable bottle guide rails accommodate a wide range of bottle diameters (23–100 mm) and heights (45–320 mm) for flexible production.

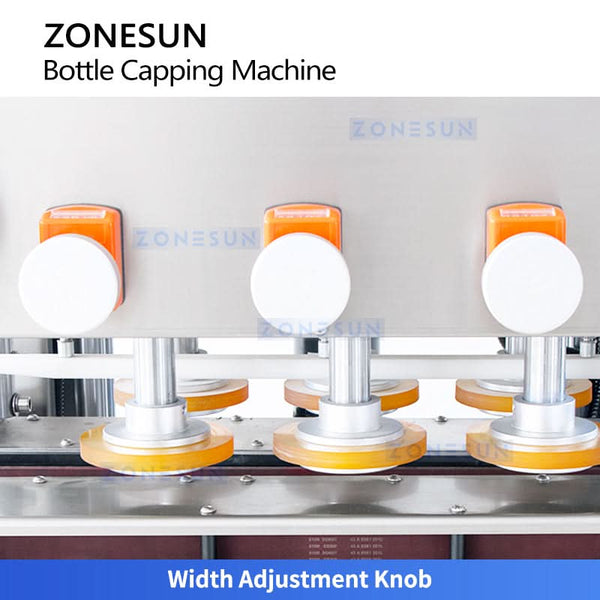

- Rotary Width Control Knob – Quick and precise adjustment of capping head width for different cap sizes (19–55 mm) without tools.

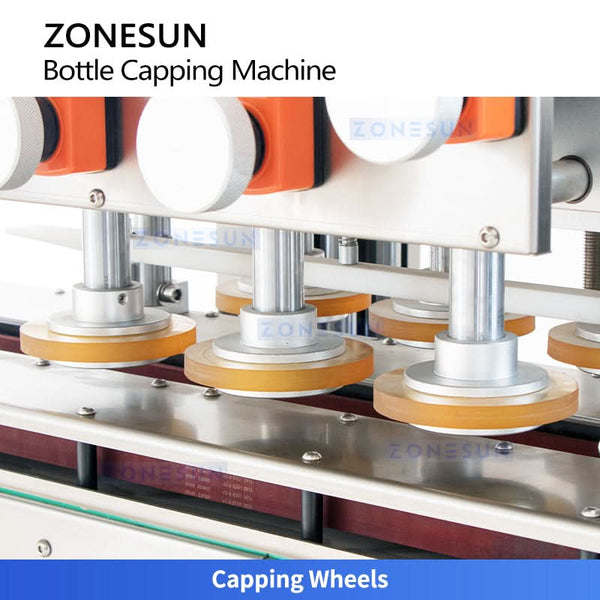

- Pneumatic Capping System – Air-driven capping mechanism delivers consistent torque (4–9 kgf·cm) for secure, uniform screw cap application.

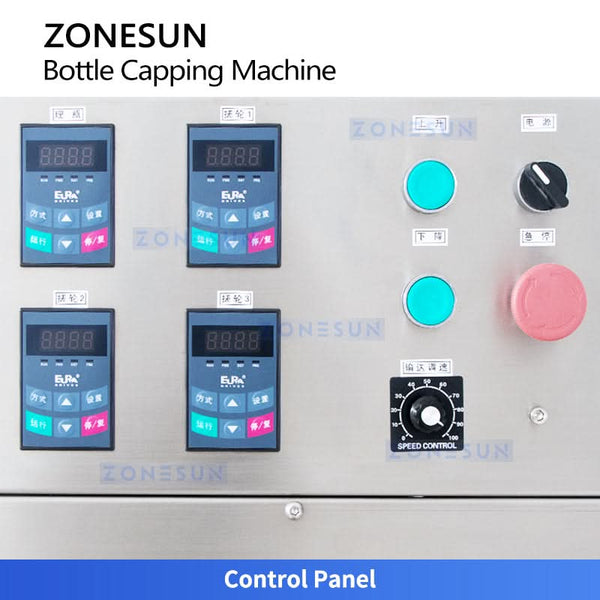

- Visual Precision Data Display – Real-time display of capping parameters for easy monitoring and fine-tuning during production.
- High-Speed Output – Operates at 50–80 bottles per minute for efficient medium-to-high speed production lines.
Benefits
- Wide Compatibility – Handles bottles from 23–100 mm diameter and caps from 19–55 mm (standard 55mm or customized size available).
- Consistent Torque – Pneumatic system ensures uniform capping torsion for leak-proof sealing.
- Easy Adjustment – Rotary knob and adjustable guides allow fast changeover between different bottle and cap sizes.
- Reliable Performance – Stable operation at 50–80 bottles/min with minimal downtime.
- Multi-Cap Type Support – Compatible with screw caps, pump caps, trigger pump heads, and flip-top closures.
Technical Specifications
| Model | ZS-XG440B |
|---|---|
| Voltage | 110V / 220V, 60Hz |
| Capping Speed | 50–80 bottles/min |
| Bottle Height | 45–320 mm |
| Bottle Diameter | 23–100 mm |
| Cap Diameter | 19–55 mm (standard 55mm or customized) |
| Capping Torsion | 4–9 kgf·cm |
| Air Pressure | 0.4–0.6 MPa |
| Max Power | 300 W |
Applications
Ideal for automatic screw capping of the following bottle and cap types:
- Food & beverage – sauce bottles, condiment jars, beverage bottles
- Cosmetics – lotion bottles, shampoo bottles, cream jars
- Pharmaceutical – medicine bottles, supplement containers, vials
- Daily chemical – detergent bottles, cleaning product containers
Compatible cap types: screw caps, pump caps, trigger pump heads, flip-top closures.
