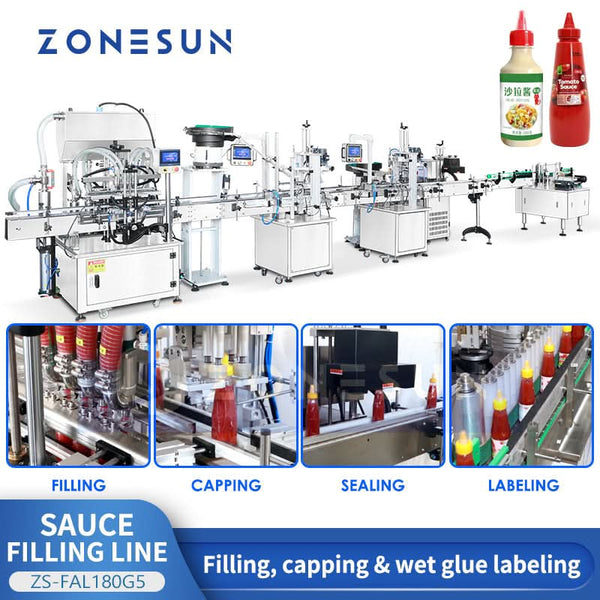

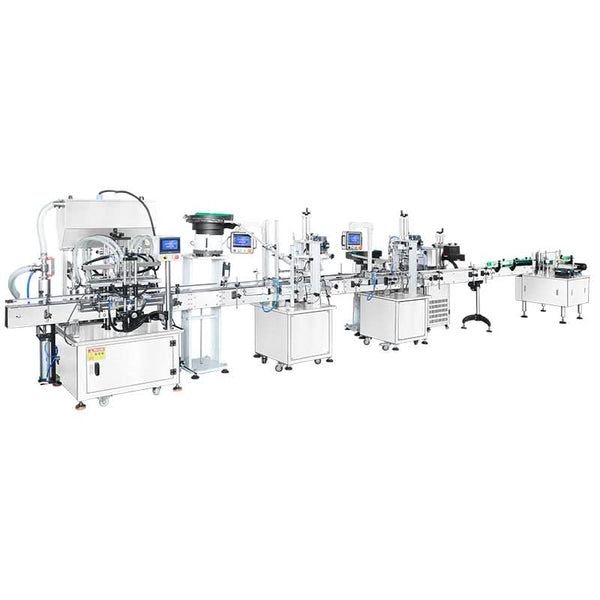

This sauce filling line includes servo filling, cap placing, capping (for leakproof lids and narrow nozzles), and wet glue labeling. The servo filling machine offers high precision and can be customized with mixing and heating. Ideal for ketchup, salad dressing, and seafood sauce packaging.
Servo Filling Machine
| Machine Model | ZS-YT4T-4PX |
|---|---|
| Voltage | 110/220V 50-60HZ 1KW |
| Filling range | 10-180 ml / 30-500 ml / 100-1000 ml |
| Working speed | About 30-50 bottles/min |
| Filling pump | Piston pump |
| Air pressure | 0.6-0.8 MPa |
| Filling accuracy | ±1% |
| Filling Nozzle | 4 (can be customized) |
| Machine size | About 2000*800*1800 mm |
| Machine weight | About 200 kg |
| Packaging size | About 2070*960*2010 mm (100-1000 ml) |
| Packaging weight | About 392 kg (100-1000 ml) |
Capping Machine (For Leakproof Caps)
| Machine Model | ZS-XG16V |
|---|---|
| Voltage | AC220V/110V 50-60HZ |
| Bottle height | 30-300 mm |
| Cap diameter | 18-70 mm |
| Bottle diameter | 20-160 mm |
| Working speed | 10-25 bottles/minute (based on cap size) |
| Working pressure | 0.4-0.6 MPa |
| Machine size | About 2000*1000*1750 mm |
| Machine weight | About 150 kg |
| Package size | About 2000*820*1760 mm |
Capping Machine (Narrow Noze)
| Machine Model | ZS-XG16E |
|---|---|
| Voltage | AC220V/110V 50-60HZ |
| Bottle height | 30-300 mm |
| Cap diameter | 18-70 mm |
| Bottle diameter | 20-160 mm |
| Working speed | 10-25 bottles/minute (based on cap size) |
| Working pressure | 0.4-0.6 MPa |
| Machine size | About 1930*740*1600 mm |
| Machine weight | About 150 kg |
| Package size | About 1970*990*1740 mm |
| Package weight | About 334 kg |
Sealing Machine
| Machine Model | ZS-FK6000 |
|---|---|
| Voltage | 220V 50Hz |
| Power | 3.6 kW |
| Sealing Speed | About 0-80 bottles/min |
| Sealing Diameter | 15-60 mm (Can be customized) |
| Sealing Height | 50-335 mm |
| Cooling Method | Water Cooling |
| Application | Suitable for normal bottles and sharp mouth bottles, plastic and glass bottles. Inapplicable for glass caps, metal bottles, or metal caps. |
| Machine Size | About 707*950*1510 mm(LWH) |
| Machine Weight | About 76 kg |
| Package Size | About 660*790*1430 mm |
| Package Weight | About 106 kg |
Wet Glue Labeling Machine
| Machine Model | ZS-WGTB01 |
|---|---|
| Power supply | 220V/380V 50Hz/60Hz |
| Installed Power | 2 KW |
| Bottle/Can Diameter | 50-100mm |
| Label Size | 50-300mm*50-140mm(W*H)(Can be customized for larger label size) |
| Production Speed | 1000-4000 BPH |
| Air Consumption | 4-6.5m³/min |
| Adhesive used | Resin Glue |
| Machine size | About 3050*960*1120 mm (LWH) |
| Package size | About 3160*1220*1500 mm (LWH) |
| Package weight | About 480 kg |

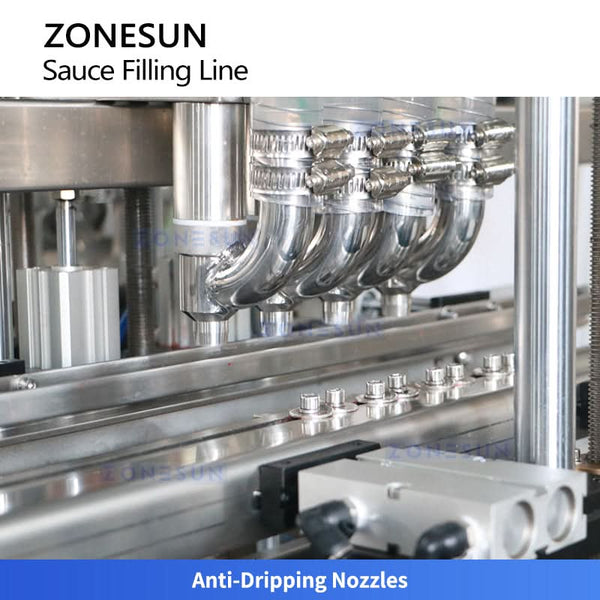

ANTI-DRIPPING NOZZLES
The quantity of filling nozzles is customizable.Anti-dripping design improves filling accuracy and prevents product waste.

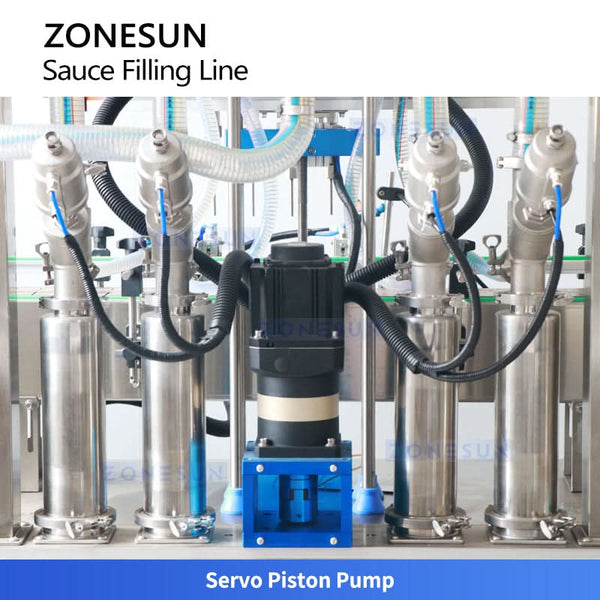

SERVO PISTON PUMP
Piston pump controls quantitative filling, set filling volume directly, feeding pump can supply filling material in time.
VIBRATORY BOWL SORTER
This is customized based on cap size, it can feed caps in time.
CAPPING STRUCTURE
This is customized based on cap size, it can position caps and tighten caps at the same time.

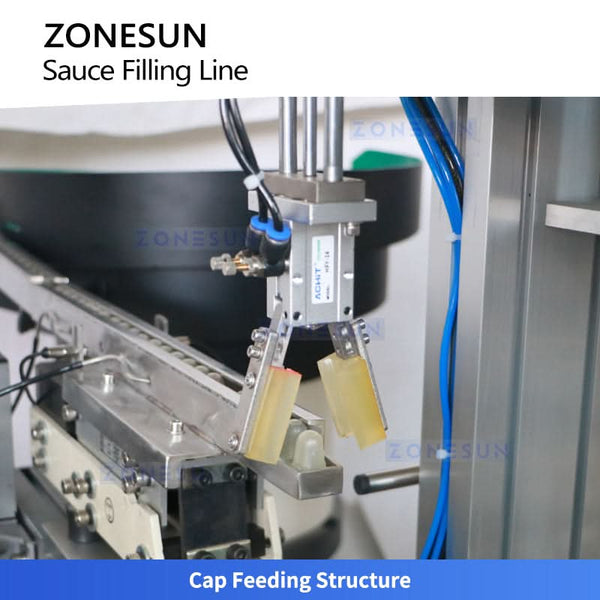

CAP FEEDING
This can imitate human hands to place lids,improving work accuracy.

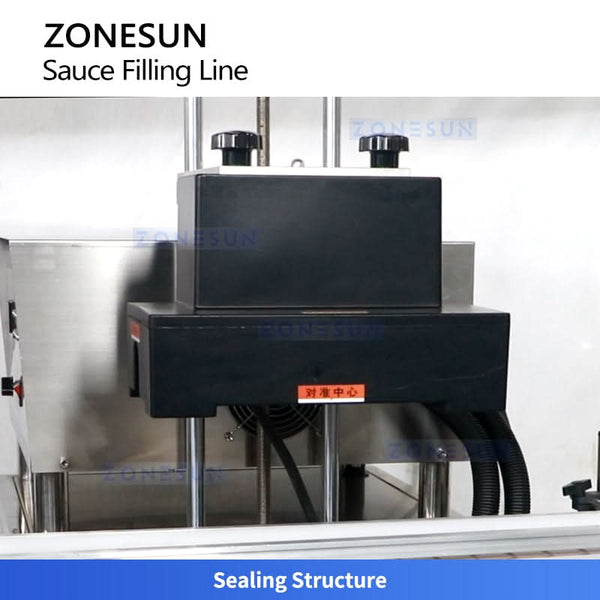

SEALING
Water-cooled induction sealing, it can dissipate heat effectively.

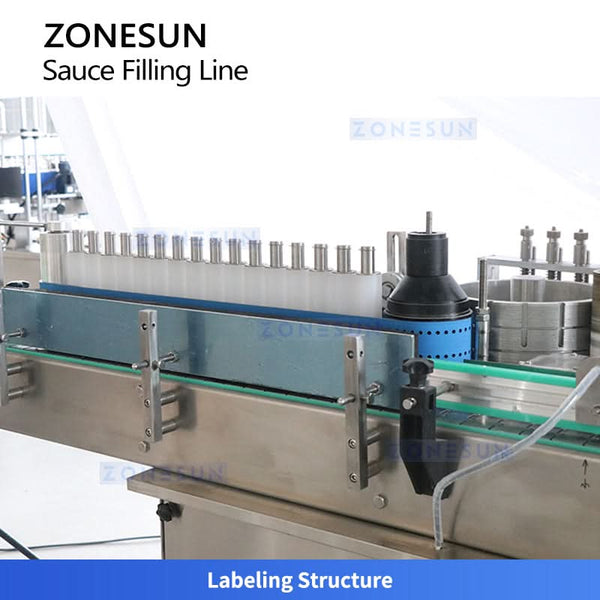

LABELING STRUCTURE
This labeling structure applies a thin layer of adhesive to the labels, picks up glued label and transfers it to the bottle surface.
