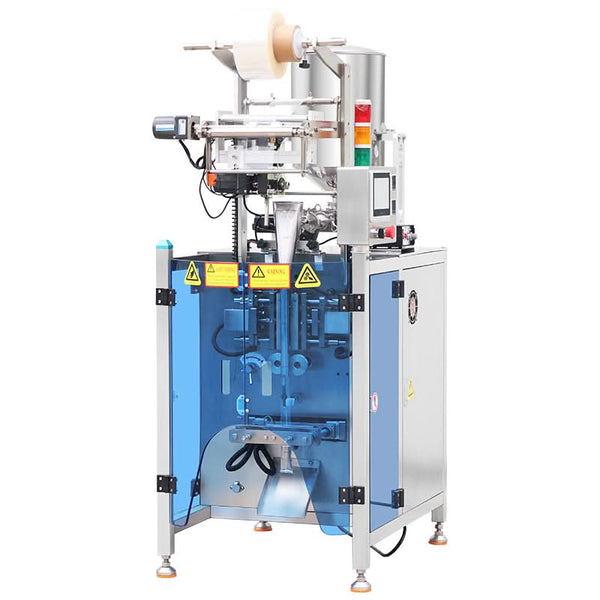

The ZS-FP220 is a vertical form-fill-seal (VFFS) machine engineered for precise filling and sealing of paste or liquid products. Featuring a servo-driven rotor pump, it delivers accurate dosing and consistent performance. Its motor-powered sealing system eliminates the need for compressed air, reducing maintenance and simplifying operation. With high-speed output and customizable sealing options, this machine is ideal for food, cosmetics, and chemical packaging. ZONESUN ensures reliability and efficiency in every bag.
Parameter
Machine Model ZS-FP220
Voltage 110/220V, 50–60Hz, 2KW
Filling Range 1–10 ml (Customizable)
Sealing Type Back sealed (Customizable)
Filling Pump Servo motor driven rotor pump
Capacity 60–130 bags/min
Hopper Size 30 L
Bagging Size 20–145 mm (L) × 20–110 mm (W)
Packaging Size Approx. 1070 × 780 × 1740 mm
Packaging Weight Approx. 336 kg

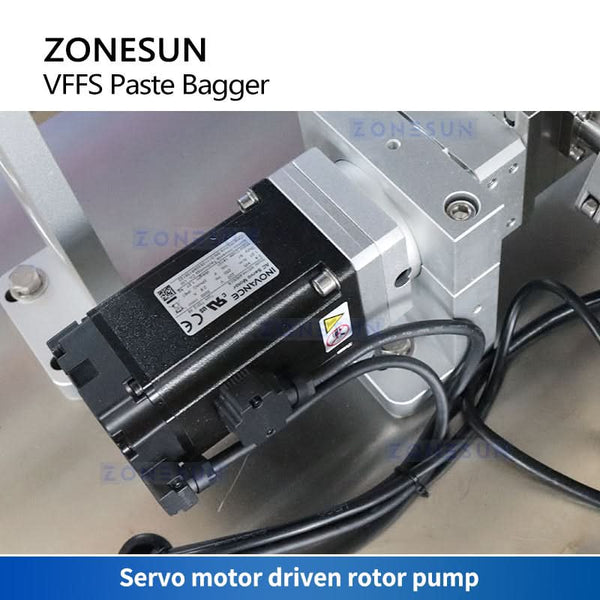

SERVO FILLING SYSTEM
The servo-driven rotor pump provides precise control of the filling volume for accurate dosing.

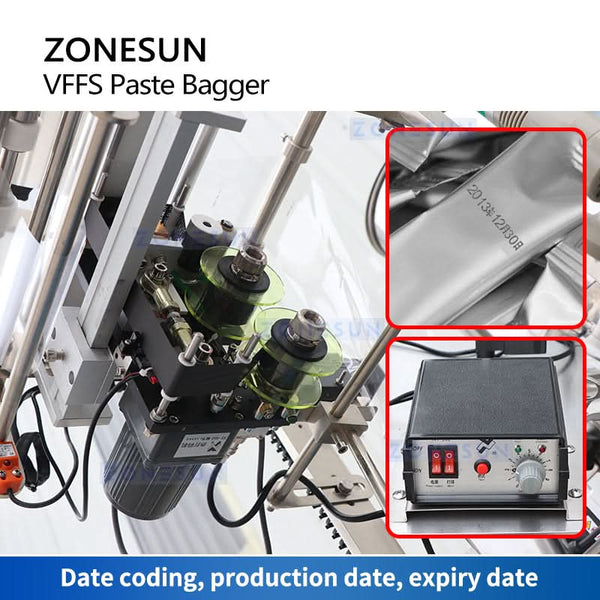

DATE CODING
The coding unit prints production dates, lot numbers, and expiration-date information on the packaging film.

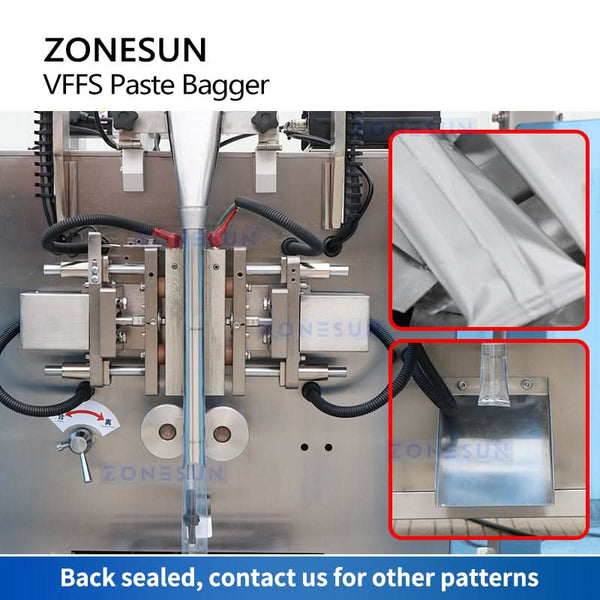

BACK-SEALING SYSTEM
The back-sealing system uses adjustable temperature control. Contact us for other sealing patterns.

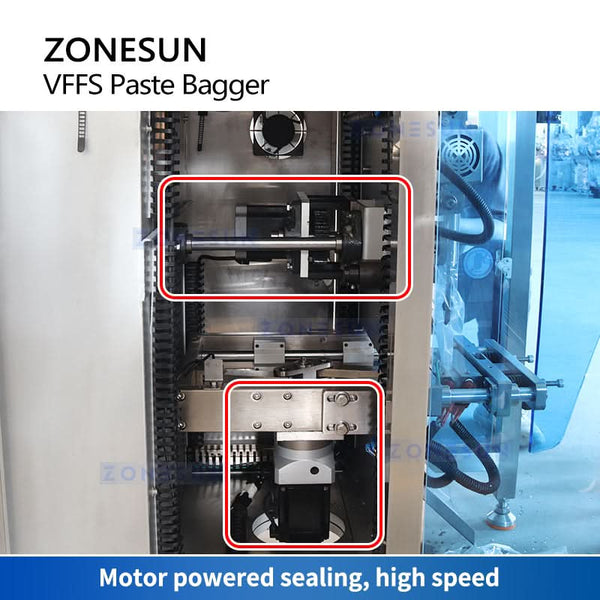

MOTOR-DRIVEN SEALING
The sealing mechanism is motor-driven and does not require an air supply, making operation more convenient while reducing maintenance costs.

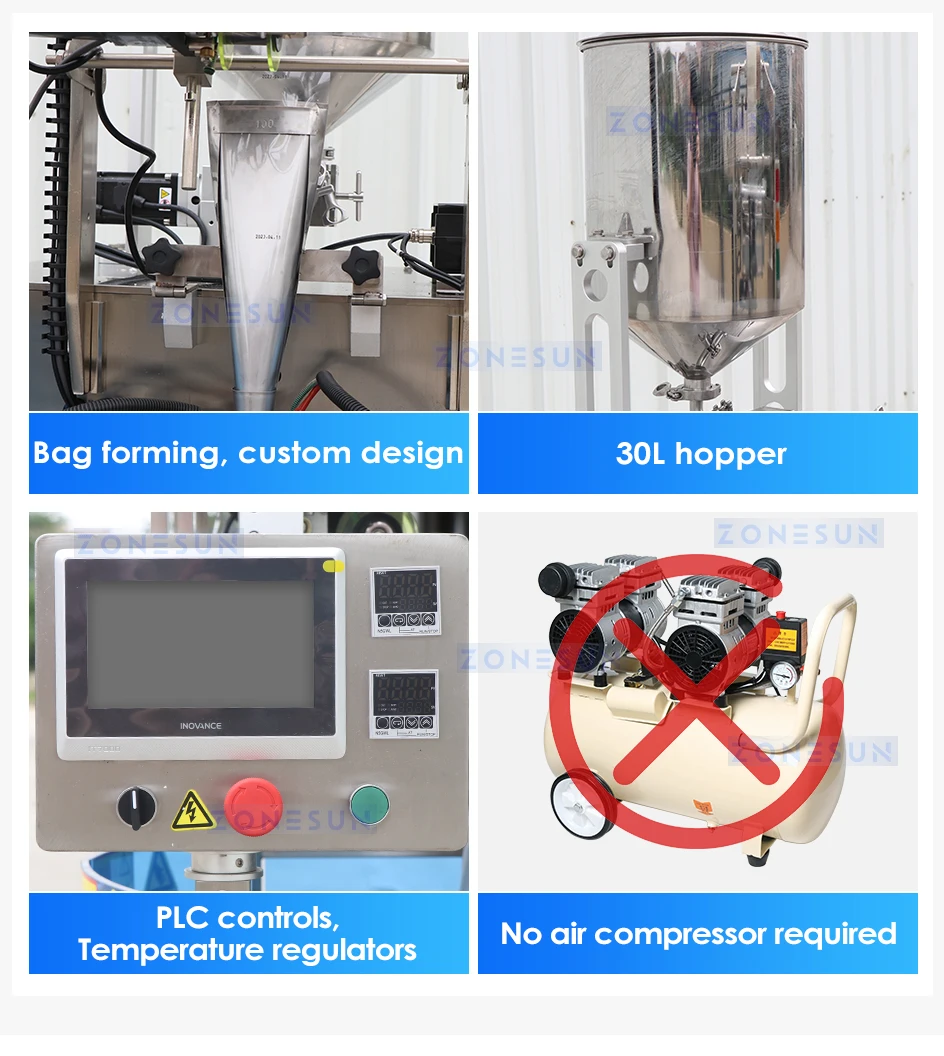

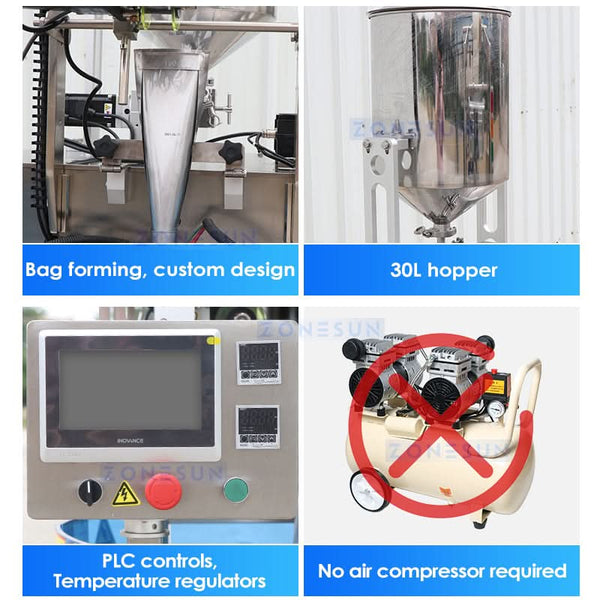

CUSTOM BAG FORMING
The bag-forming structure can be customized to the required package design.
30 L HOPPER
The machine is equipped with a 30 L product hopper.
PLC AND TEMPERATURE CONTROL
PLC control and temperature regulators provide centralized adjustment of the packaging process.
NO AIR COMPRESSOR REQUIRED
The machine operates without an air compressor.
