ZONESUN ZS-KCS5 Manual Cup Sealing Machine with Custom Molds

Prix
$300.00

Please check your cart or click "Buy It Now" to view shipping costs

Shipping Information

Shipping methods and costs vary by machine, package size, destination, and delivery method. Available options may include express delivery, air freight, sea freight, or logistics services.

To view the available shipping options and estimated cost, add the product to your cart and enter your delivery address at checkout.

We can help coordinate shipping and customs clearance for eligible destinations. Please contact us before ordering to confirm availability, delivery arrangements, and applicable charges.

For large machines, customized equipment, or complete production lines, please contact us before ordering so we can confirm the shipping method, packing requirements, freight cost, and estimated delivery time.

Import duties, customs clearance fees, local taxes, and other destination charges may apply.

Voltage:220V

Description

The ZONESUN ZS-KCS5 Manual Cup Sealing Machine is designed for heat sealing compatible plastic cups, paper cups, food containers, and beverage cups with plastic or aluminum sealing films. It provides a production capacity of 800–1000 cups/hour and combines adjustable sealing temperature and time, interchangeable custom cup molds, a rotary indexing mechanism, and a spring-buffered platform for stable sealing.

Cup Size & Mold Requirement: Custom molds can be made for cup diameters below 150 mm. Each cup size requires its own dedicated mold. To seal a different cup size, replace the mold with one made for that size.

Features

  • Adjustable temperature and time: Set the sealing temperature and heating time for different compatible cups and sealing materials.
  • Interchangeable custom molds: Cup holders can be customized for cup diameters below 150 mm. Each cup size requires a dedicated matching mold.
  • Manual operation: The lever controls the sealing head directly without a complex automatic control system.
  • Rotary indexing mechanism: Moves cup holders between loading and sealing positions for convenient operation.
  • Spring-buffered platform: Helps distribute sealing pressure evenly and accommodate minor container-height variations.

Specifications

Parameter Specification
Model ZS-KCS5
Power Supply AC 220 V / 50 Hz
Power 800 W
Production Capacity 800–1000 cups/hour
Sealing Temperature 0–300°C, adjustable
Sealing Time 0–10 s, adjustable
Machine Size 520 × 370 × 680 mm
Weight About 35 kg
Cup Diameter Below 150 mm, with a custom matching mold
Mold Requirement One dedicated mold per cup size; change the mold when changing cup sizes

Applications

Suitable for compatible cup-packed products such as yogurt, sauces, beverages, condiments, coffee creamer, cosmetic products, and other products sealed with plastic or aluminum films.

Manual cup sealing machine with custom molds
Cup sealing applications
ZS-KCS5 technical specifications
ZS-KCS5 machine components
Adjustable temperature and sealing time controls

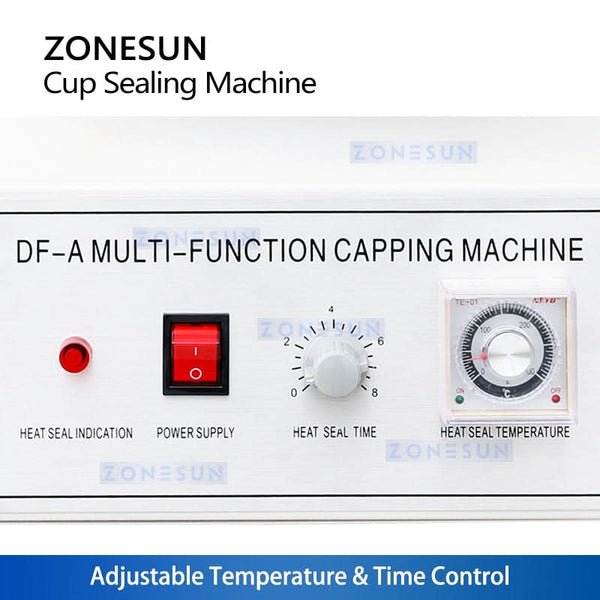

Adjustable Temperature & Time Control

Allows the sealing temperature and heating time to be independently adjusted according to different cup and film materials, helping maintain consistent sealing quality.

Interchangeable cup holding molds

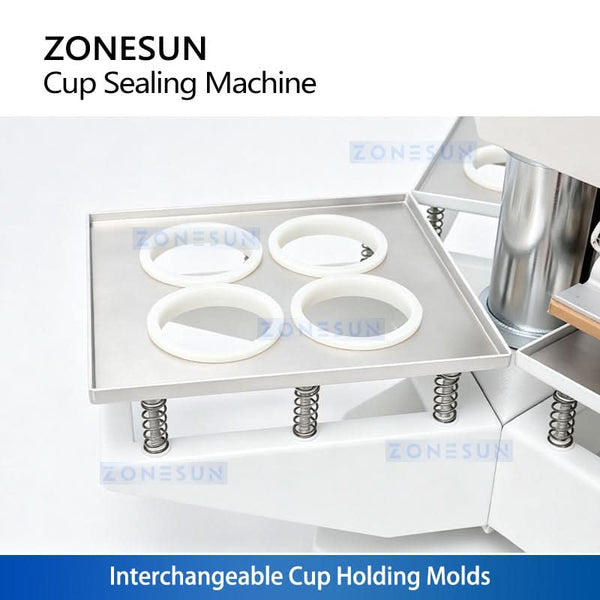

Interchangeable Cup Holding Molds

The cup holders can be customized for cup diameters below 150 mm. Each cup size requires its own dedicated mold; a different cup size requires a corresponding replacement mold.

Manual operation handle

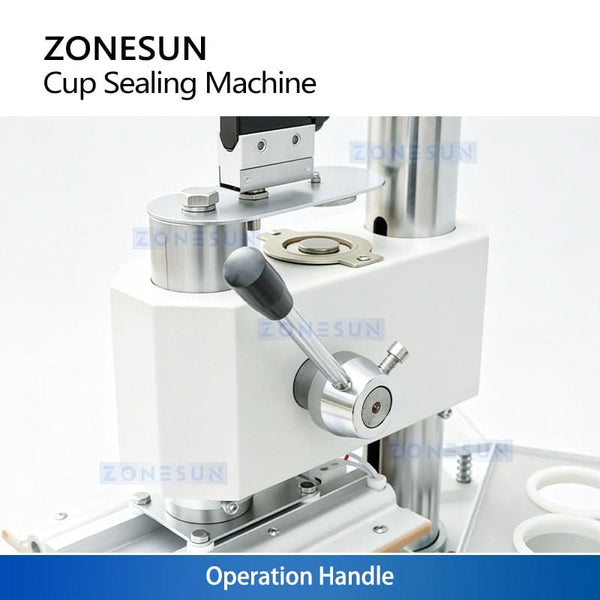

Operation Handle

The manual lever provides direct control of the sealing head, allowing the operator to apply sealing pressure during each cycle.

Cup sealing heating plate

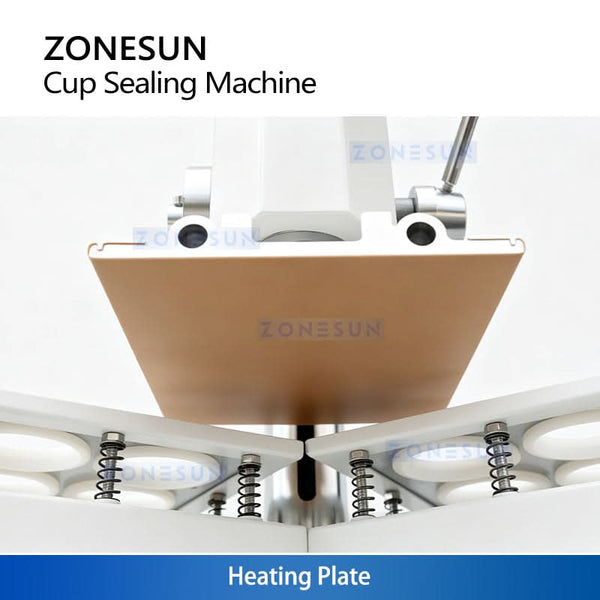

Heating Plate

Provides controlled and uniform heat across the sealing surface to bond the sealing film around the cup rim.

Spring-buffered sealing platform

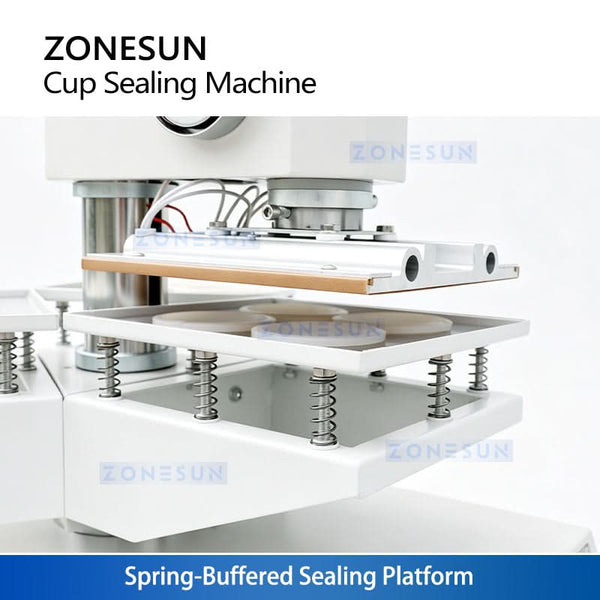

Spring-Buffered Sealing Platform

The spring-supported platform helps distribute sealing pressure evenly and accommodates minor container-height variations for stable sealing.

Rotary cup holder indexing mechanism

Rotary Indexing Mechanism

Rotates the cup holders between loading and sealing positions for convenient operation and improved working efficiency.

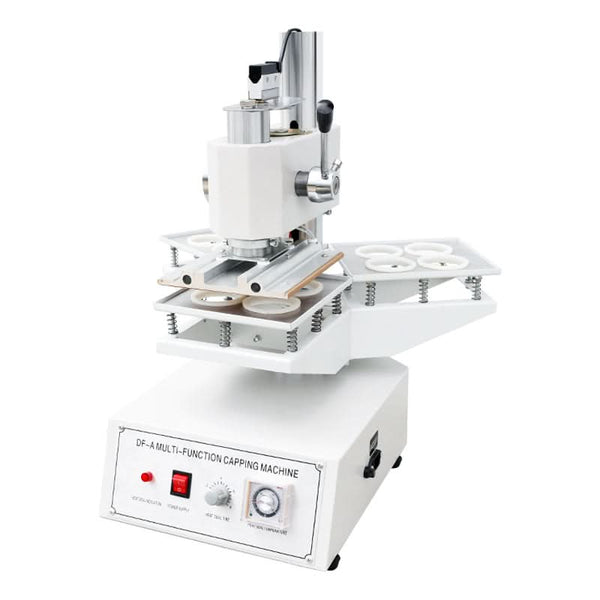

ZONESUN ZS-KCS5 manual cup sealing machine product display
ZONESUN ZS-KCS5 manual cup sealing machine with custom molds
