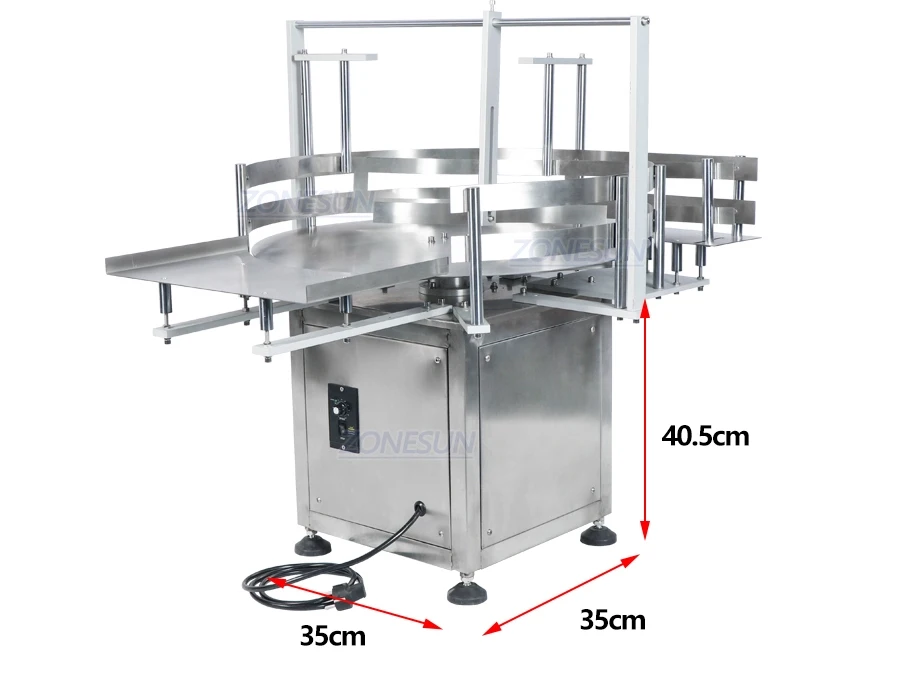

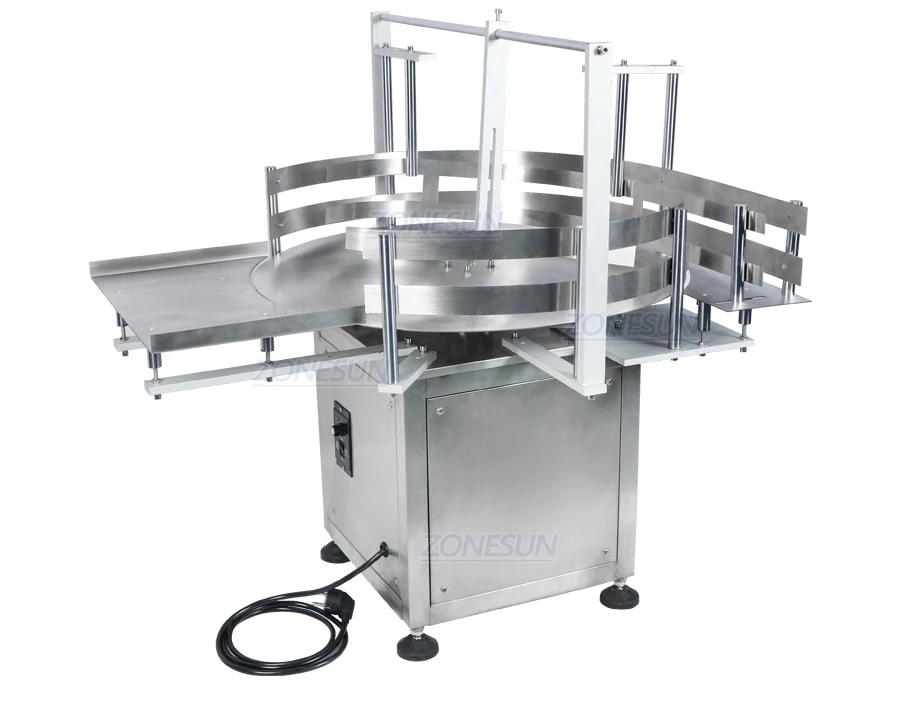

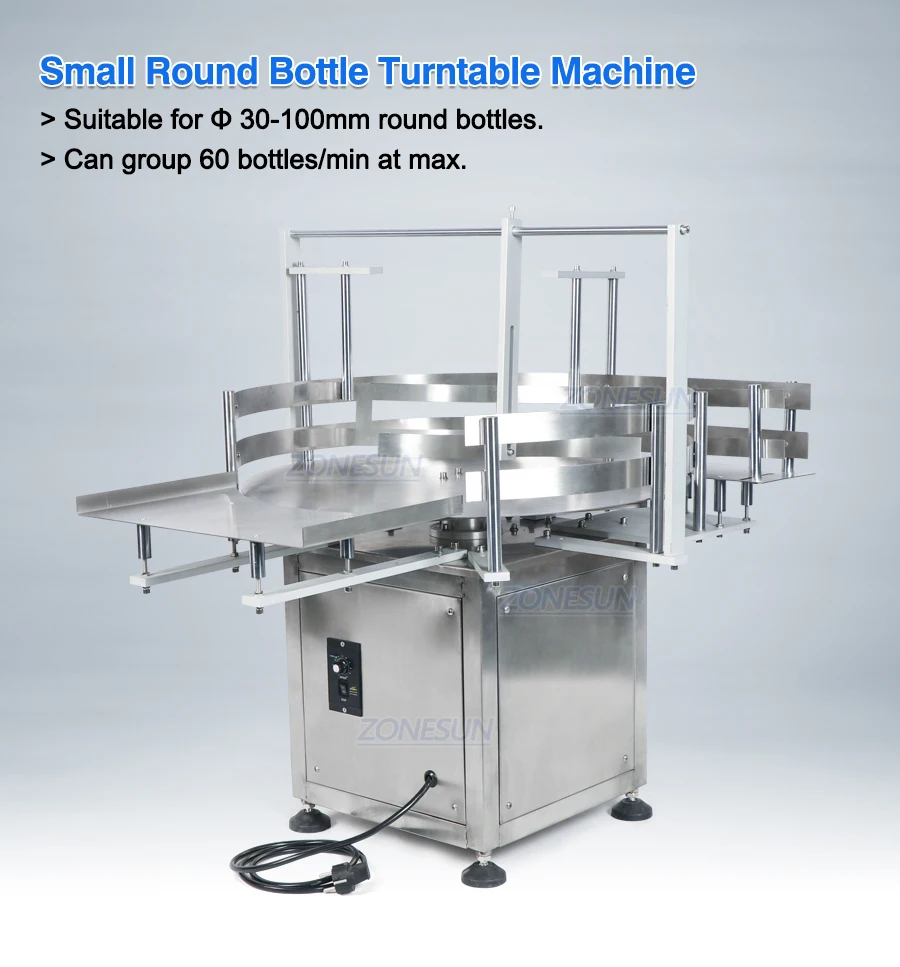

The ZONESUN ZS-LP600Z is a compact rotary bottle feeding turntable designed to arrange, buffer and feed upright round bottles into filling, capping or labeling equipment. It is suitable for compact packaging lines in cosmetic, pharmaceutical, food and beverage production.
Important: Bottles must be placed upright on the turntable. This machine does not orient bottles that are lying down.
Key Features
- Feeds upright round bottles continuously into downstream packaging equipment
- 40–60 bottles/min working speed, depending on bottle size and line conditions
- Suitable for bottles measuring 30–80 mm in diameter and up to 250 mm high
- 600 mm rotary turntable for compact production lines
- Adjustable operating speed for matching downstream equipment
- Adjustable inlet and outlet positions for different bottle sizes
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-LP600Z |
| Turntable Diameter | 600 mm |
| Suitable Bottle Diameter | 30–80 mm |
| Suitable Bottle Height | ≤250 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) |
| Motor Power | 40 W |
| Power Supply | 110V or 220V |
| Net Weight | Approx. 27.5 kg |
| Package Size | Approx. 790 × 690 × 670 mm |
| Gross Weight | Approx. 45 kg |
- Adjustable speed helps coordinate bottle flow with downstream equipment.
- The inlet and outlet positions can be adjusted for different upright bottle sizes.
