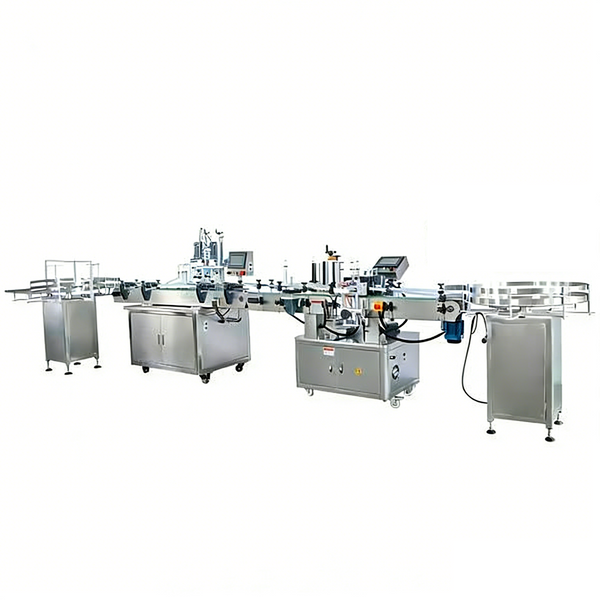

The ZONESUN ZS-FAL180A8 is a high-efficiency automatic production line designed for filling, capping, and labeling round bottles. Ideal for low-viscosity liquids like perfume, juice, and cosmetics, it integrates unscrambling, magnetic pump filling, precision capping, and single or double-sided labeling. With PLC control and customizable configuration, this line is perfect for pharmaceutical, chemical, and personal care manufacturing.
Bottle Turntable
| Parameter | ZS-LP800Z | ZS-LP1000Z |
|---|---|---|
| Turntable Diameter | 800 mm | 1000 mm |
| Suitable Bottle Diameter | 20–100 mm | 20–100 mm |
| Suitable Bottle Height | 30–120 mm | 30–120 mm |
| Working Speed | 40–60 bottles/min (depends on bottle size) | 40–60 bottles/min (depends on bottle size) |
| Power Supply | 220V/110V, 50–60Hz, 50W | 220V/110V, 50–60Hz, 50W |
| Package Size | Approx. 1150 × 1000 × 1320 mm | Approx. 1350 × 1315 × 1235 mm |
| Net Weight / Gross Weight | Approx. 50 kg / 65 kg | Approx. 135 kg / 180 kg |
Machine Model ZS-AFC1 filling machine
Power Supply AC220V / 110V, 50–60Hz
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle, and caps)
Maximum Power 300 W
Air Pressure 0.4–0.6 MPa
Capping Torque 4–9 kgf·cm
Conveyor Dimensions Approx. 2000 × 100 mm (L × W)
Machine Dimensions Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Package Dimensions Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
Model ZS-TB260 Labeling Machine
Power Supply AC220V 50Hz/60Hz, 1500W
Labeling Capacity 25–50 pcs/min (varies by bottle size)
Labeling Accuracy ±1.0 mm
Suitable Bottle Diameter φ30–100 mm
Label Size Length: 15–200 mm, Height: 15–150 mm
Roll Inner Diameter φ76 mm
Roll Outer Diameter φ350 mm
Conveyor Dimensions 1950 × 100 mm (L × W)
Machine Dimensions Approx. 2000 × 1400 × 1300 mm
Packing Dimensions Approx. 2120 × 940 × 1500 mm
Net Weight / Gross Weight Approx. 226 kg / 290 kg
FOUR-WHEEL CAPPING
Four rubber wheels tighten screw caps on containers such as dropper and spray bottles.
CUSTOM VIBRATORY CAP SORTER
The vibratory bowl arranges caps before capping to reduce manual handling. It is customized to match the cap size.
CUSTOM ROTARY PLATE
The rotary plate holds and transfers bottles during operation. It is customized to match the bottle size.
ROUND-BOTTLE LABELING
The labeling system supports single- or double-sided label application on round bottles.
