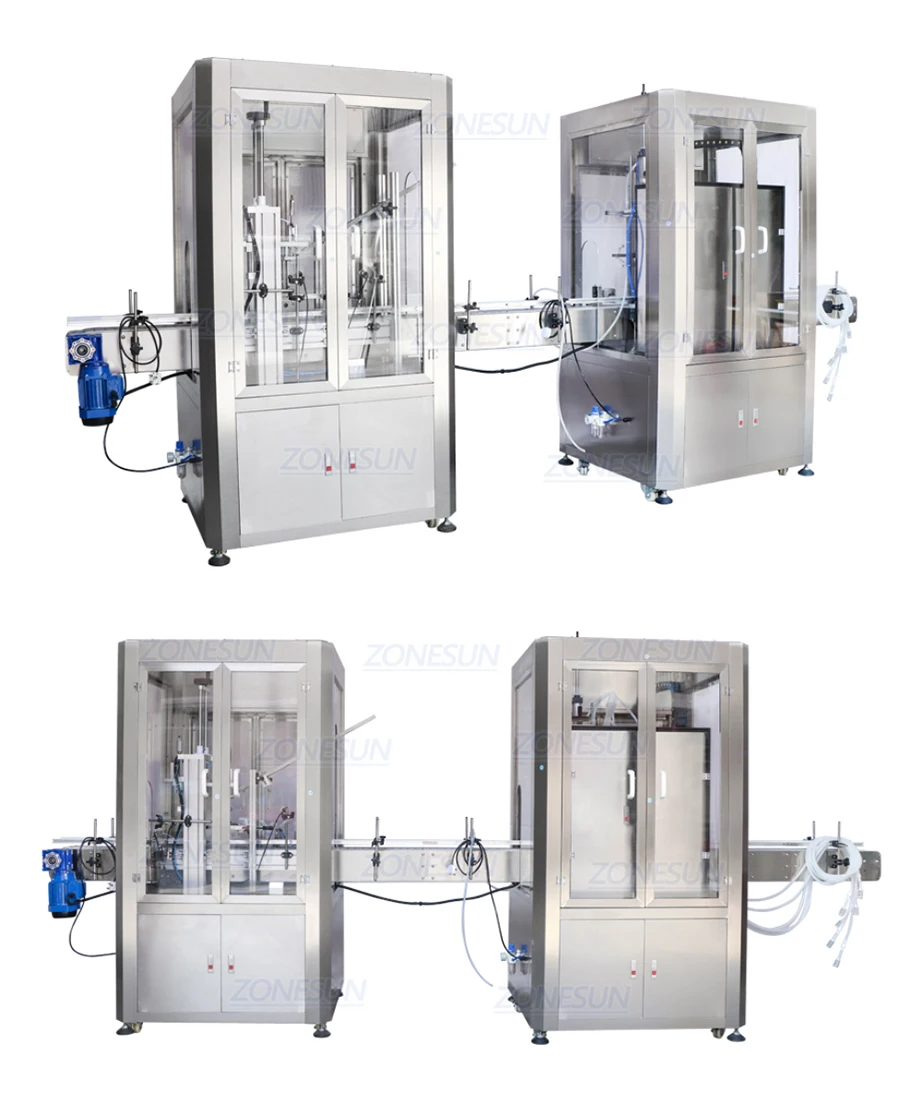

This automated production line combines liquid filling and cork pressing into one efficient system. Equipped with a dust cover to maintain hygiene and product quality, it streamlines the bottling process for red wine and similar liquids. Customizable to suit various bottle types and cork sizes, it’s ideal for use in beverage, cosmetic, and pharmaceutical industries. Optional integration with labeling machines enables full automation.
| Parameter | Specification |
|---|---|
| Machine Model | ZS-VTMP80D Filling Machine |
| Container Size | φ20–100 mm, Height: 30–300 mm |
| Max Flow Rate | 5500 ml/min / 7500 ml/min / 12000 ml/min (model variants available) |
| Pump Material | 304 Stainless Steel / 316 Stainless Steel |
| Filling Accuracy | ≤100 ml: deviation ≤±1 ml<br>>100 ml: deviation ≤±1% (based on water) |
| Filling Speed | 20–70 pcs/min (depends on bottle and liquid type) |
| Power Supply | 220V-50Hz / 110V-60Hz |
| Machine Power | 2000 W |
| Air Compressor Connector Size | OD8 mm |
| Machine Weight | Approx. 285 kg |
| Machine Dimensions | Approx. 1000 × 900 × 1860 mm |
| Packing Weight | Approx. 390 kg |
| Packing Dimensions | Approx. 1970 × 1020 × 2050 mm |
Parameter Specification
Machine Model ZS-XG16D Capping Machine
Bottle Height 30–300 mm
Cap Diameter 18–70 mm
Bottle Diameter 20–160 mm
Working Voltage AC220V/110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Working Speed 20–60 bottles/min (varies by bottle and cap size/shape)
Machine Dimensions Approx. 1000 × 900 × 1860 mm
Packing Size Approx. 1970 × 1020 × 2030 mm
Net Weight / Gross Weight Approx. 243 kg / 350 kg
