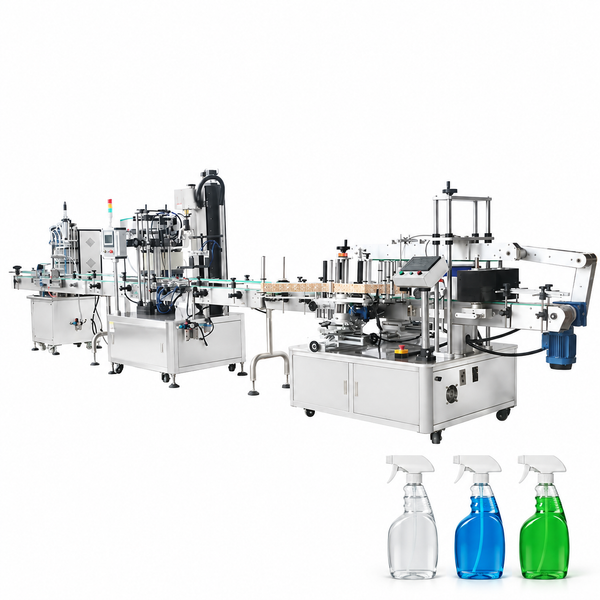

The ZONESUN ZS-MPCL1 is a fully automatic packaging line designed for trigger bottles, combining magnetic pump filling, servo-driven capping, and high-speed labeling in one streamlined system. Ideal for liquid products such as cleaners, disinfectants, and cosmetics, this line ensures precise filling, secure capping, and accurate labeling. Built with durable stainless steel and engineered for efficiency, it’s the perfect solution for scaling up your production with minimal manual intervention.
Parameter
| Machine Model | ZS-VTMP80C Filling Machine |
|---|---|
| Container Size | φ20–160mm, H30–300mm |
| Max Flow Rate | 6000ml/min / 7500ml/min / 12000ml/min |
| Pump Material | 316 Stainless Steel |
| Filling Accuracy ≤±1% (based on water) | |
| Filling Speed | 20–50 pcs/min / 25–60 pcs/min / 40–65 pcs/min |
| Power Supply | 220V-50Hz / 110V-60Hz |
| Total Machine Power | 2000W |
| Air Compressor Connector OD | 8mm |
| Packing Size | About 2000 × 820 × 1580 mm |
| Packing Weight | About 150 kg |
| Machine Model | ZS-XG445 Capping Machine |
|---|---|
| Voltage | 110V / 220V |
| Power | 900W |
| Capacity | 5–25 bottles/min (depends on bottle/cap size) |
| Material | 304 SUS Stainless Steel |
| Air Pressure | 0.6–0.8 Mpa |
| Suitable Bottles | Customized based on sample |
| Cap Feeding Method Pneumatic fetch | |
| Capping Method Servo drive screw capping | |
| Machine Size | About 2900 × 950 × 2000 mm |
| Packaging Size Machine: | 3020 × 905 × 2140 mm |
| Vibratory Bowl Sorter: | 1870 × 1220 × 840 mm |
| Packaging Weight Machine: | About 600 kg |
| Vibratory Bowl Sorter: | About 316 kg |
| Machine Model | ZS-TB300A / ZS-TB300B Labeling Machine |
|---|---|
| Labeling Capacity | 60–350 pcs/min (depends on bottle size) |
| Labeling Material Thickness | 20–120 mm |
| Labeling Material Height | 30–350 mm |
| Label Size (L)25–300 mm, (H)15–200 mm | |
| Round Bottle Labeling | ZS-TB300A: Single Side |
| ZS-TB300B | Single & Double Side |
| Flat Bottle Labeling | ZS-TB300B: Double Side |
| Roll Inner Diameter | Φ76 mm |
| Roll Outer Diameter | Φ350 mm |
| Machine Size | About 2120 × 940 × 1500 mm |
| Power Supply | AC220V 50Hz/60Hz, 1500W |
| Packing Size | About 2850 × 1300 × 1900 mm |
| Net/Gross Weight | About 450 kg / 650 kg |
PLC CONTROLS
PLC controls provide centralized machine operation.
MAGNETIC PUMPS
Magnetic pumps control the liquid-filling process.
DIVING NOZZLES
The diving filling nozzles feature an anti-drip design.
MOVABLE CONTROL PANEL
The movable control panel can be positioned for convenient operation.
VIBRATORY BOWL
The vibratory bowl automatically organizes and feeds caps.
SERVO-DRIVEN GRIPPER
The servo-driven gripper handles caps during the capping process.
CYLINDRICAL BOTTLES
The labeling unit supports labeling on cylindrical bottles.
SINGLE OR DOUBLE LABELS
The machine can be configured to apply either a single label or both front and back labels.
BOTTLE SEPARATOR
The bottle separator spaces containers before labeling.
FLAT BOTTLES
The labeling unit supports double-sided labeling on flat bottles.
