Zonesun ZS-MS3TPF Mask Sheet Folding and Bagging Machine Turnkey Sachet Filling Sealing Solution

Description

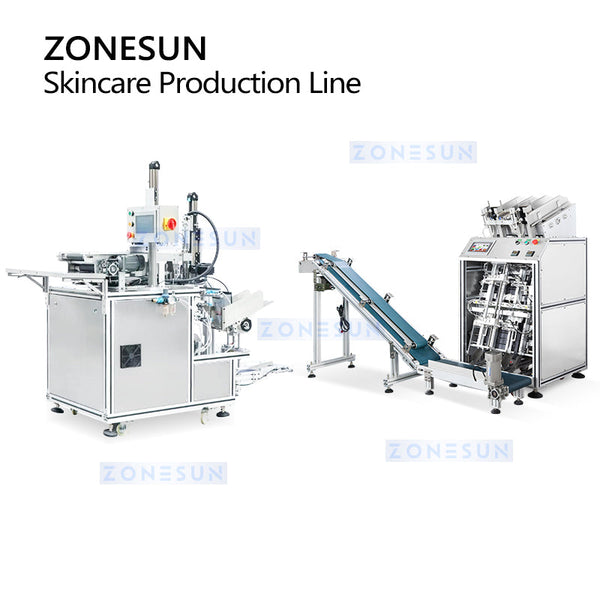

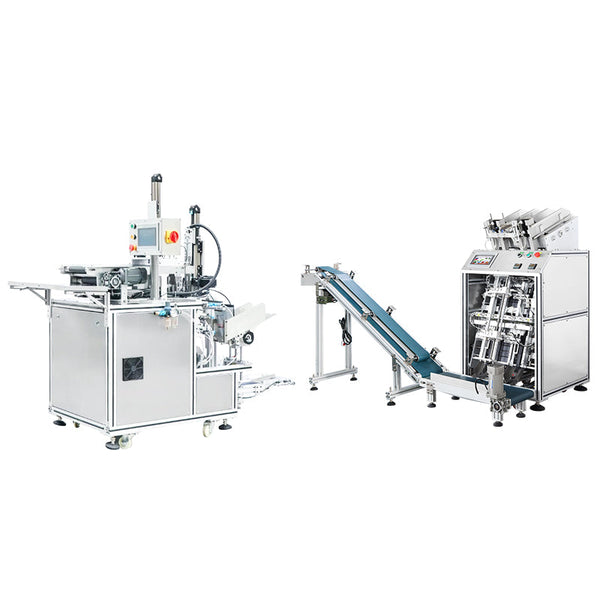

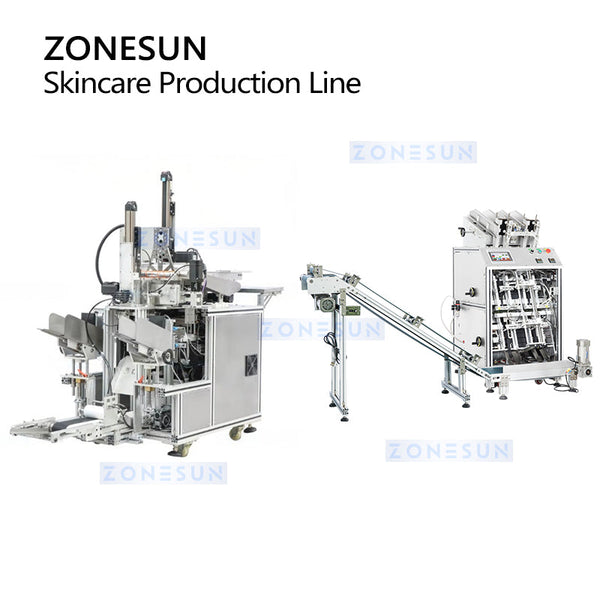

The ZONESUN ZS‑MS3TPF Automatic Skincare Production Line integrates two independent machines Facial Mask Folding & Packing Machine and the Essence Filling & Sealing Machine — to provide an efficient solution for cosmetic manufacturing. The folding unit handles 3‑fold or 4‑fold formats at 3600–4200 pcs/h, while the filling unit dispenses essence with ±0.3 g accuracy, seals, codes, and conveys bags at 1800–2880 pcs/h. Operating independently yet aligned, they form a complete line covering folding, filling, and sealing with precision and consistency.

ZS-MS1TZD

• Voltage: 110/220V, 50–60 Hz
• Power Consumption: About 1500 W
• Working Speed: About 3600–4200 pieces/hour
• Suitable Bag Size:
  • 3-folded: 150–220 mm × 115–165 mm (L×W)
  • 4-folded: 150–220 mm × 95–165 mm (L×W)
• Air Pressure Requirement: ≥0.6 MPa, 80 L/min
• Machine Dimensions (L×W×H): About 1600 × 700 × 1550 mm
• Machine Weight: About 100 kg

ZS-MS2TGF

• Voltage: 220V, 50–60 Hz
• Power Consumption: About 1 kW
• Working Speed: 1800–2880 pieces/hour
• Bagging Size (L×W): 130–230 mm × 80–160 mm
• Filling Range: 1–50 g
• Pump Type: Magnetic pump
• Filling Rate: 5 L/min
• Filling Accuracy: ±0.3 g
• Air Pressure Requirement: 0.6–0.8 MPa
• Air Consumption: 150 L/h
• Air Inlet Diameter: 12 mm
• Machine Dimensions (L×W×H): About 700 × 800 × 1450 mm
• Machine Weight: About 120 kg

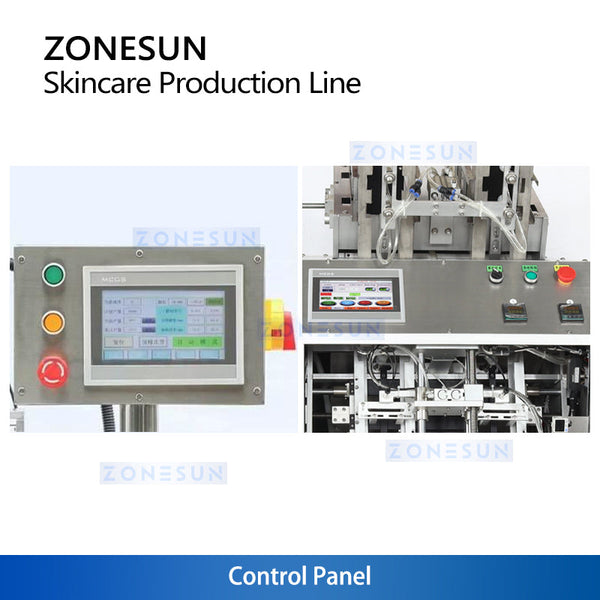

CONTROL PANEL
Controls folding and filling through a touchscreen and buttons, allowing parameter setting, output monitoring, alarms, and emergency stop.

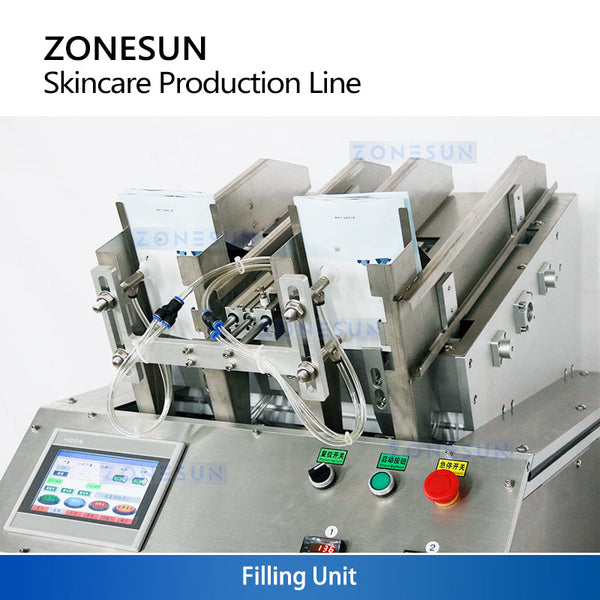

FILLING UNIT
Dispenses essence into pouches with precise volume control for clean, splash-free filling and stable output.

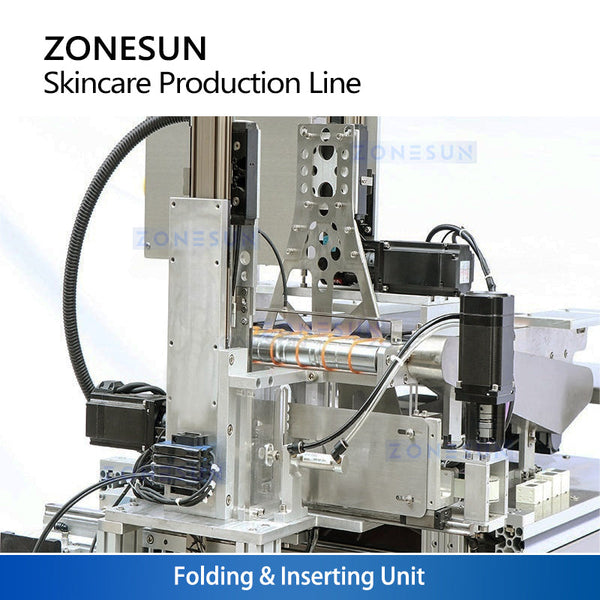

FOLDING & INSERTING UNIT
Folds facial masks and inserts them into pouches with precise alignment and smooth movement for clean, consistent packaging.
