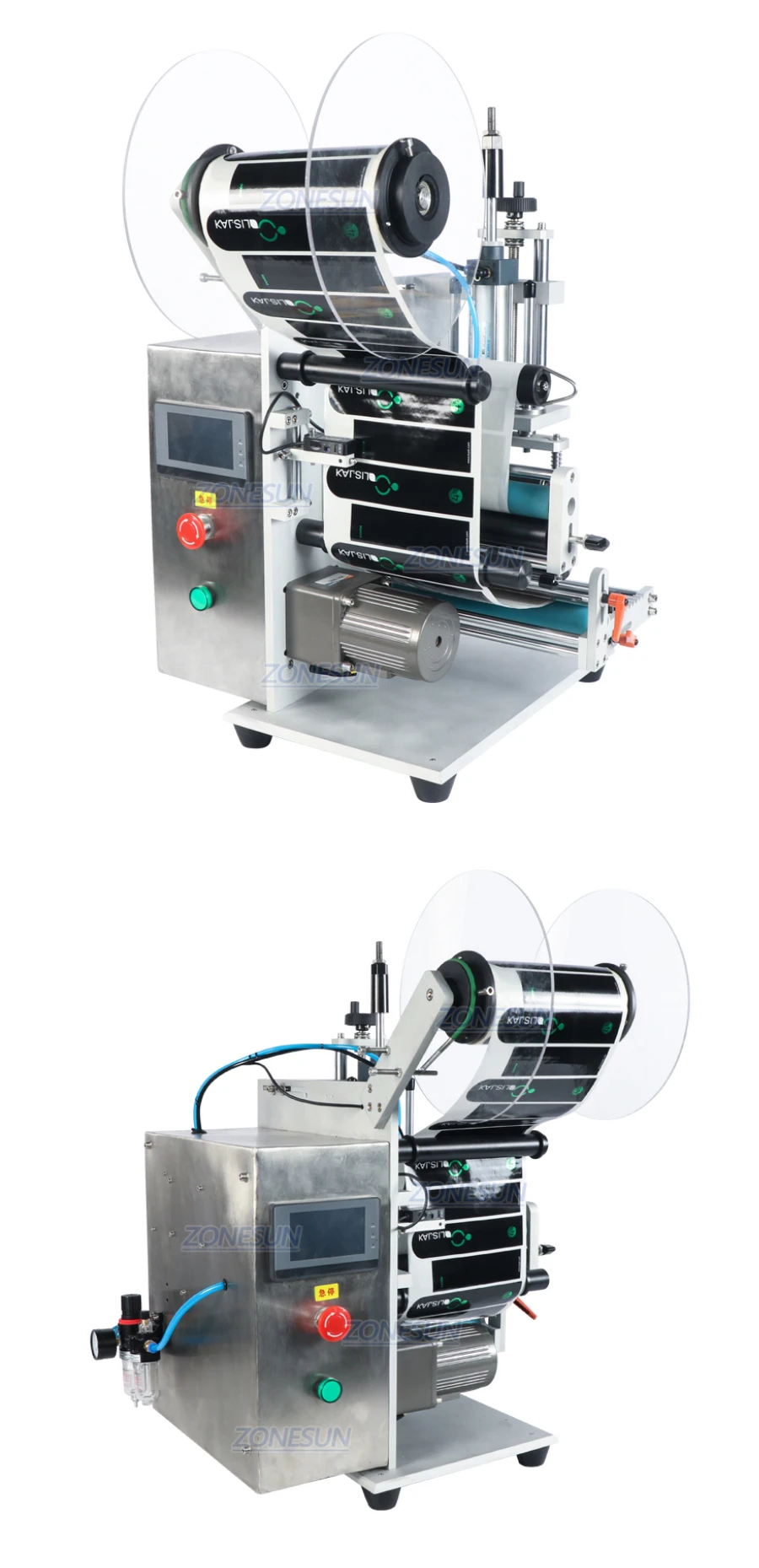

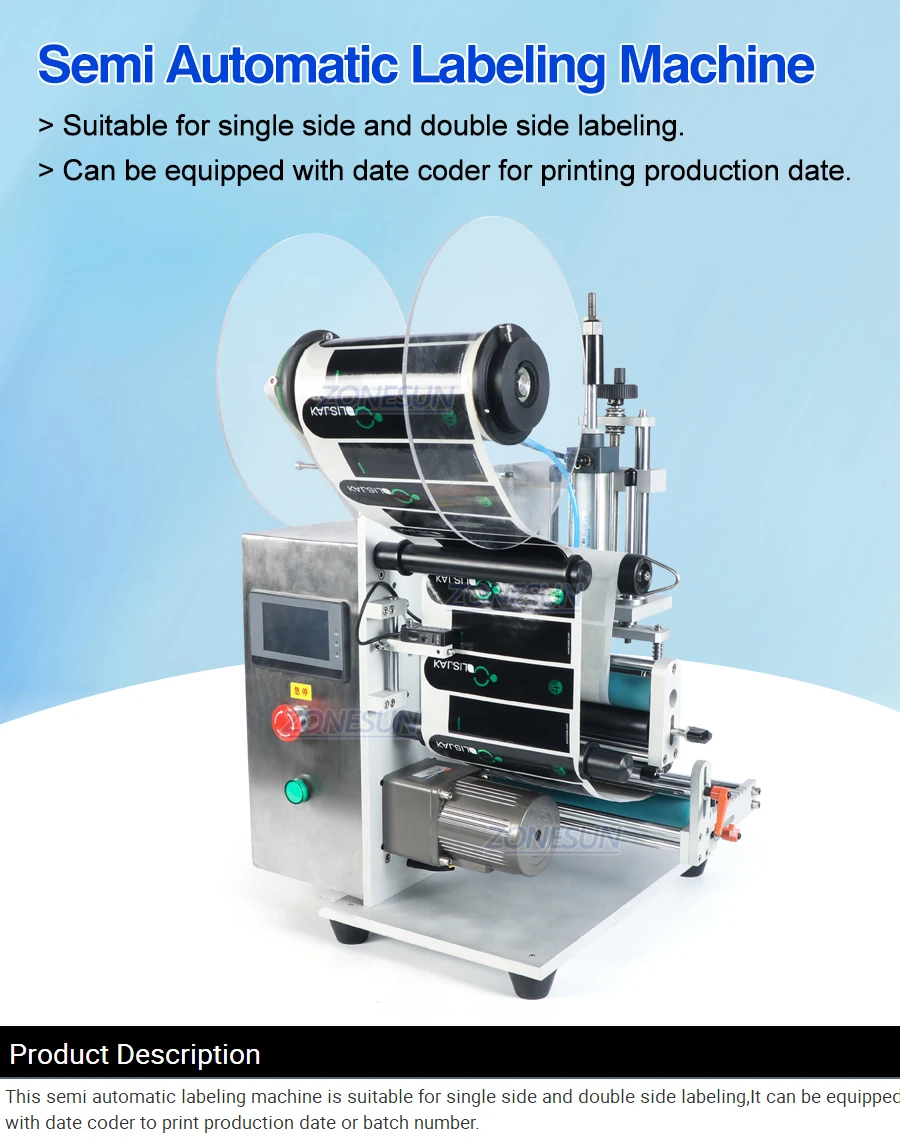

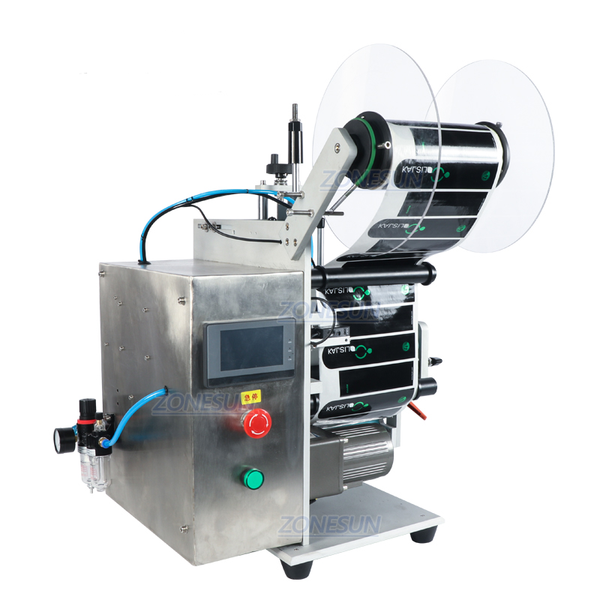

The ZONESUN ZS-TB100SW offers precise single-side and double-side labeling for round bottles with wider format support. Compact and semi-automatic, it's ideal for small production lines in food, cosmetic, and chemical industries. The machine can be integrated with a date coder to print batch numbers or production dates, improving traceability and efficiency. With adjustable labeling settings and strong compatibility across container sizes, it's built for flexibility and accuracy.

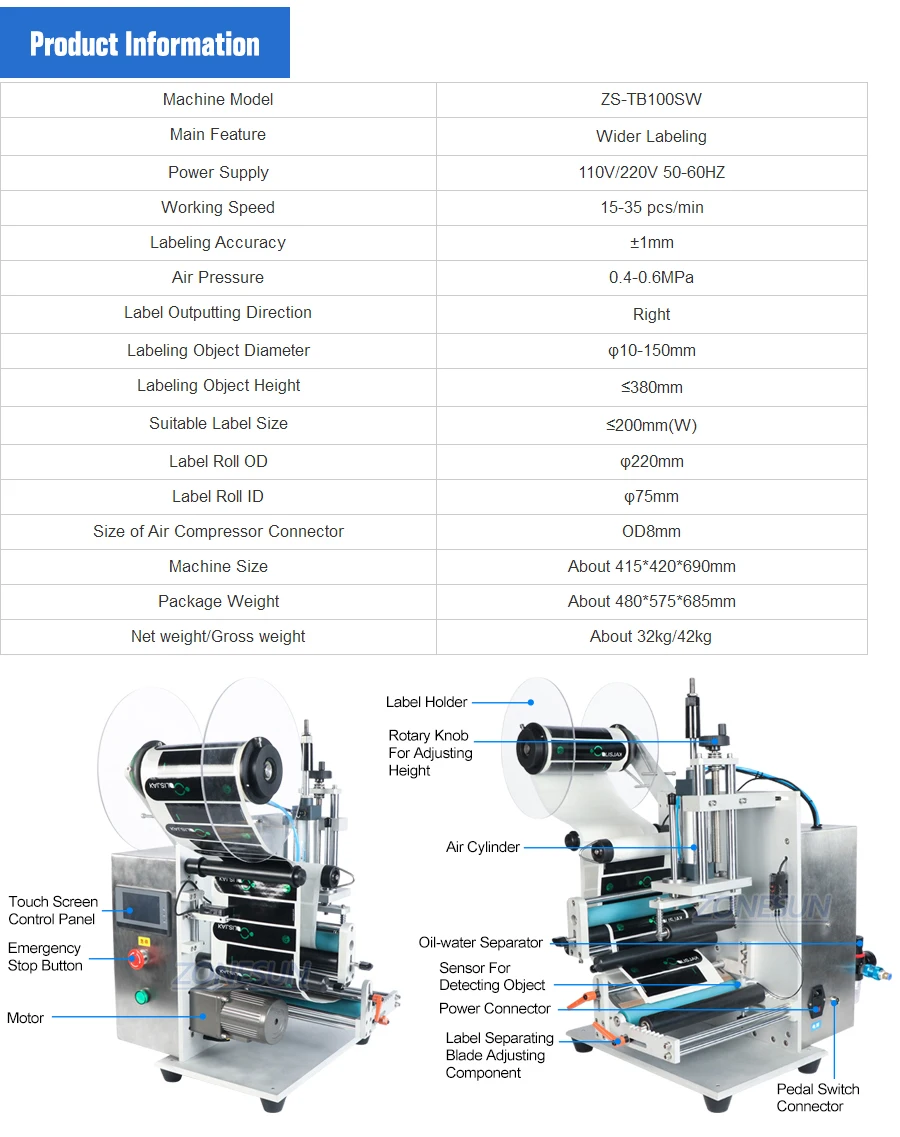

Parameter Details
| Machine Model | ZS-TB100SW |
|---|---|
| Main Feature | Wider Labeling Capability |
| Power Supply | 110V / 220V, 50–60Hz |
| Working Speed | 15–35 pcs/min |
| Labeling Accuracy | ±1 mm |
| Air Pressure | 0.4–0.6 MPa |
| Label Outputting Direction | Right |
| Labeling Object Diameter | φ10–150 mm |
| Labeling Object Height | ≤380 mm |
| Suitable Label Size | ≤200 mm (Width) |

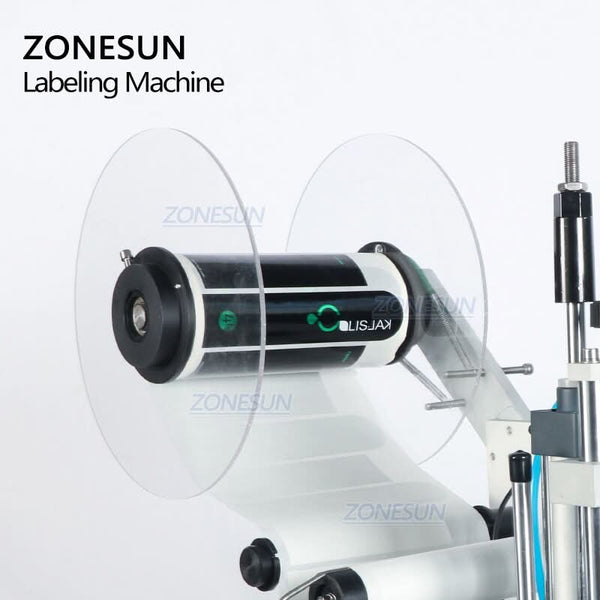

| Label Roll Outer Diameter | φ220 mm |
| Label Roll Inner Diameter | φ75 mm |
| Air Compressor Connector | OD 8 mm |
| Machine Size | Approx. 415 mm × 420 mm × 690 mm |
| Package Size | Approx. 480 mm × 575 mm × 685 mm |
| Net / Gross Weight | Approx. 32 kg / 42 kg |
Note：The coding unit can only be purchased together with the machine. We can reserve the mounting position and installation holes during production. It cannot be installed later if purchased separately after delivery.

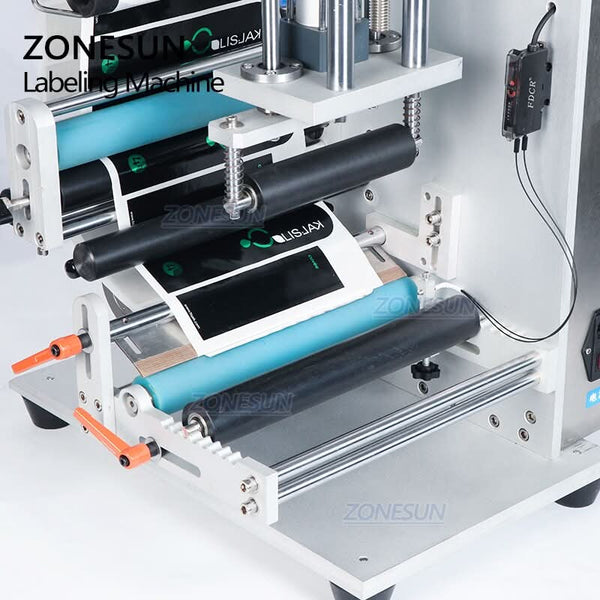

LABEL SENSOR
The label sensor helps prevent missed or wasted labels and supports accurate label placement. During setup, the label web should pass through the sensor gap.

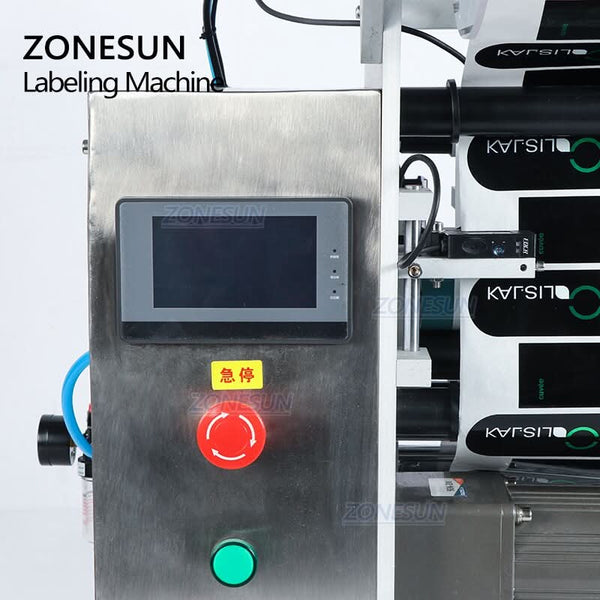

TOUCHSCREEN CONTROL PANEL
The touchscreen makes operating parameters easy to adjust for accurate label placement. The interface can be set to English or Chinese.
OBJECT DETECTION SENSOR
The sensor detects the labeling object and prevents label dispensing when no bottle is present, supporting accurate operation.

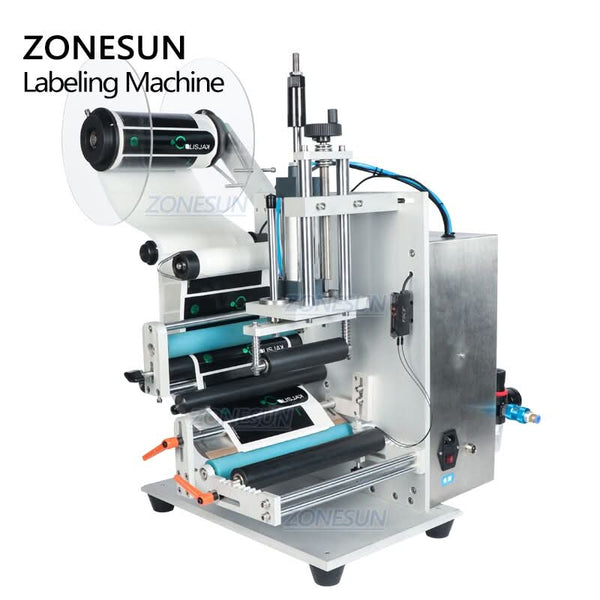

ADJUSTABLE LABELING RANGE
The labeling width and working height can be adjusted to suit different products. The machine supports both single-sided and double-sided labeling.

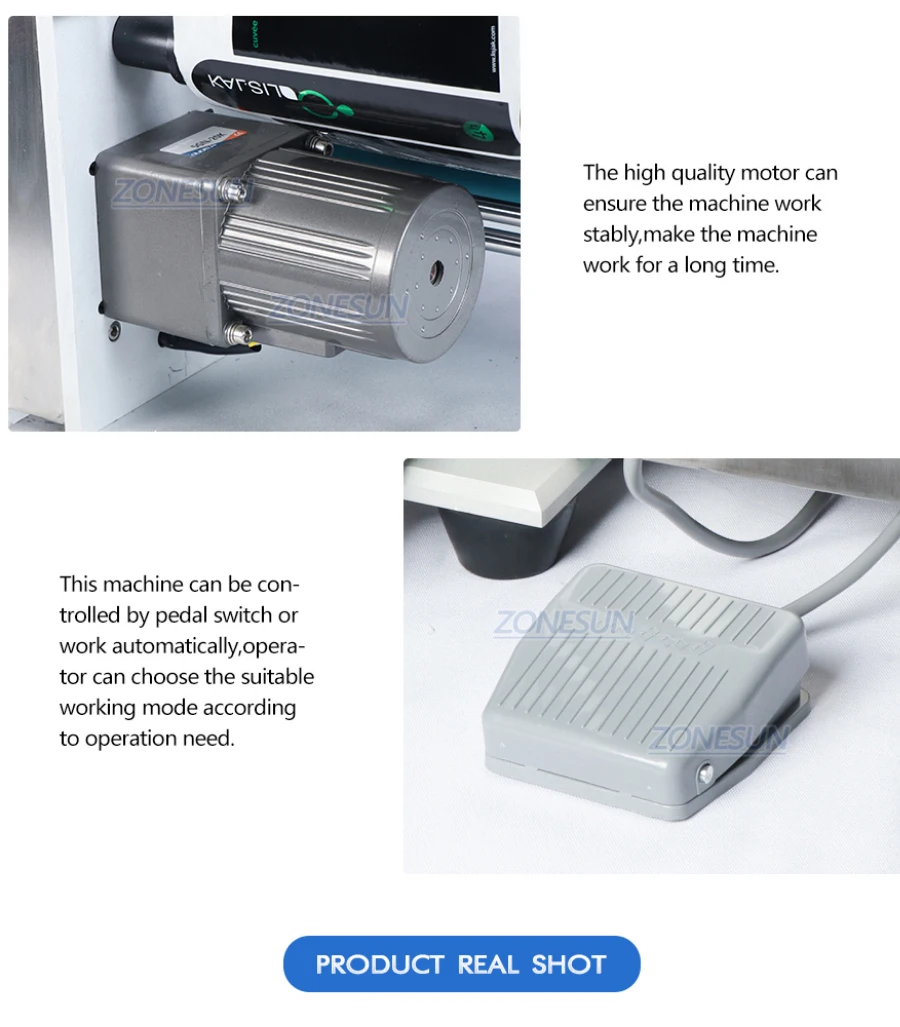

DUAL OPERATING MODES
The machine can be activated by foot pedal or operated automatically, allowing the operator to select the appropriate mode for the application.
DRIVE MOTOR
The motor supports stable, continuous machine operation.
