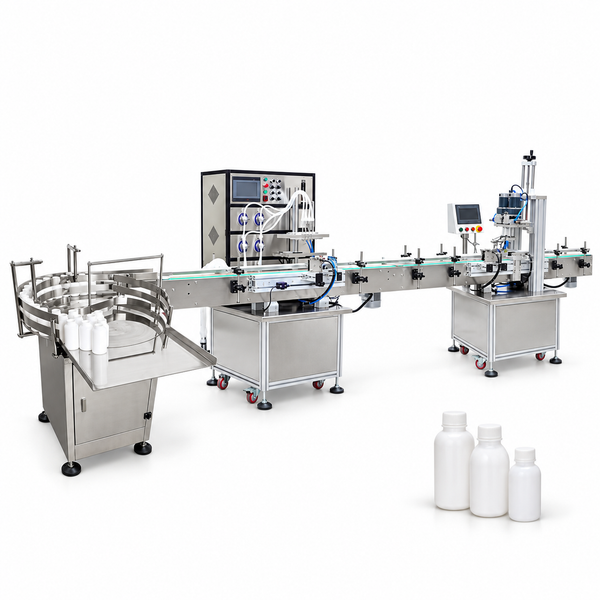

This automatic bottle production line integrates a bottle unscrambler, magnetic pump filling machine, and full automatic capping machine to streamline liquid packaging. Designed for bottles ranging from 20–160 mm in diameter and up to 300 mm in height, it supports high-speed filling and capping with excellent accuracy. Ideal for water, milk, toner, and other low-viscosity liquids, the system is customizable to fit your bottle type and production needs. Please note: shipping is by sea, and air pump is sold separately.
Specification
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 0.2 KW
Power Supply 220V / 50–60Hz
Net Weight 135 kg
Package Size 135 × 131.5 × 123.5 cm
Gross Weight 180 kg
Suitable Bottle Diameter 20–100 mm
Suitable Bottle Height 30–120 mm
Working Speed 40–60 bottles/min (depends on bottle size)
Motor Power 0.2 KW
Power Supply 220V / 50–60Hz
Net Weight 135 kg
Package Size 135 × 131.5 × 123.5 cm
Gross Weight 180 kg
Filling Machine
Container Size Φ20–160 mm, Height 30–300 mm
Max Flow Rate 3000 ml/min, 5500 ml/min, 5500 ml/min, 7500 ml/min
Material of Pump Plastic, 304 Stainless Steel, 316 Stainless Steel
Filling Accuracy ≤100 ml: deviation ≤ ±1 ml<br>>100 ml: deviation ≤ ±1% (based on water)
Filling Speed 20–40 pcs/min, 20–50 pcs/min, 20–50 pcs/min, 25–60 pcs/min (depends on liquid & bottle)
Power Supply 220V–50Hz / 110V–60Hz
Machine Power 2 KW
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
Max Flow Rate 3000 ml/min, 5500 ml/min, 5500 ml/min, 7500 ml/min
Material of Pump Plastic, 304 Stainless Steel, 316 Stainless Steel
Filling Accuracy ≤100 ml: deviation ≤ ±1 ml<br>>100 ml: deviation ≤ ±1% (based on water)
Filling Speed 20–40 pcs/min, 20–50 pcs/min, 20–50 pcs/min, 25–60 pcs/min (depends on liquid & bottle)
Power Supply 220V–50Hz / 110V–60Hz
Machine Power 2 KW
Packing Weight 150 kg
Packing Size 2000 × 820 × 1580 mm
Full Automatic Capping Machine – Technical Specifications
Parameter Specification
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions 1930 × 740 × 1600 mm
Packing Size 2000 × 820 × 1760 mm
Machine Weight 150 kg
Parameter Specification
Bottle Height 30–300 mm
Bottle Diameter 18–70 mm
Working Speed 20–60 bottles/min (depends on bottle and cap size/shape)
Working Voltage AC 220V / 110V, 50–60Hz
Working Pressure 0.4–0.6 MPa
Machine Dimensions 1930 × 740 × 1600 mm
Packing Size 2000 × 820 × 1760 mm
Machine Weight 150 kg
