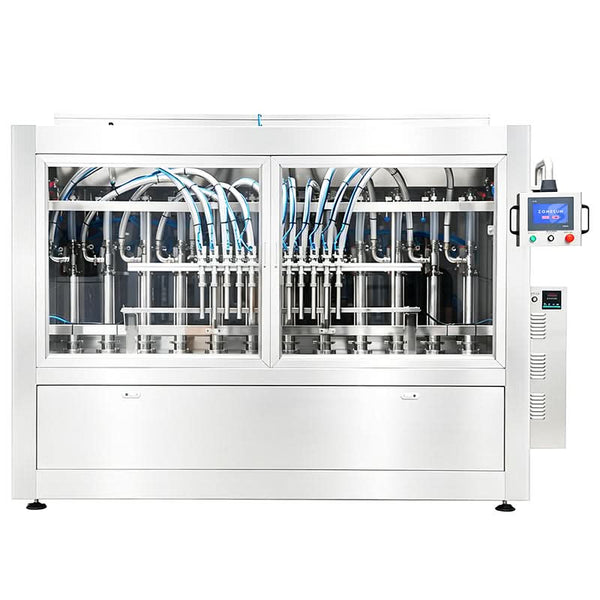

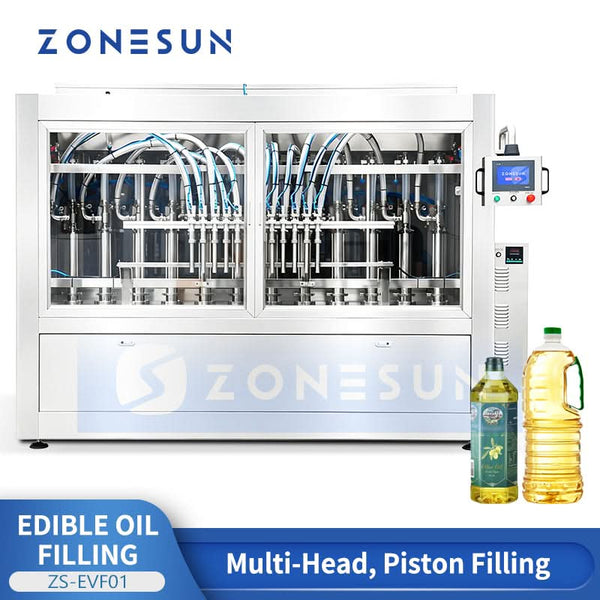

The ZONESUN ZS-EVF01 is an automatic multi-head piston filling machine for cooking oil, olive oil, sunflower oil, and other compatible edible oils. The series is available with 2 to 16 filling heads and uses piston-driven volumetric dosing to fill multiple containers simultaneously.
Configuration notice: Filling-head quantity, filling range, power, and production capacity depend on the selected model. Capacity figures are based on a 500 ml fill; actual output and accuracy depend on the oil, fill volume, container, and machine configuration.
Key Features

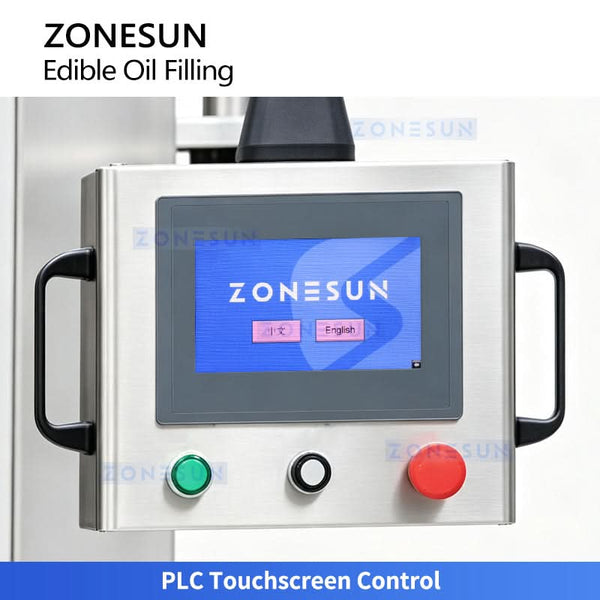

- PLC touchscreen control: Centralized adjustment of filling volume, speed, and operating parameters.

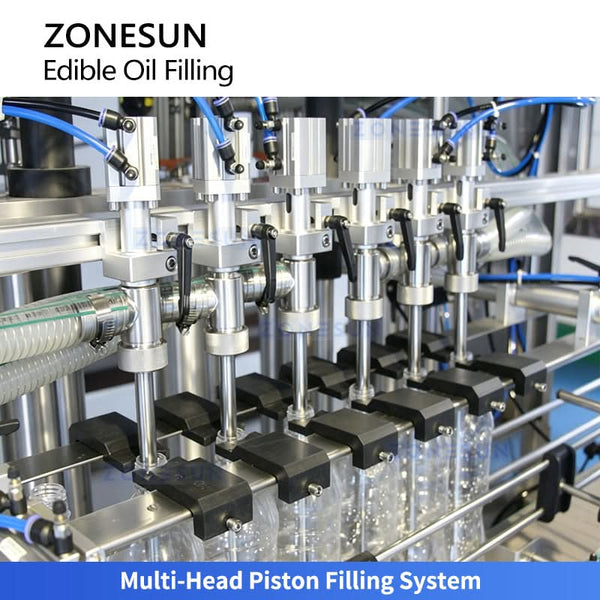

- Multi-head piston filling: Multiple piston-driven heads provide controlled volumetric dosing across several containers.

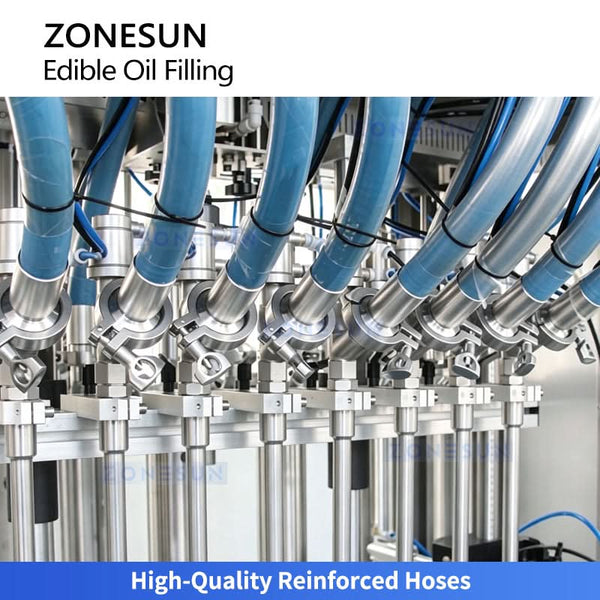

- Reinforced food-contact hoses: Designed to support reliable oil transfer, pressure resistance, and cleaning.

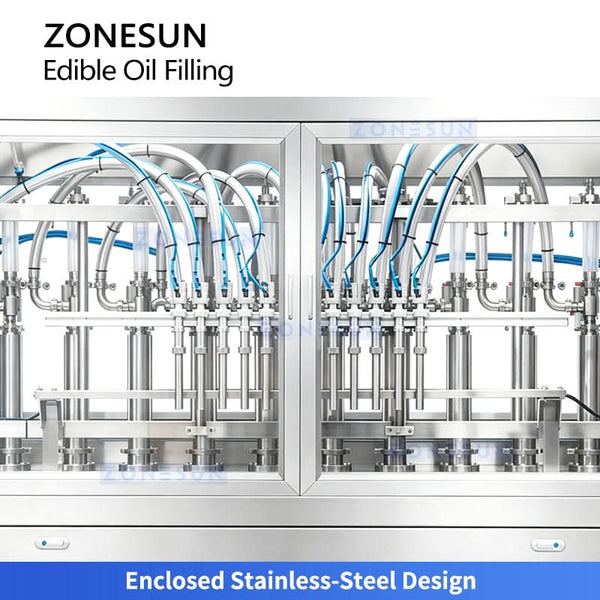

- Enclosed stainless steel structure: Transparent safety doors allow process observation while limiting access to moving components.

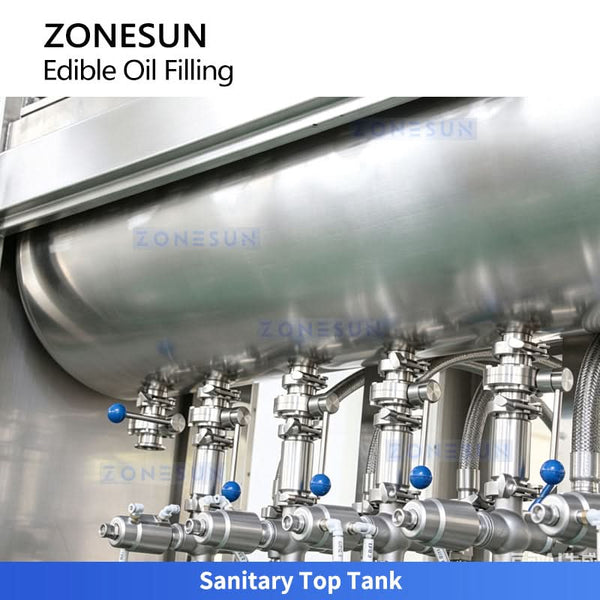

- Sanitary top tank: A 120–220 L tank with level detection supports automatic product replenishment.
Model and Capacity Options
| Model | Heads | Capacity at 500 ml |
|---|---|---|
| ZS-EVF01-2 | 2 | 12–14 bottles/min |
| ZS-EVF01-4 | 4 | 24–28 bottles/min |
| ZS-EVF01-6 | 6 | 36–42 bottles/min |
| ZS-EVF01-8 | 8 | 48–56 bottles/min |
| ZS-EVF01-10 | 10 | 60–70 bottles/min |
| ZS-EVF01-12 | 12 | 70–80 bottles/min |
| ZS-EVF01-16 | 16 | 80–100 bottles/min |
General Specifications
| Filling Range | 100–500 ml / 100–1000 ml / 1000–5000 ml |
|---|---|
| Air Pressure | 0.6 MPa |
| Filling Accuracy | ±0.1–0.3% |
| Power Supply | AC 220 V, single phase |
| Power | 1500 W / 3000 W, depending on configuration |
Applications
Suitable for filling compatible cooking oil, olive oil, sunflower oil, soybean oil, corn oil, and peanut oil into PET bottles, plastic jerrycans, and glass containers. It can serve as the filling section of an automated edible-oil bottling line.
