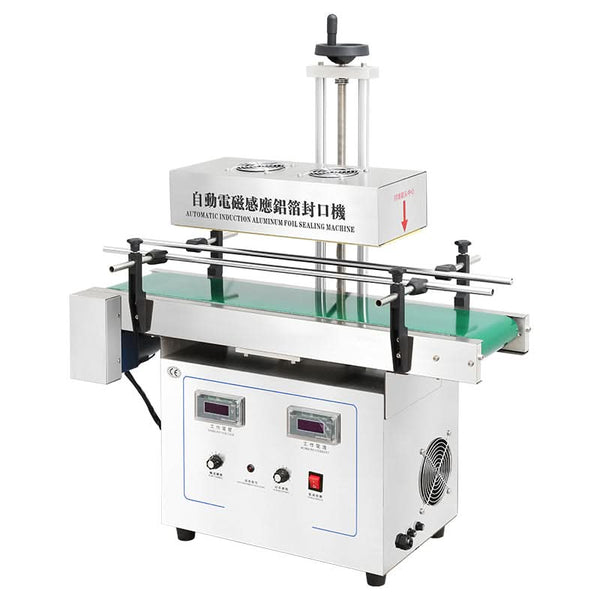

ZONESUN ZS-FK1300 Automatic Induction Foil Sealing Machine
The ZS-FK1300 is a continuous electromagnetic induction foil sealing machine with a conveyor. It heats a compatible induction foil liner without direct contact with the cap, bonding the liner to the bottle mouth under suitable sealing conditions. The listed sealing diameter is 10–70 mm, and the maximum reference output is 2,400 bottles per hour, depending on bottle size and material.
Key Highlights
- Non-Contact Electromagnetic Induction: Heats a compatible foil liner without physical contact with the cap. Seal quality depends on the packaging combination and operating settings.
- High-Speed Output: Up to 2,400 bottles/hour (varies by bottle size and material), ideal for continuous production lines.
- Wide Bottle Compatibility: Listed sealing diameter: Φ10–70 mm; suitable bottle height: 20–300 mm; listed bottle-body diameter limit: within 150 mm. The sealing diameter and bottle-body diameter are different measurements.
- Foil Seal Performance: A correctly matched liner and validated settings can help form a leak-resistant seal and provide evidence of opening. Verify the seal result with your actual bottles, caps and liners.
- 1300W High-Power Output: Maximum listed power is 1300 W. Establish suitable power and conveyor-speed settings using your packaging samples.
- Air-Cooled System: Built-in air cooling helps dissipate heat during operation.
- Stainless Steel Body: The listed machine-body material is stainless steel.
- Compact Conveyor Design: Conveyor dimensions are 150 mm wide × 760 mm long; confirm layout and bottle handling when integrating it into a packaging line.
- Voltage Options: Choose the 110V or 220V version (50–60Hz) to match your electrical supply. These are separate purchase options.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-FK1300 |
| Voltage | AC 110V / 220V, 50–60Hz |
| Max Power | 1300W |
| Sealing Diameter | Φ10–70mm |
| Suitable Bottle Height | 20–300mm |
| Suitable Bottle Diameter | Within 150mm |
| Max Sealing Speed | Up to 2,400 bottles/h (varies by bottle size & material) |
| Conveyor Size | 150mm (W) × 760mm (L) |
| Cooling Method | Air cooling |
| Machine Material | Stainless steel |
| Machine Dimensions | 790 × 330 × 860mm |
| Package Dimensions | 900 × 410 × 510mm |
| Package Weight | 30kg |
Suitable Applications
The ZS-FK1300 is intended for compatible bottle-packaging applications in food and beverage, cosmetics, pharmaceutical and chemical production. PET, HDPE, PP and glass containers require an induction foil liner matched to the container material and contents. Glass applications require particular attention to liner compatibility.
Before ordering: provide the bottle material, bottle-body and neck dimensions, cap details and induction liner specifications. Confirm the packaging combination with sample testing; diameter alone does not establish compatibility.

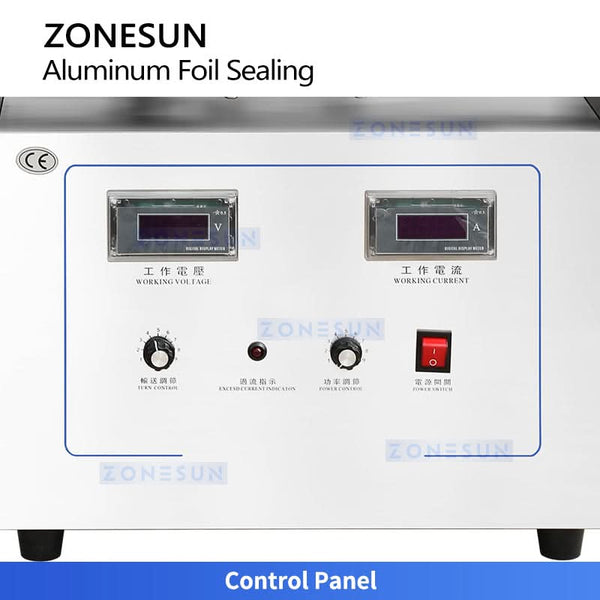

CONTROL PANEL
The digital control panel precisely regulates conveyor speed and electromagnetic power, simplifying daily setup and operation.

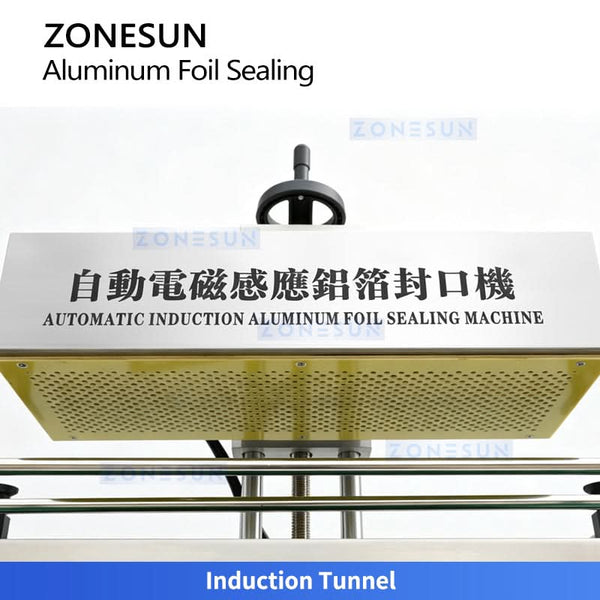

INDUCTION TUNNEL
The induction tunnel generates a high-frequency electromagnetic field to heat compatible aluminum foil liners without direct container contact. Confirm the sealing result with your bottle, cap and liner combination.

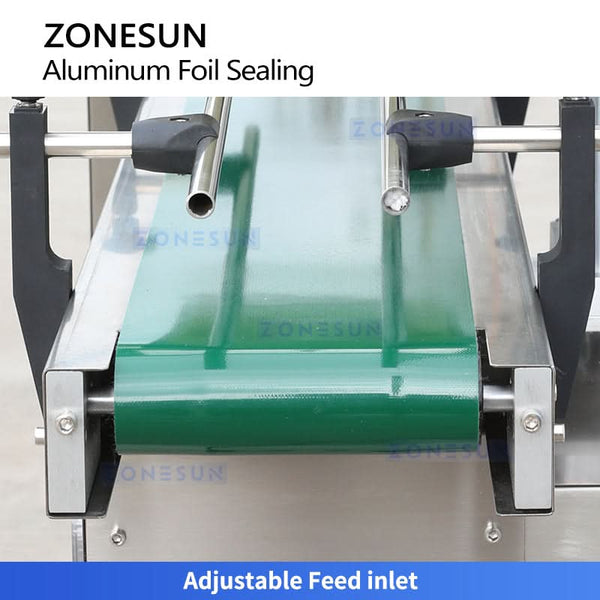

ADJUSTABLE FEED INLET
Two black knobs adjust the inlet guide-rail width to align bottles up to 150 mm in diameter and help prevent misalignment during conveying.

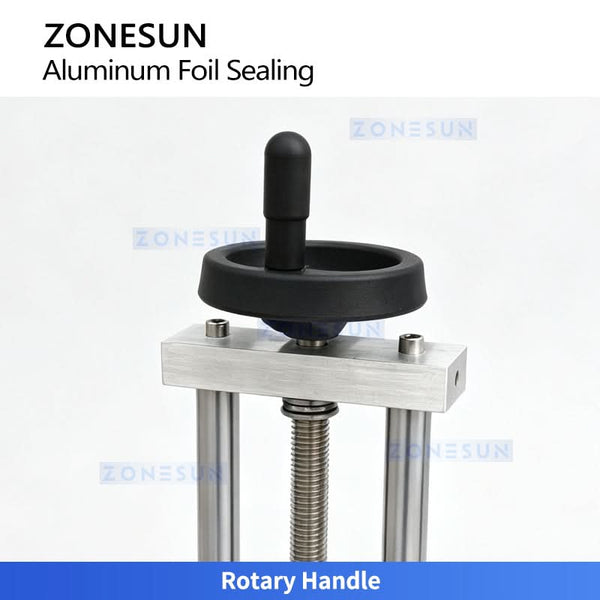

ROTARY HANDLE
The rotary handle adjusts the sealing height for bottles up to 300 mm tall.

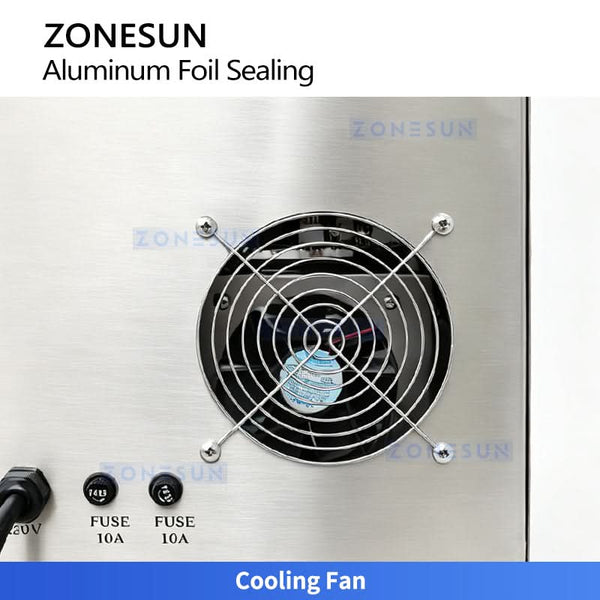

COOLING FAN
The cooling fan helps dissipate internal heat during machine operation.
MOTOR
The high-quality motor provides steady power to drive the conveyor during extended production.
