Description

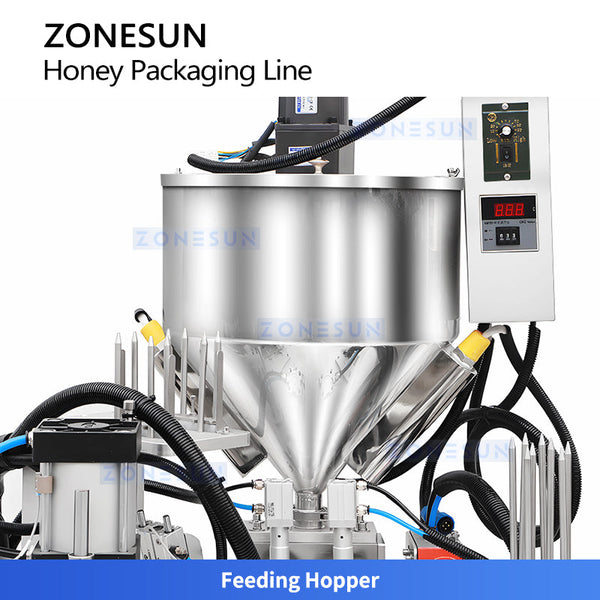

The ZONESUN ZS-AFCL10 is a full-automatic servo honey spoon filling and sealing production line designed for efficient and hygienic honey packaging. Operating at up to 1800 pcs/hour, it integrates spoon feeding, film feeding, filling, sealing, and cutting into a compact rotary system. Equipped with a piston pump, heating-mixing hopper, servo sealing structure, and customizable cutting blades, the machine ensures accurate filling, clean sealing, and neat cutting results. It can also be paired with a flow wrapping machine for complete downstream packaging automation.
ZS‑FSHS20
- Model: ZS‑FSHS20
- Type: Honey Spoon Filling Sealing Machine
- Power Supply: 110 V / 220 V, 50–60 Hz, 3.5 kW
- Production Speed: About 1000–1800 pcs/hour (depending on filling range)
- Filling Range: 5–300 ml (customizable)
- Filling Accuracy: ±1%
- Filling Pump: Piston pump
- Hopper Capacity: 30 L
- Sealing Temperature: 0–400 °C
- Suitable Product Size: Customizable
- Air Pressure: 0.5–0.8 MPa
- Machine Size: About 1806 × 1117 × 1722 mm
- Packing Size: About 1750 × 1120 × 1610 mm
- Package Weight: About 520 kg
ZS‑ZB350X
- Model: ZS‑ZB350X
- Type: Flow Wrapping Machine
- Power: 110 / 220 / 380 V, 50–60 Hz, 2.4 kW
- Film Width: Max. 350 mm (customizable)
- Bag Length: 90–6000 mm (customizable)
- Bag Width: 30–160 mm (customizable)
- Product Height: Max. 55 mm (customizable)
- Film Roll Diameter: Max. 320 mm
- Sealing Type: Top side sealing
- Packaging Speed: 30–120 bags/min
- Packaging Materials: OPP, OPP/CPP, KOP/CPP, Aluminum film
- Machine Size: About 3836 × 890 × 1079 mm
- Machine Weight: About 350 kg
- Packing Size: About 1950 × 1220 × 1220 mm + 2610 × 670 × 450 mm
- Package Weight: About 415 kg + 83 kg
