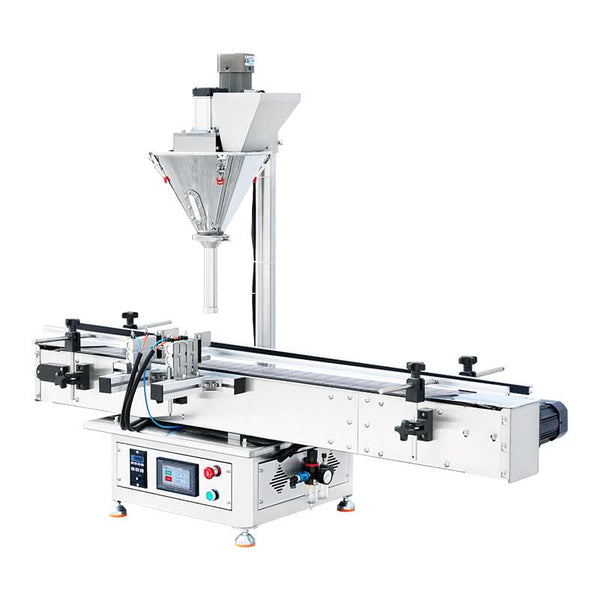

The ZS-FM3A is a compact, desktop-type auger filling machine designed for precise powder dosing in cosmetics, food, and daily chemical industries. Ideal for fine powders such as milk powder, matcha, and medical-grade dry powder, it uses a servo-controlled auger system to deliver consistent filling accuracy. Its adjustable working height and customizable nozzle make it suitable for various bottle sizes, while the integrated conveyor ensures smooth, automated operation. A reliable choice for small to medium-scale production lines seeking efficiency and precision.
ZS-FM3A Powder Filling Machine Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-FM3A |
| Voltage | 110V / 220V |
| Machine Power | 0.5KW |
| Hopper Size | Approx. 6L |
| Hopper Diameter | Approx. 320mm |
| Filling Range | 50g–500g |
| Filling Nozzle Size | 20mm (customizable) |
| Filling Accuracy | ±1% |
| Filling Speed | Approx. 10 bottles/min |
| Working Height | 420–490mm (adjustable) |
| Conveyor Length | Approx. 1100mm |
| Conveyor Width | Approx. 140mm |
ELECTRIC EYE
The adjustable-sensitivity electric eye detects bottles and controls machine operation.

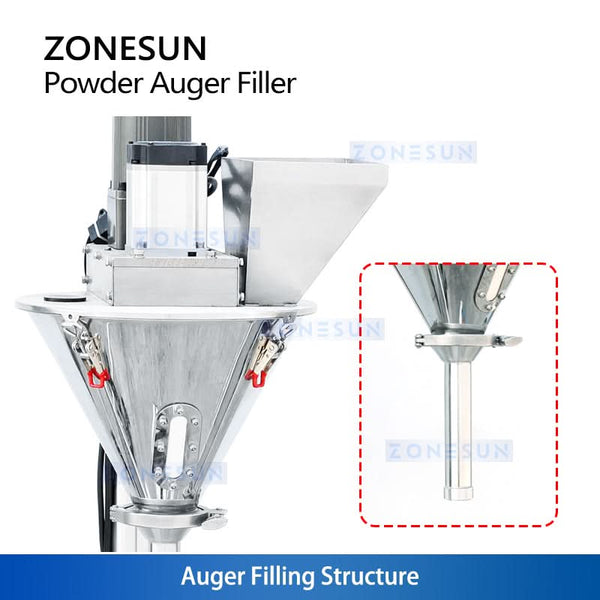

AUGER FILLING SYSTEM
The auger metering system supports accurate powder filling. The large hopper and integrated stirring function help keep the material evenly distributed during filling.

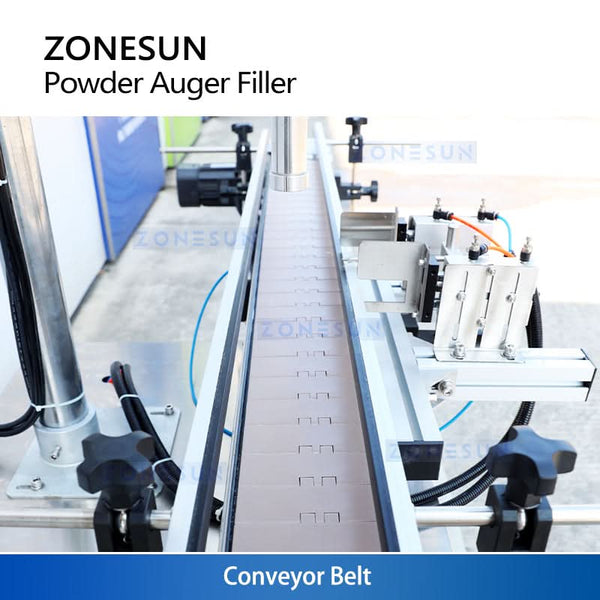

CHAIN CONVEYOR
The chain conveyor transports heavy containers steadily. Its inlet width can be adjusted to suit the bottle size.

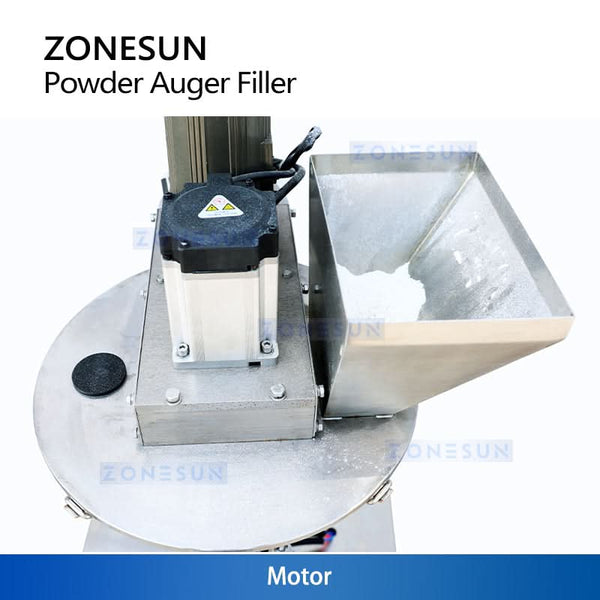

MOTOR
The powerful motor supports stable machine operation during filling.
