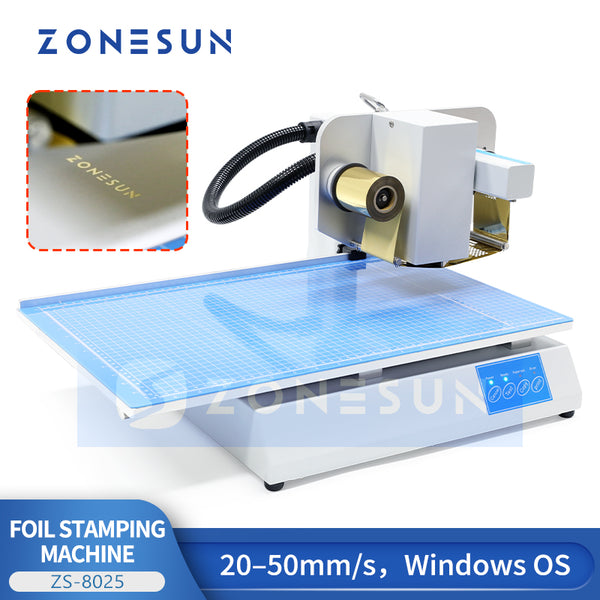

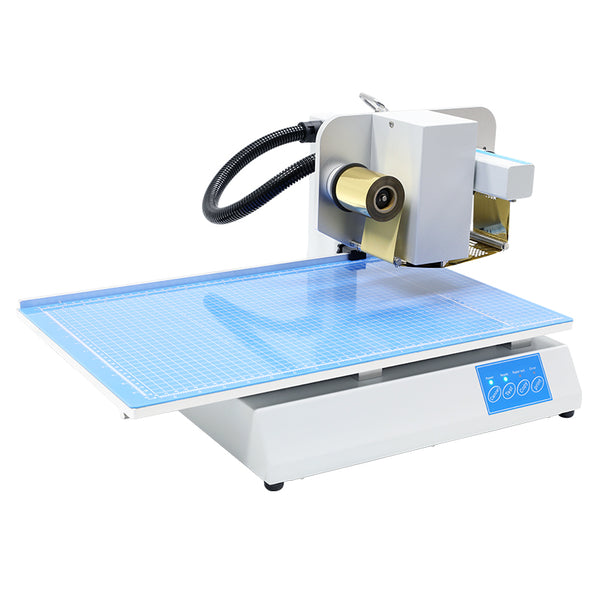

The ZONESUN ZS-8025 is a plate-free digital hot foil printer for adding logos, text and graphics to leather, paper, PVC, PU, ribbon, film and other flat materials. Designs are prepared on a Windows computer and transferred by USB, removing the need to make a separate brass stamping plate for each design.
Key Features
- Plate-free digital printing for logos, text, numbers and graphics
- 300 dpi ROHM printhead for clear foil transfer
- Adjustable text size and support for detailed designs
- Printing speed of 20–50 mm/s
- Suitable for menus, notebooks, cards, ribbons, labels and packaging materials
- Compact benchtop design with USB data transmission
Software compatibility: The supplied machine software supports Windows only. It is not compatible with macOS.
Technical Parameters
| Model | ZS-8025 |
|---|---|
| Printing Method | Plate-free digital hot foil printing |
| Data Transmission | USB |
| Maximum Printing Area | 57 × 250 mm |
| Maximum Material Thickness | 30 mm |
| Maximum Feeding Width | 450 mm |
| Printing Speed | 20–50 mm/s |
| Resolution | 300 dpi |
| Printhead Life | Up to 150,000 m |
| Compatible Operating System | Windows only |
| Rated Power | 150 W |
| Power Supply | AC 110–240 V, 50/60 Hz |
| Machine Size | 640 × 530 × 330 mm |
| Packing Size | 690 × 645 × 550 mm |
| Net / Gross Weight | 21 / 35 kg |
| Suitable Materials | Paper, PVC, PU, leather, adhesive paper, cardboard, fabric, plastic, ribbon and film |
Product Details

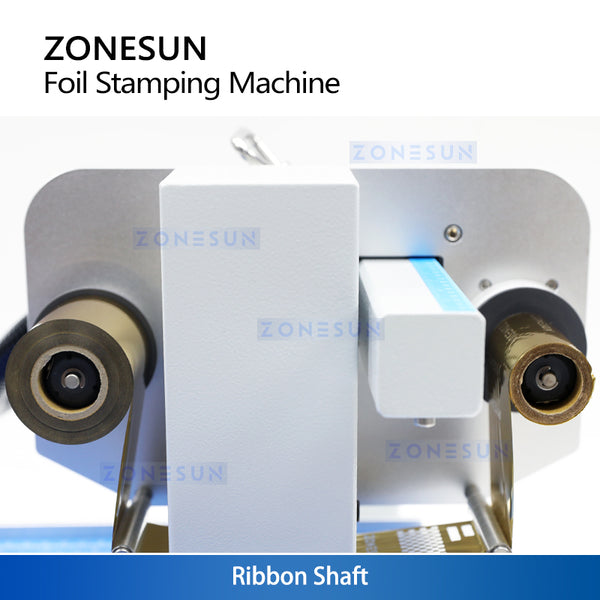

Ribbon Shaft
Holds the foil roll and supports stable alignment and feeding during printing.

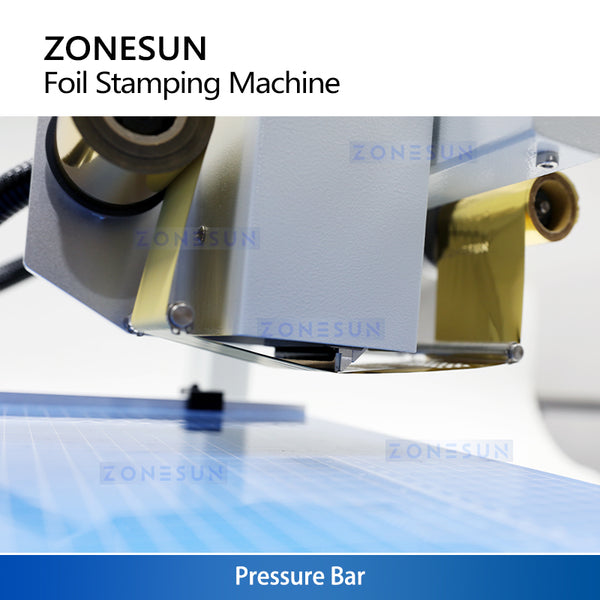

Pressure Bar
Supports consistent contact between the printing assembly, foil and workpiece.

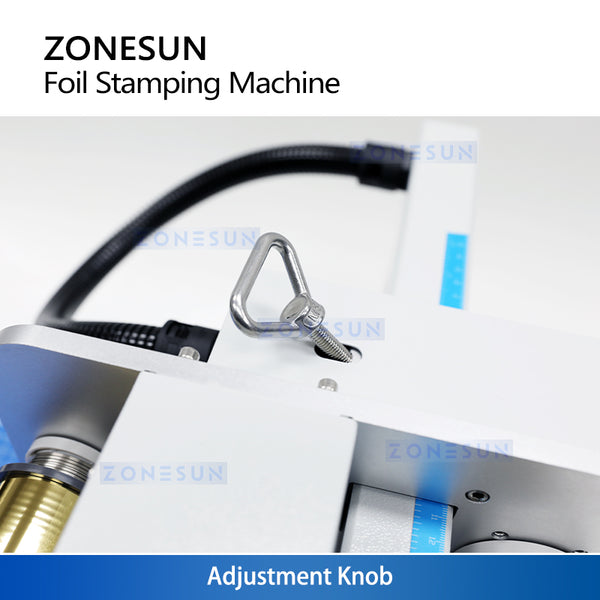

Adjustment Knob
Allows the printing-head position to be adjusted for materials of different thicknesses.

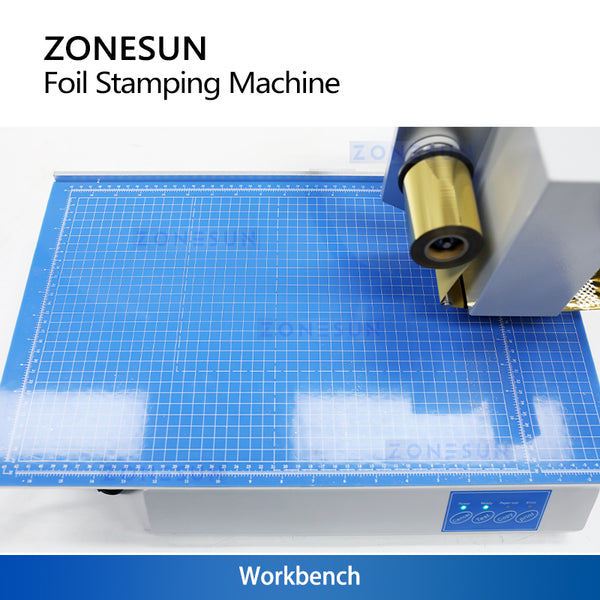

Flat Workbench
Provides a stable surface for positioning flat materials during foil printing.
Positioning Gauge
Helps align workpieces for more repeatable placement during batch work.
