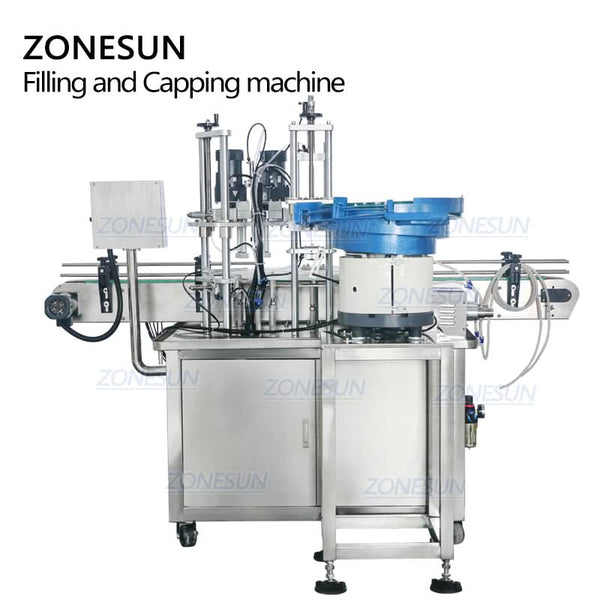

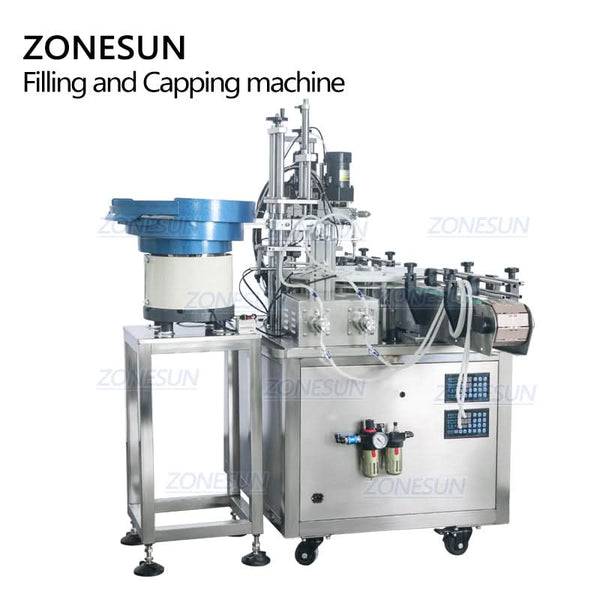

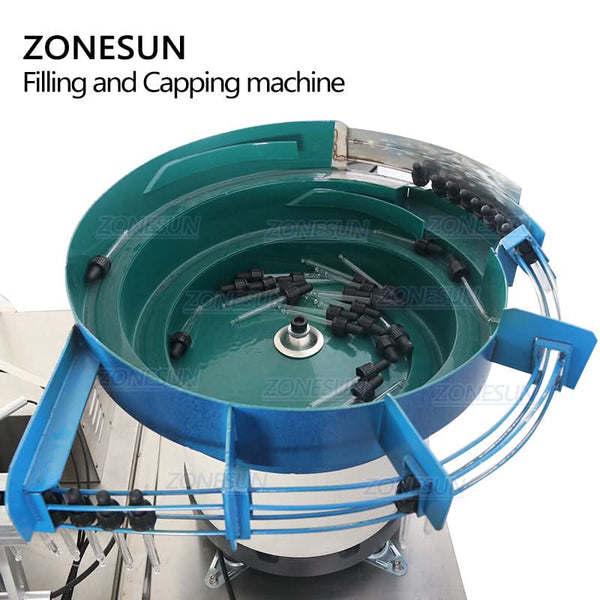

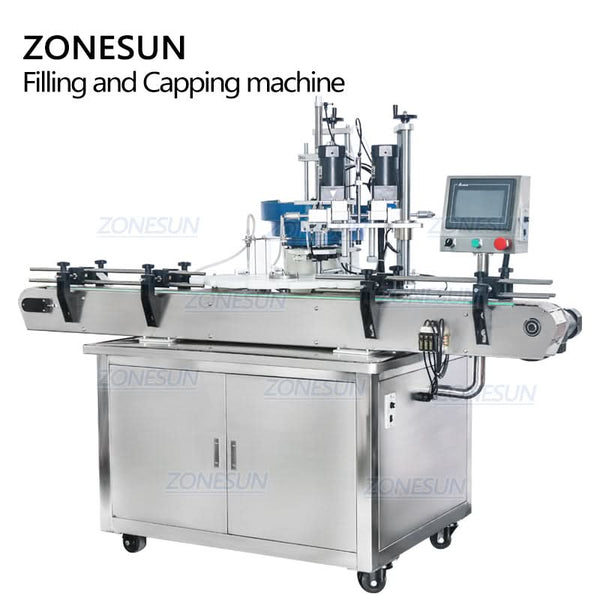

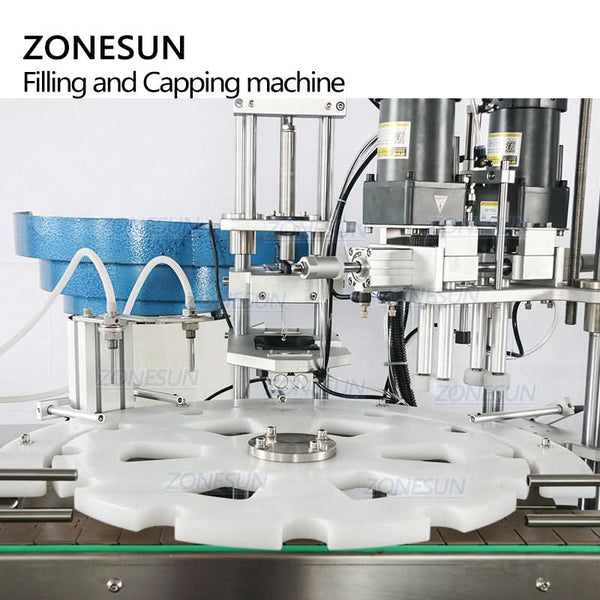

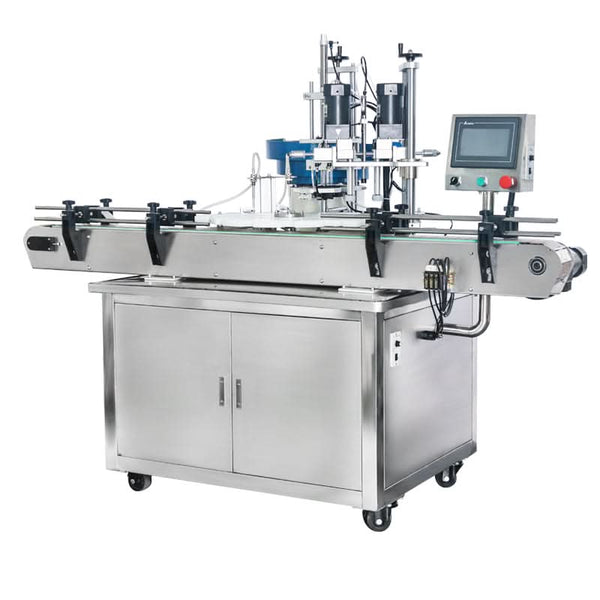

The ZONESUN ZS-AFC1 is a multifunctional liquid filling and capping machine designed to streamline production for pharmaceutical, cosmetic, and chemical applications. Featuring precision magnetic pumps, it delivers accurate filling, automatic cap feeding, and secure sealing in one efficient process. Suitable for various bottle sizes, this compact unit enhances productivity and quality control across diverse packaging operations.
Parameter
Machine Model ZS-AFC1
Machine Voltage AC220V / 110V, 50–60Hz
Bottle Diameter 25–50 mm (customizable)
Bottle Height 50–350 mm
Working Speed 0–40 bottles/min (depends on liquid, bottle, and caps)
Max Power 300W
Air Pressure 0.4–0.6 MPa
Capping Torsion 4–9 kgf/cm
Conveyor Size Approx. 2000 × 100 mm (L × W)
Machine Size Approx. 1015 × 800 × 1560 mm
Machine Weight Approx. 341 kg
Package Size Approx. 2210 × 980 × 1740 mm
Package Weight Approx. 411 kg
