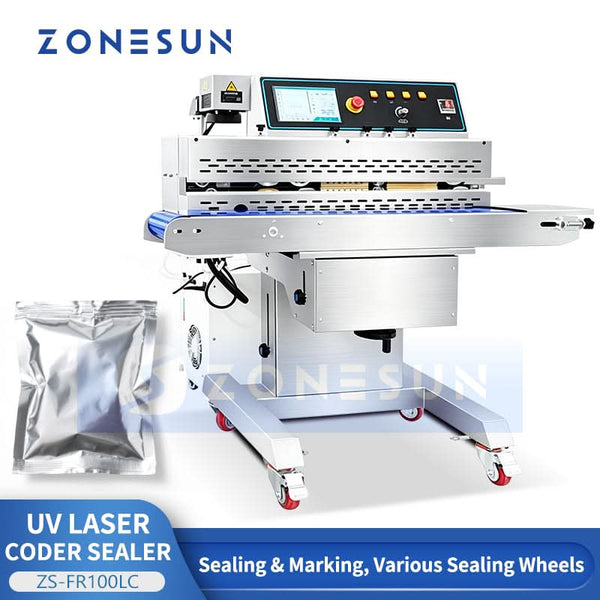

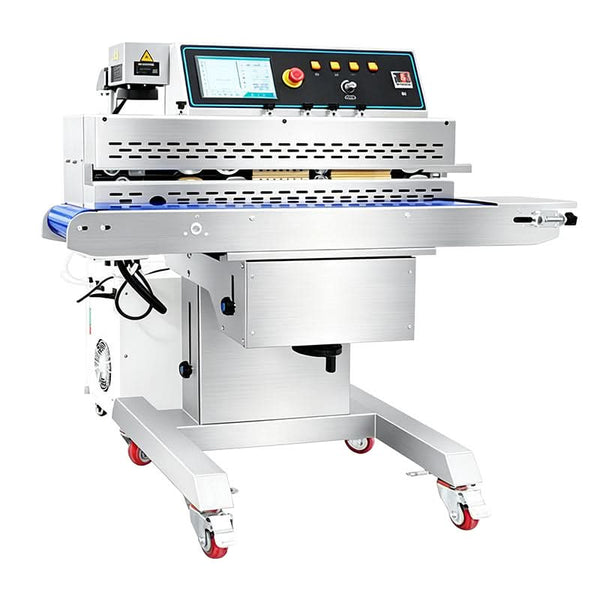

ZONESUN ZS-FR100LC Continuous Band Sealer with UV Laser Marking
The ZONESUN ZS-FR100LC is a multifunctional continuous band sealer that integrates high-speed sealing with UV laser coding. It performs direct-heat fusion sealing while simultaneously marking production dates, batch numbers, QR codes, and logos on various plastic and composite bags. Equipped with UV cold-processing technology, it ensures clean, precise, and permanent markings without thermal damage to sensitive materials. With adjustable tilt for liquid products and precise photoelectric tracking, it delivers efficient, permanent, and high-quality packaging for food, pharmaceutical, and daily chemical industries.
Key Features

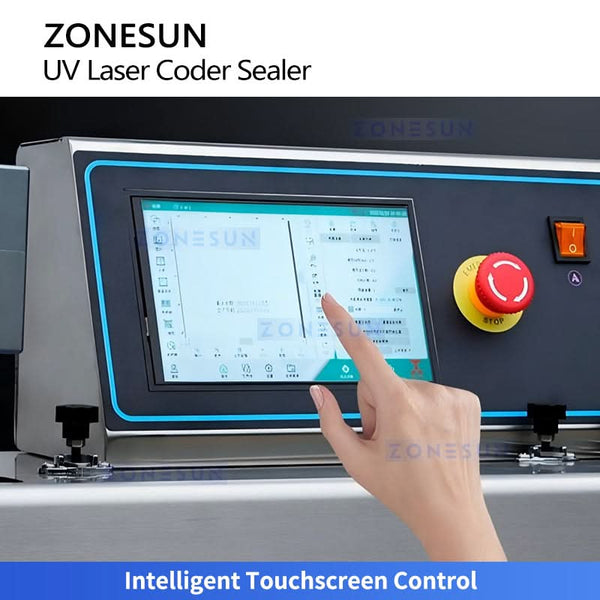

Intelligent Touchscreen Control
8-inch high-definition touchscreen with user-friendly OS supports multi-language editing and easy setting of dates, batch numbers, and QR codes.
Integrated Sealing & Laser Marking
Combines continuous heat sealing and UV laser marking in one pass for simultaneous packaging and information coding.
Various Sealing Wheels
Replaceable sealing wheels accommodate different bag materials, patterns, and sealing requirements.
UV Cold-Processing Technology
Cold ablation principle minimizes heat-affected zone, allowing precise coding on thin or sensitive plastic packaging without burning or deformation.
Adjustable Tilt Mechanism
0–50° tilt adjustment prevents spillage of liquids or semi-fluids during sealing.
Benefits
- Permanent Marking – UV laser creates indelible, high-contrast codes that resist abrasion, moisture, and cold storage.
- Zero Consumables – No ink or solvents required, reducing long-term costs and environmental impact.
- High Speed – Continuous operation with adjustable sealing speed up to 16 m/min.
- Versatile – Suitable for PE, PET, aluminum foil, and composite bags.
- Clean & Precise – Cold processing protects thin packaging materials.
Specifications
| Machine Model | ZS-FR100LC |
| Power Supply | AC 220V / 50Hz (110V / 60Hz optional) |
| Motor Power | 100 W |
| Sealing Heating Power | 400 W × 2 |
| Sealing Speed | 0–16 m/min |
| Sealing Width | Standard 10 mm |
| Temperature Range | 0–300 °C |
| Conveyor Max Load | Approx. 10 kg |
| Printing Type | UV Laser Coding |
Applications
Ideal for continuous sealing and laser coding of plastic bags, composite films, and aluminum pouches containing food, pharmaceuticals, chemicals, and daily necessities. Perfect for production lines requiring permanent traceability information and strong, professional seals.
CONTROL PANEL
Provides access to operating settings for the sealing and marking system.

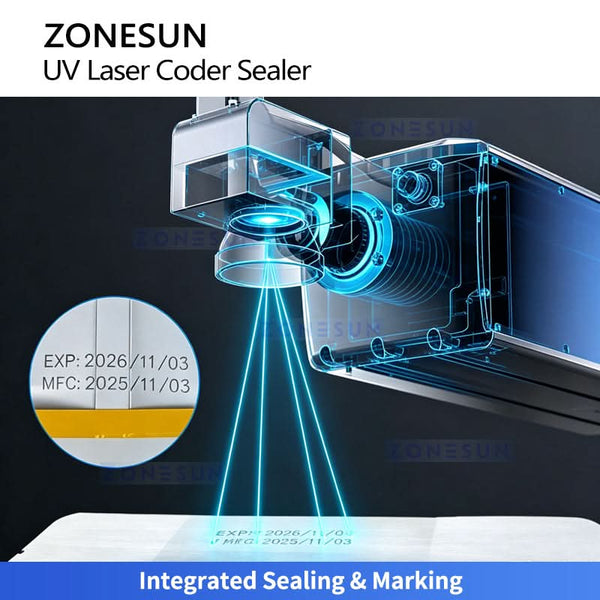

Integrated Sealing & Marking
Integrating continuous sealing and UV laser marking for simultaneous packaging and product information coding, improving production efficiency.

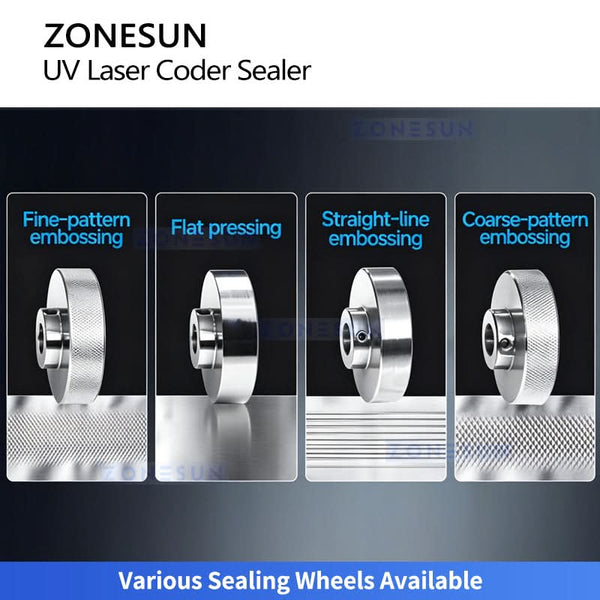

Various Sealing Wheels Available
Supporting replaceable sealing wheels to accommodate various bag materials, patterns, and sealing requirements.

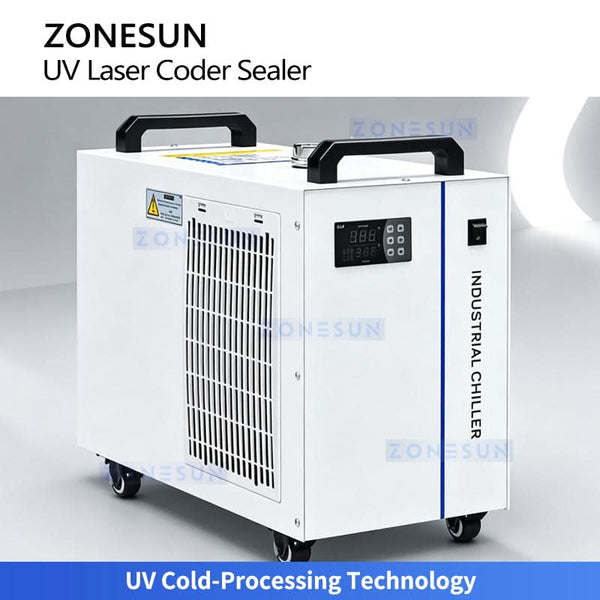

UV Cold-Processing Technology
Employing the "cold-processing" principle, the laser minimizes the heat-affected zone, enabling precise coding without burning or deforming thin or sensitive plastic packaging.

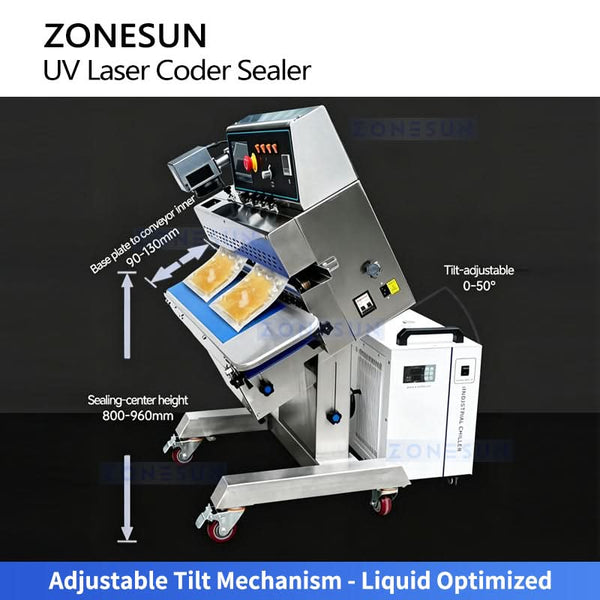

Adjustable Tilt Mechanism - Liquid Optimized
Allowing 0-50° tilt adjustment to prevent liquid or semi-fluid spillage during sealing and ensure stable packaging.
