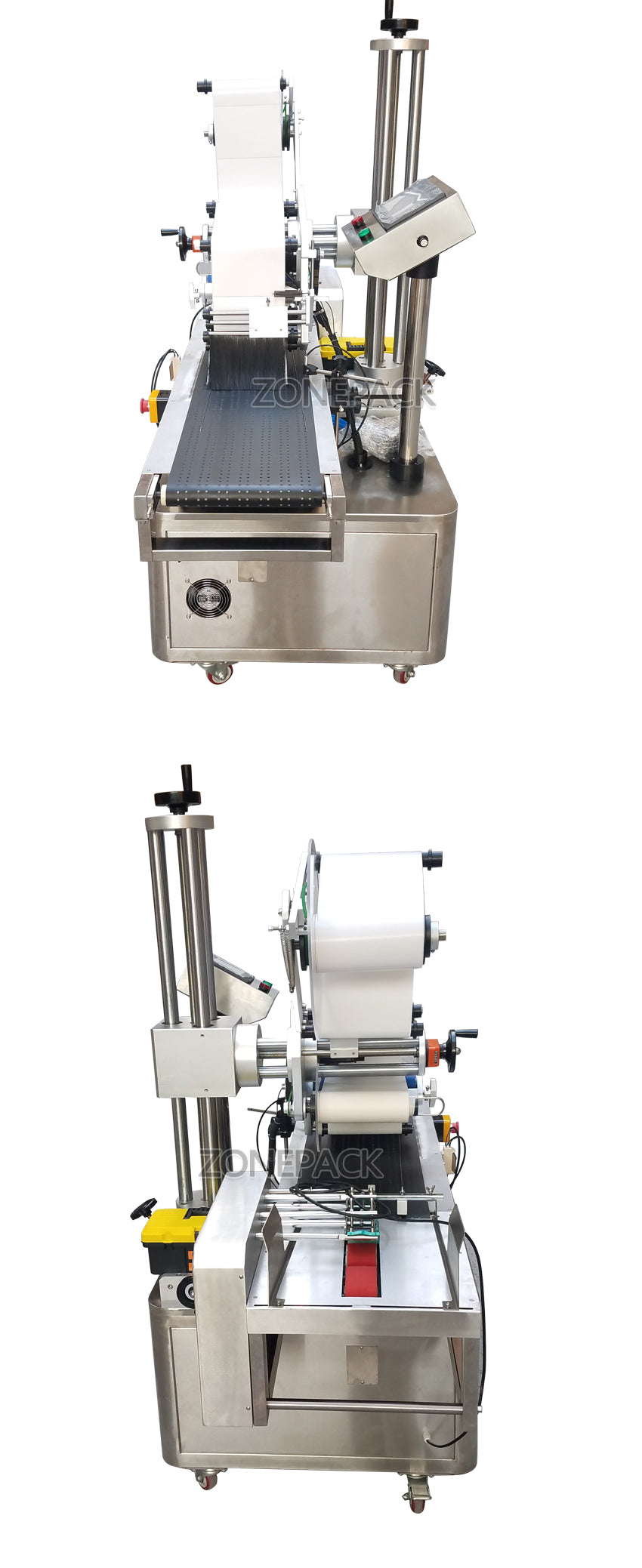

ZONEPACK Automatic High Speed Flat Square Bottle Bag Adhesive Tape Packing Labeling Machine
Application Especially adapt to electronic monitoring code labeling. Widely used in packaging objects, like medical, food, chemical, cosmetics, electronic products, hardware, Auto Parts, stationeries, batteries, tape, CD, cartons and so on.
Feature 1.Using touch-screen control operating system, simple, practical, efficient; 2.Adapt variety shape of object in top labeling; 3.Screw adjustment to suppress body movements accurately; 4.Synchronization chain mechanism ensure labeling smooth and precise calibration; 5.Advanced technology of pneumatic coding system, print the batch number and expiry clearly. 6.Transmission-type rolling bottles, make sure the labels attached more firmly; 7.Labeling transparent label without bubble and wrinkle.
1.Label width: 20-150mm 2.Label length:20-100mm 3.Products Diameter: Length: 40mm-280mm Width: 40mm-200mm Height: 0.2mm-2mm 4.Max Outside diameter of label roll: φ280mm 5.Inside diameter of label roll: φ76mm 6.Max Labeling speed: 200pcs /min 7.Accuracy of labeling:±1mm 8.Power: 220V/110V 50/60Hz 1200W 9.Air Pressure: 4- 6 bar or 0.4 -0.6 Mpa 10.Machine Net Weihgt : 180KG 11.Machine Dimension: 2200mm x 700mm x 1450 mm 12.Packing Size:276*106*167CM 13.Gross Weight:230KG 14: Feeder Parameter: Length:280mm width:40-200mm(adjustable;height:60mm )
(THIS ONE CAN BE CUSTOMIZED and if you want the cheaper shipping cost .PLS CONTACT US )
