The ZS-AC50L is a 50 L oil-free air compressor designed to supply compressed air to compatible pneumatic packaging equipment. It uses two 750 W motor units, providing a stated air delivery of 120 L/min at a rated pressure of 0.7 MPa. Both 110V and 220V configurations are available.
Product Highlights
- Oil-free compressed-air supply for compatible pneumatic equipment
- Two 750 W motor units with 1,500 W total rated power
- 50 L air storage tank
- Pressure gauge for operating-pressure monitoring
- Solenoid valve designed to help protect the motor
- Handle and casters for movement around the workshop
Specifications
| Parameter | Specification |
|---|---|
| Model | 750W × 2–50L |
| Motor Speed | 1,380 r/min |
| Rated Power | 1,500 W |
| Air Delivery | 120 L/min |
| Rated Pressure | 0.7 MPa |
| Air Tank Capacity | 50 L |
| Dimensions | 69.5 × 31 × 56 cm |
| Machine Weight | 54 kg |
Applications
Designed as a compressed-air source for compatible pneumatic filling, capping, labeling and other packaging equipment. Confirm the connected machine’s required air consumption and working pressure before purchase.
Voltage & Pricing Note: Pricing varies by voltage configuration. Select the voltage required for your installation.

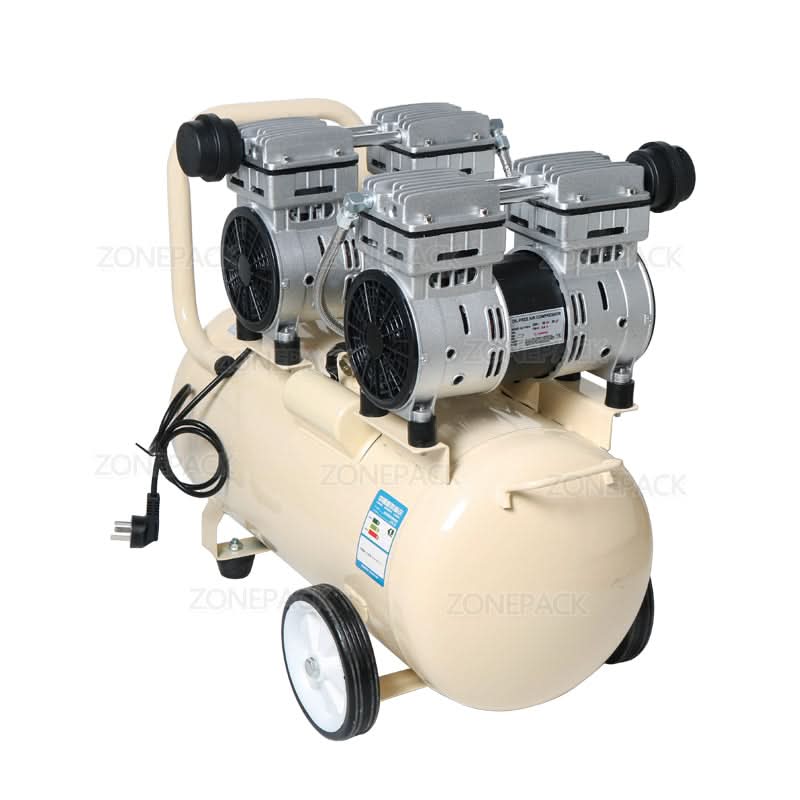

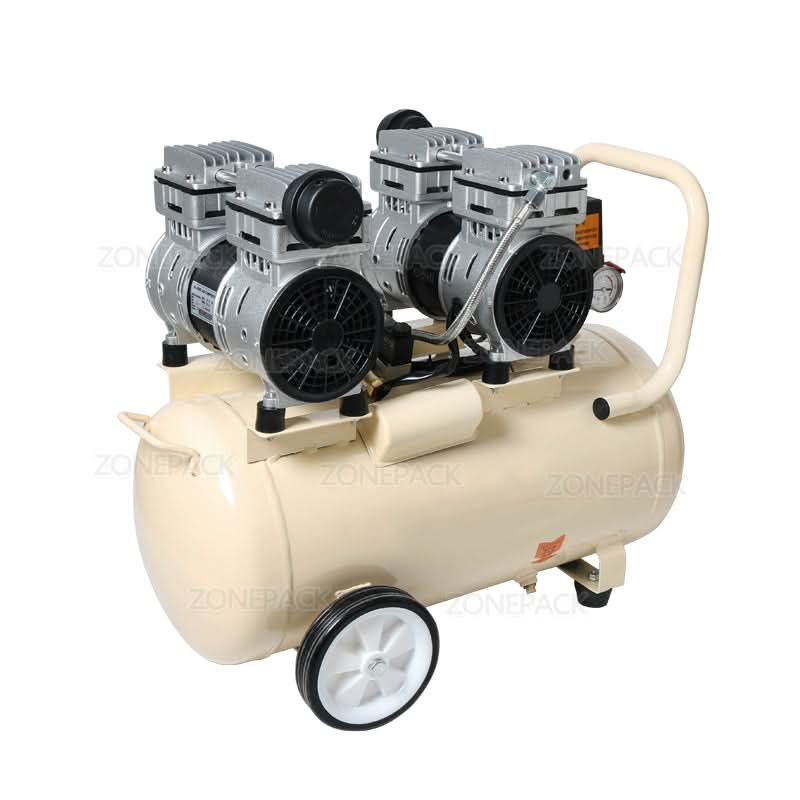

50 L OIL-FREE AIR COMPRESSOR
The compact compressor combines two motor units with a 50 L storage tank for supplying compressed air to compatible pneumatic equipment.

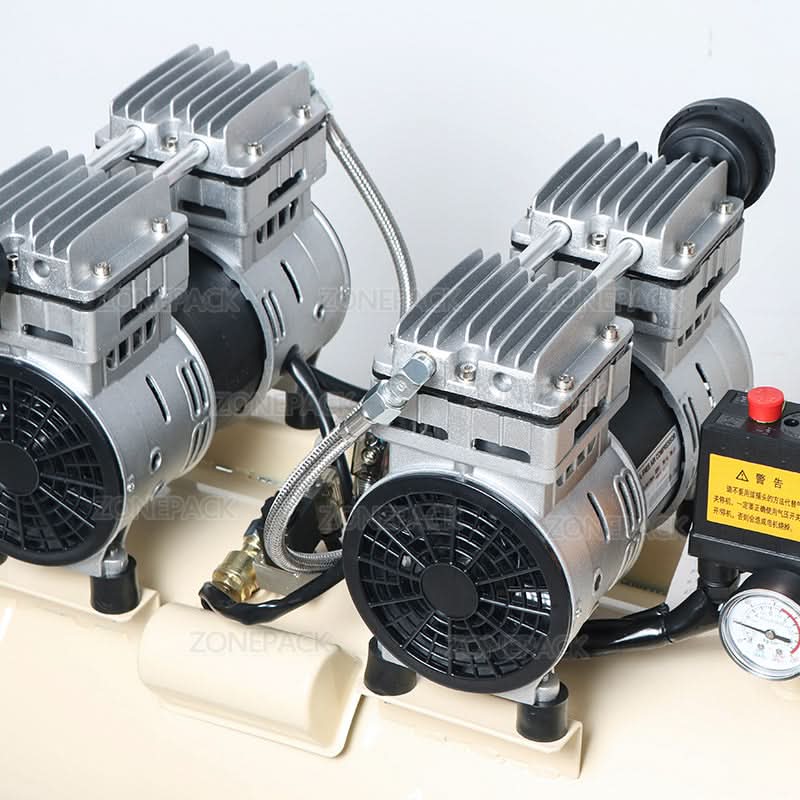

TWIN MOTOR STRUCTURE
Two 750 W motor units provide a total rated power of 1,500 W and a stated air delivery of 120 L/min.

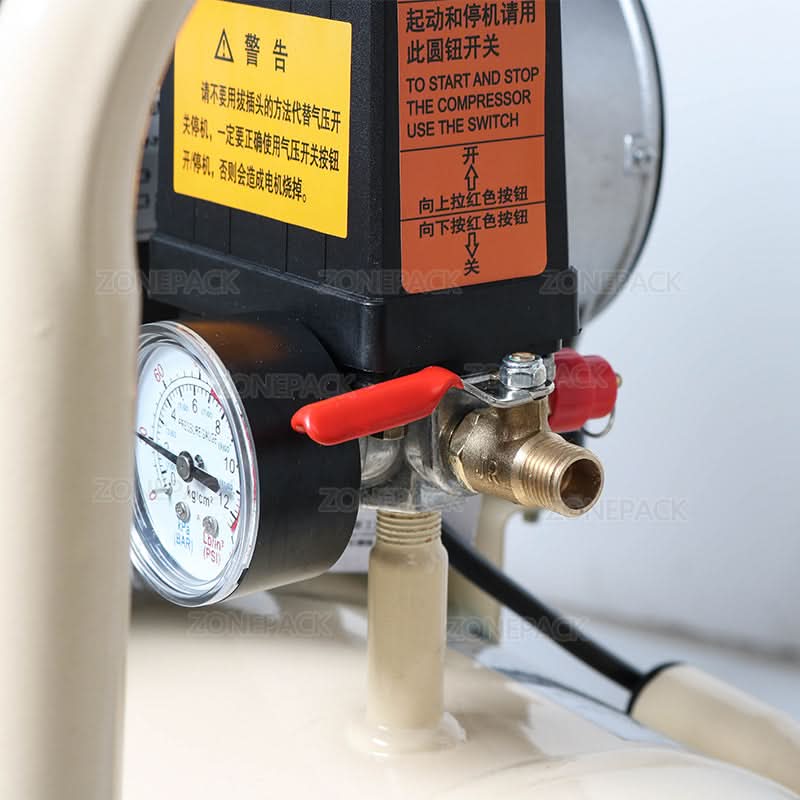

PRESSURE AND OUTLET CONTROLS
The pressure gauge supports operating-pressure monitoring, while the outlet valve provides a convenient connection point. A solenoid valve is installed to help protect the motor.

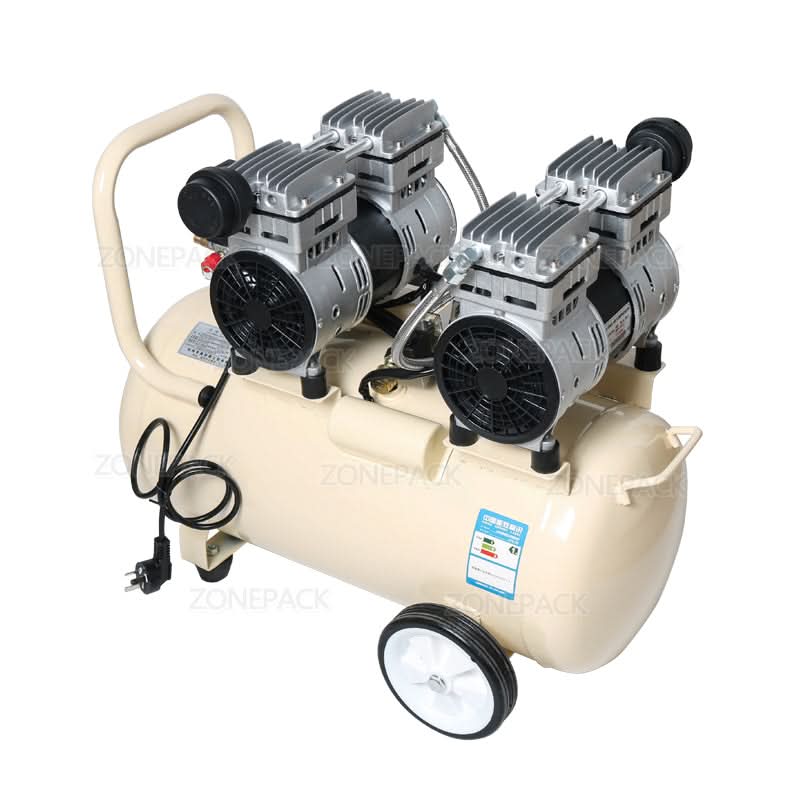

WORKSHOP MOBILITY
The integrated handle and casters make it easier to reposition the compressor around the work area.
50 L AIR STORAGE TANK
The horizontal storage tank provides a 50 L stated capacity for compatible pneumatic packaging-machine applications.
BASIC INSTALLATION
The illustrated setup shows installation of the rubber pads, casters, silencer and outlet connector, followed by connection to compatible pneumatic equipment.
