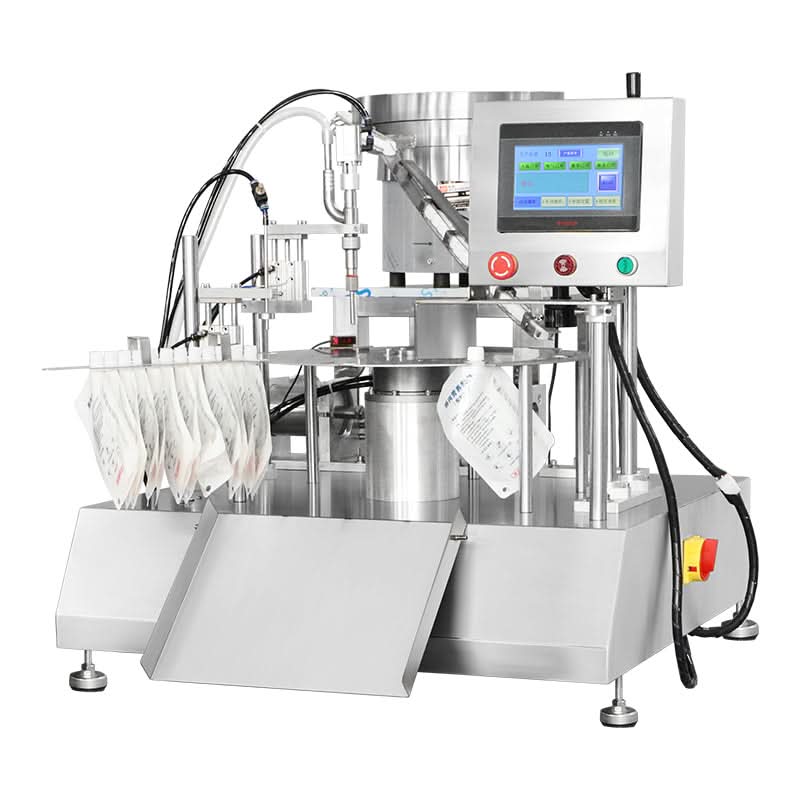

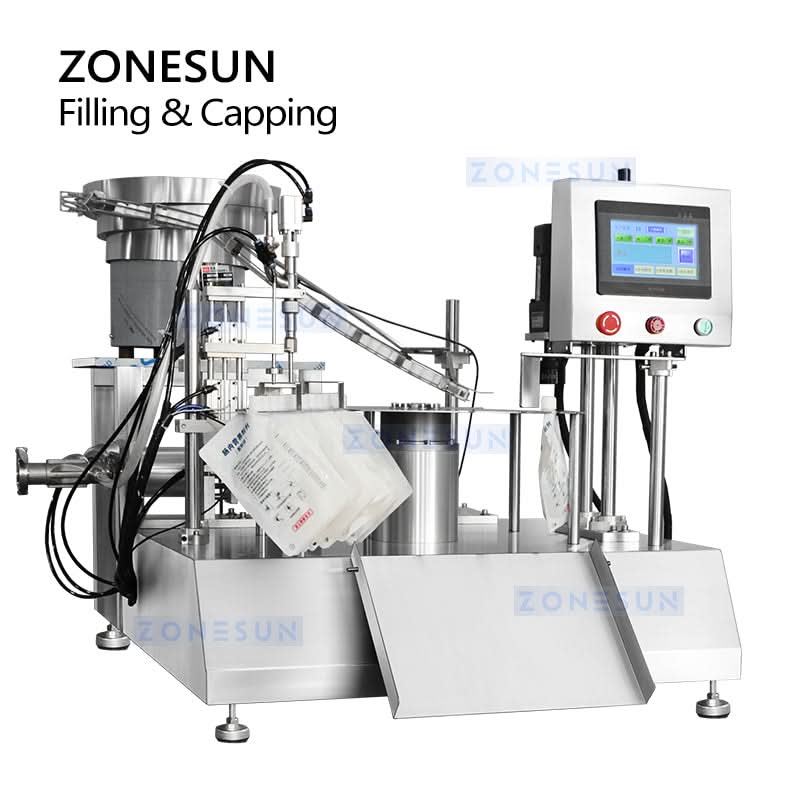

ZONESUN ZS-AFC12D Automatic Spout Pouch Liquid Filling Capping Machine

$6,549.00
Shipping calculated at checkout.
Voltage: 110v
Pre-sale Support Quality Guarantee About Shipping

Description

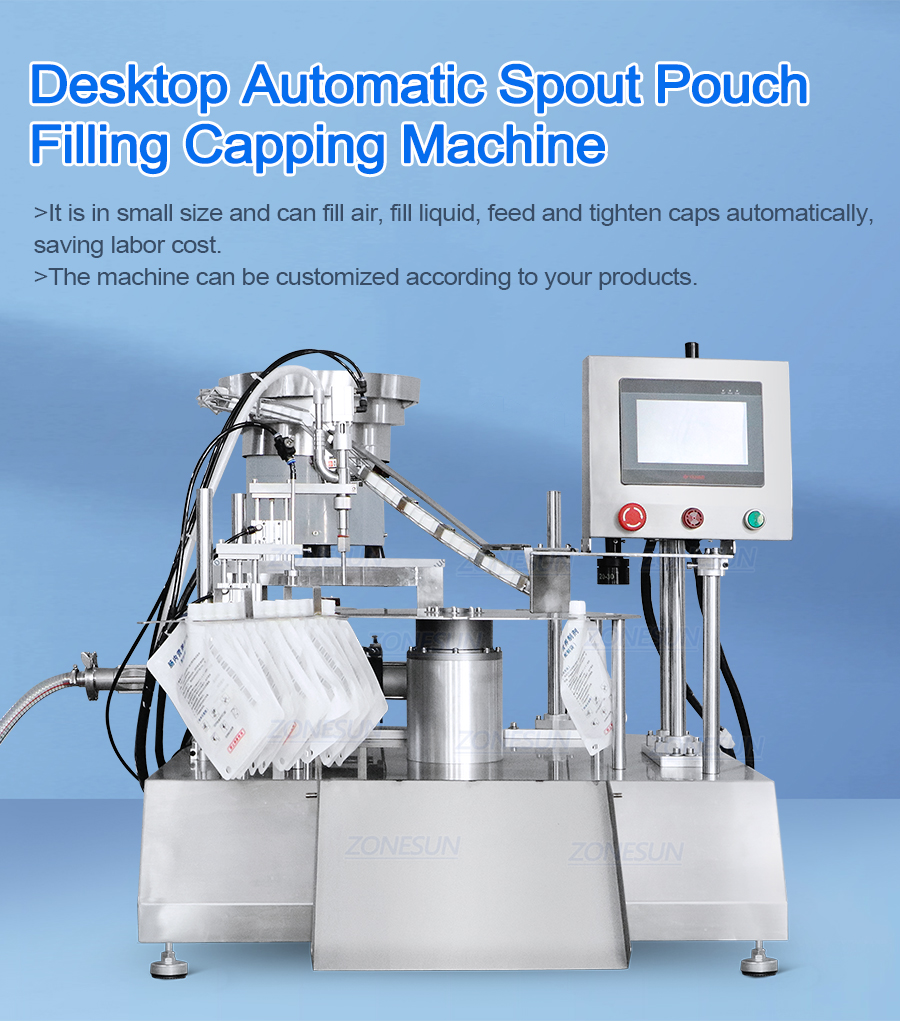

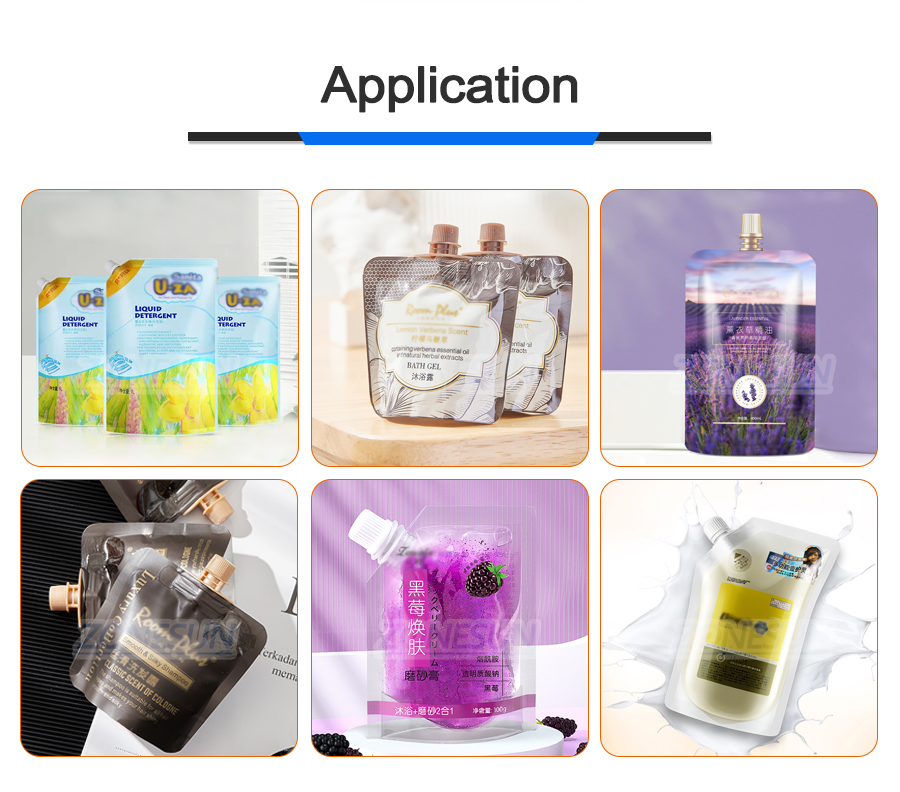

This desktop filling capping machine is designed for filling liquid into spout pouch bag like laundry detergent,essence,juice.It is equipped with piston pump,different filling range can be chosen as need.It is widely used in food,daily chemical industries.

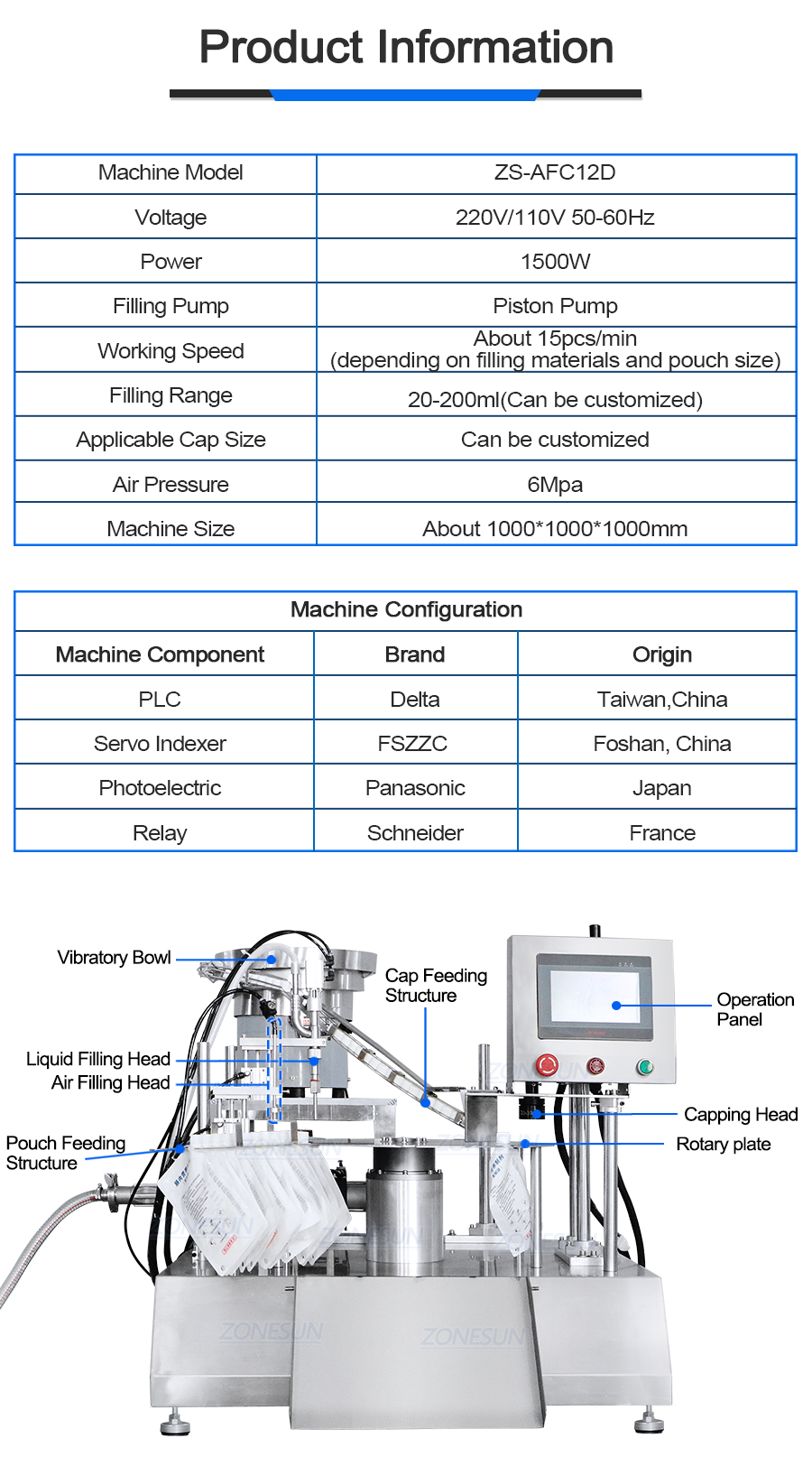

Parameter

Machine Model
ZS-AFC12D
Voltage
220V/110V 50-60Hz
Power
1500W
Filling Pump
Piston Pump
Working Speed
About 15pcs/min
(depending on filling materials and pouch size)
Filling Range
20-200ml(Can be customized)
Applicable Cap Size
Can be customized
Air Pressure
0.6Mpa
Machine Size
About 1000*1000*1000mm
Package size
About 1200*1000*1400mm
Gross weight
About 250kg
Machine Configuration
Machine Component
Brand
Origin
PLC
Delta
Taiwan,China
Servo Indexer
FSZZC
Foshan, China
Photoelectric
Panasonic
Japan
Relay
Schneider

France









PRODUCT DETAILS

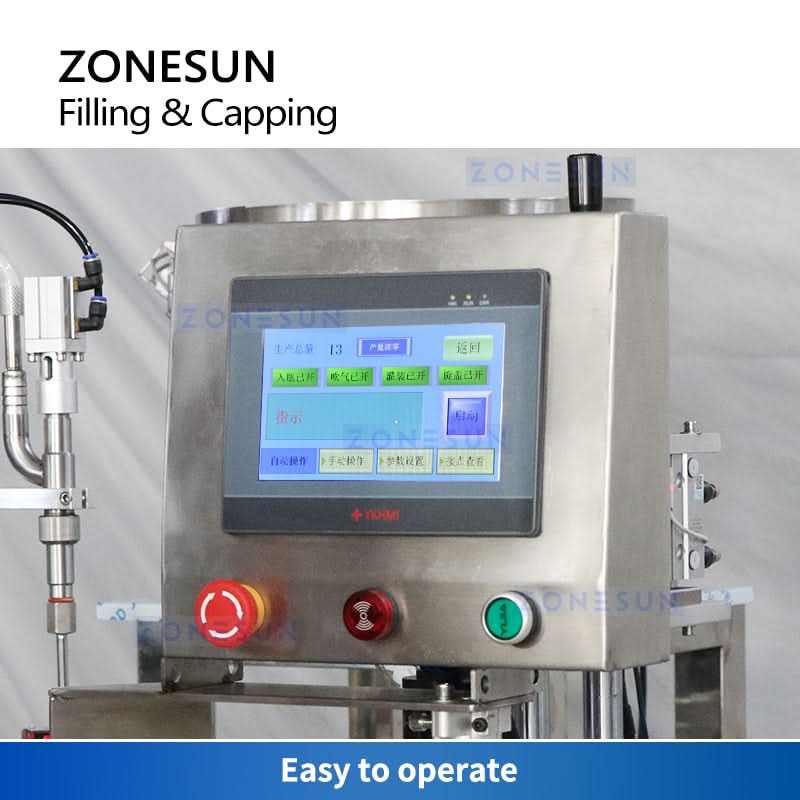

Control Panel of Spout Pouch Filling Capping Machine

Through PLC operation panel, it is easy to set or adjust working parameters. The language of panel can be customized as your need.

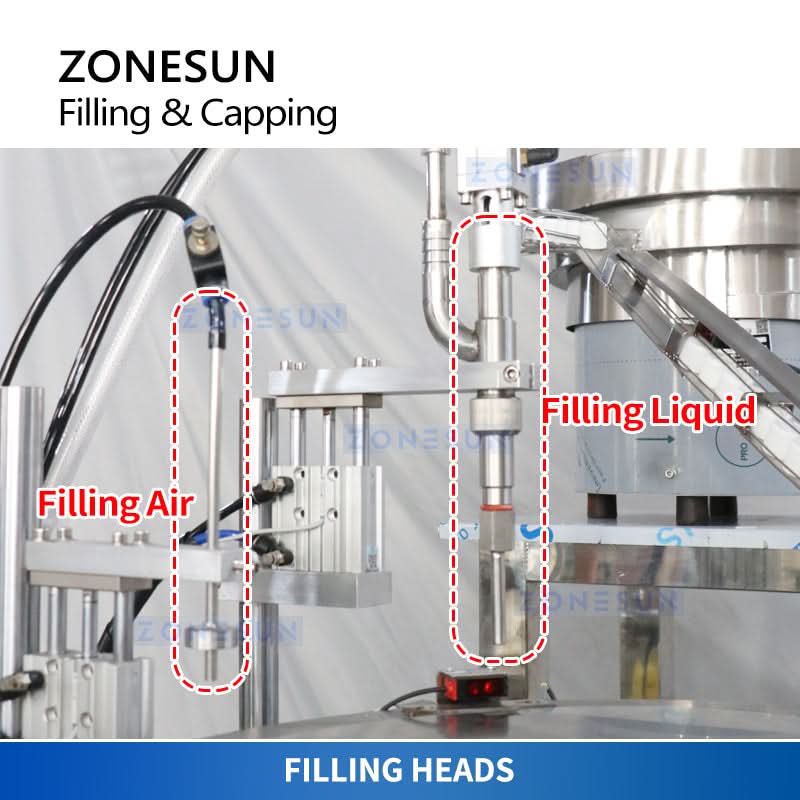

Filling Nozzle of Spout Pouch Filling Capping Machine

The left filling head is for filling air and the right one is for filling liquid. Driven by piston pump, it can fill liquid like laundry detergent, oil. Filling range can be customized according to production need.

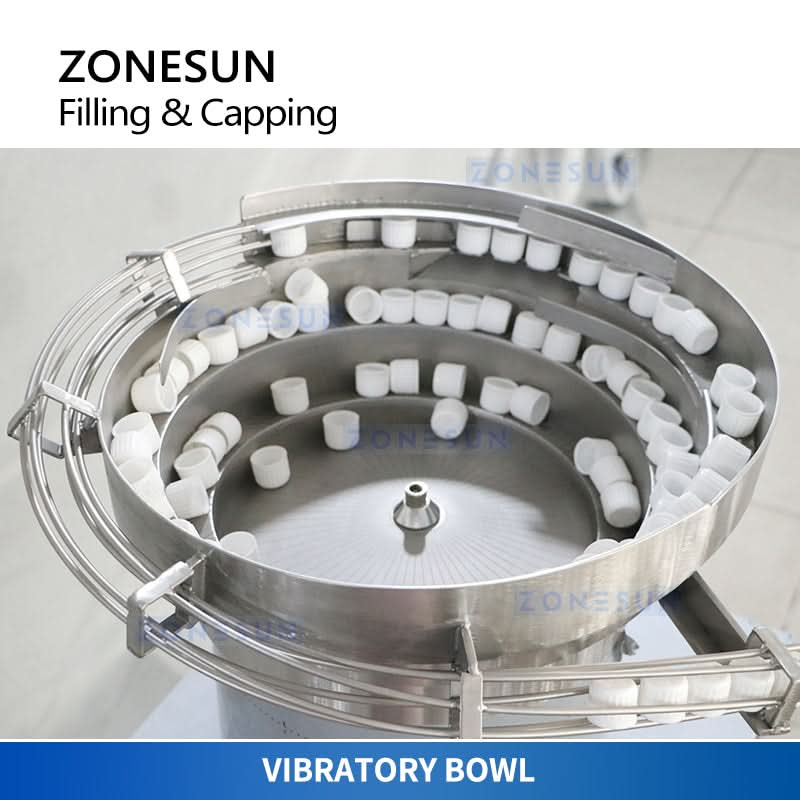

Vibratory Bowl Sorter of Spout Pouch Filling Capping Machine

The vibratory bowl can arrange caps in order and feed them automatically, saving labor cost. It can be customized according to cap size.





Motor of Spout Pouch Filling Capping Machine

The capping head is suitable for tightening screw-type caps. With powerful motor, it can run steadily. It can be customized according to cap size.

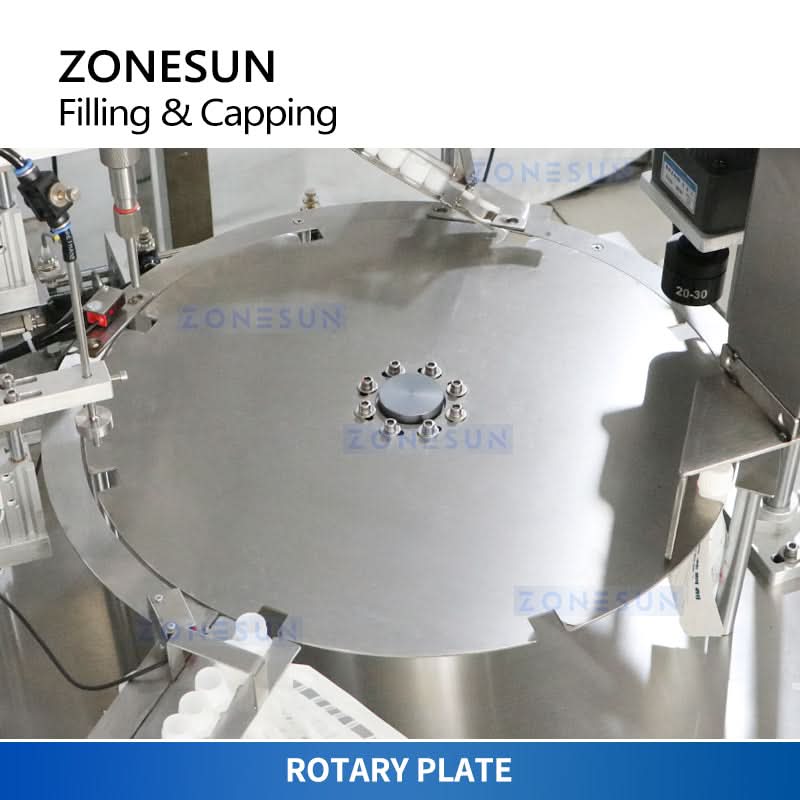

Rotary Plate of Spout Pouch Filling Capping Machine

The rotary plate is designed for conveying spout pouch during production. It can be customized according to pouch size.





Spout Pouch Filling Capping Machine For Juice
