ZONESUN ZS-S104-F Automatic carton machine
- Specifications
|
Name |
Automatic carton machine |
|
Customer requirement |
1) How to seal the carton： insert the pages on two sides (glue sprayed) |
|
2) Working speed: 30 to 40 cartons / min |
|
|
3) Process requirement：materials has to be put manually at the beginning of the machine. The machine will put the instruction/manual brochure into the carton and seal the carton automatically. |
|
|
4) Working direction：from left to right |
|
|
Carton Requirement |
165*45*33mm、158*41*30mm、132*40*27mm |
|
Voltage/power |
220V/50Hz |
|
Features |
PLC microcomputer full-automatic control and man-machine interface operation system are adopted to automatically display the performance parameters such as packing speed, quantity and fault cause. The body is made of high-quality stainless steel, carbon steel and aluminum. |
|
Remark |
It is recommended to use 250-350g / m2 white cardboard. The indentation of the carton is generally 0.4mm deep, and the carton needs to have pre folding effect. If the box is opened manually, it cannot be formed, and the machine cannot open the carton. |
- Model introduction of cartoning machine
Performance characteristics
- PLC microcomputer automatic control is adopted.
- The man-machine interface operating system is adopted to automatically display the box loading speed, quantity, fault cause and other performance parameters,
- The body is made of high-quality stainless steel, baking paint and aluminum
- Multiple specifications can be adjusted and used within the specified range of the same equipment.
- Manual and automatic conversion functions.
Touch screen man-machine interface operation PLC microcomputer control
- Main parameter
|
Power supply: |
220V/50Hz |
|
Power KW: |
1000 - 4000 w （Subject to actual conditions） |
|
Applicable paper tray |
165*45*33mm 158*41*30mm 132*40*27mm |
|
Working speed |
25-40 boxes/min |
|
Weight: |
About 1500 KG |
|
Carton requirement |
The indentation of carton is generally 0.4mm deep, and the carton needs to have pre folding effect. If the box is opened manually, it cannot be formed, and the machine cannot open the carton. |

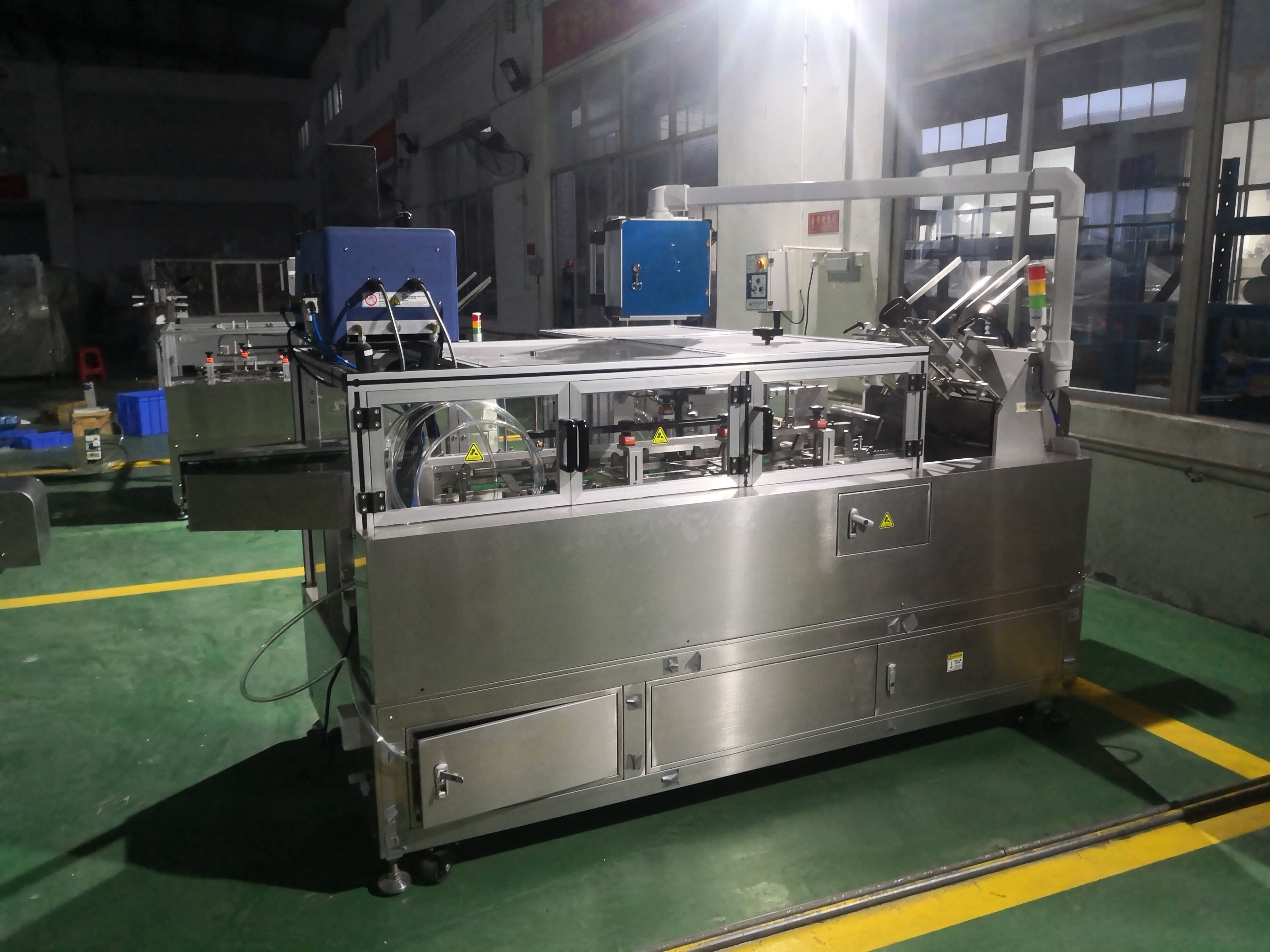

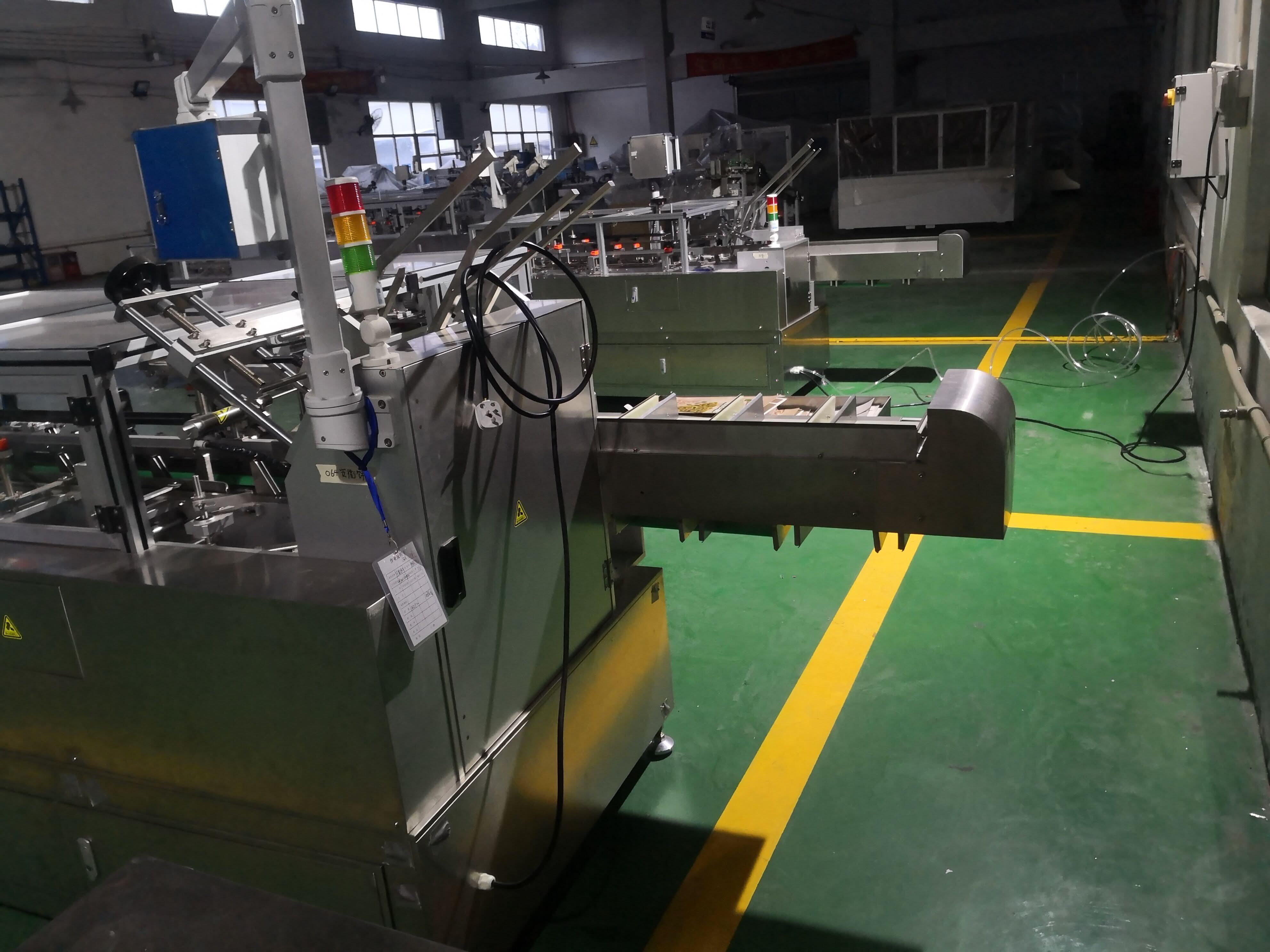

- Working flow chart and equipment appearance diagram of automatic cartoning machine
- Schematic diagram of product cartoning process
- Cartoning machine equipment plan
3)Feature Description:
- a. The front end manually puts materials, and the equipment automatically puts down the packaging forms of manual, automatic box suction, box opening, box loading, ear folding, box inserting (glue spraying), box sealing, molding, etc.
- b. Servo / stepper motor, touch screen and PLC programmable control system are adopted. The display and operation of man-machine interface are clearer and simpler, with a high degree of automation and more humanization.
- c. The photoelectric eye automatic detection and tracking system is adopted to save packaging materials to the greatest extent.
- Main configuration of supporting equipment of automatic cartoning machine
|
NO. |
Name |
Brand |
|
1 |
Main body |
Stainless steel, steel and aluminum |
|
2 |
Electric elements |
Schneider / OMRON |
|
3 |
PLC |
Siemens / MITSUBISHI |
|
4 |
Touch screen |
Siemens / MITSUBISHI |
|
5 |
Pneumatic component |
Taiwan Yadeke Airtac |
|
6 |
Bearing |
Luoyang / Harbin |
|
7 |
Frequency converter |
Delixi |
|
8 |
Servo motor |
Mitsubishi / Panasonic / Delixi |
|
9 |
Glue spraying machine |
domestic |
