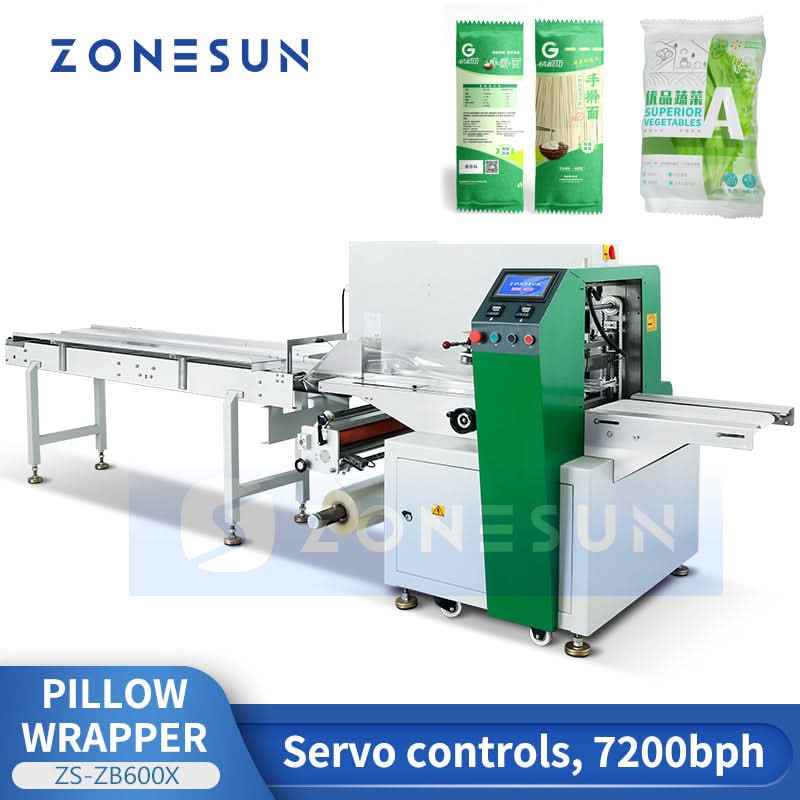

ZONESUN ZS-ZB600X Automatic Horizontal Pouch Bag Sealing Packaging Machine

$4,997.00
Shipping calculated at checkout.
Pre-sale Support Quality Guarantee About Shipping

DESCRIPTION

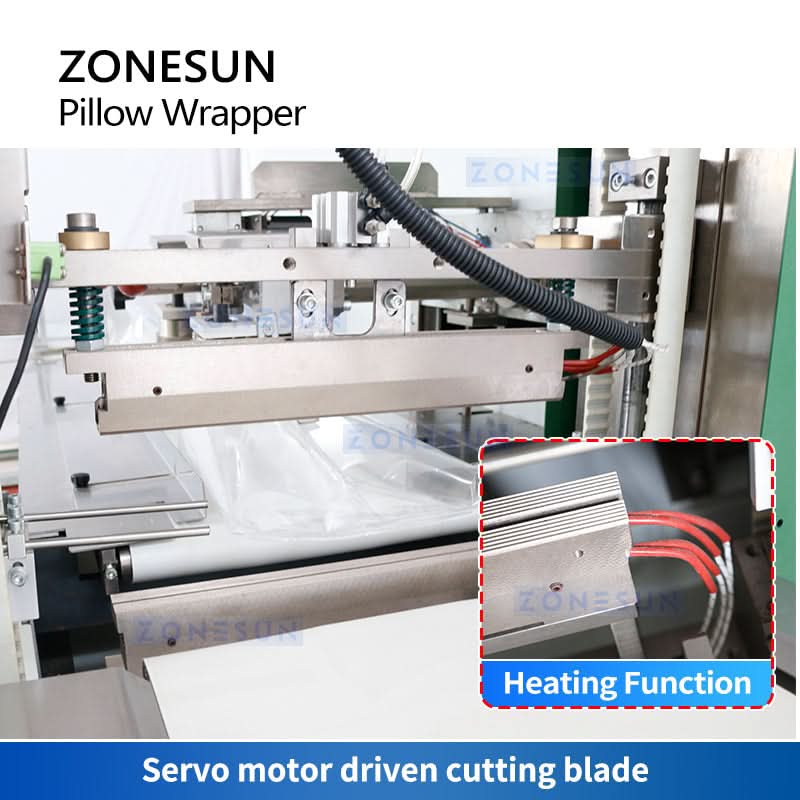

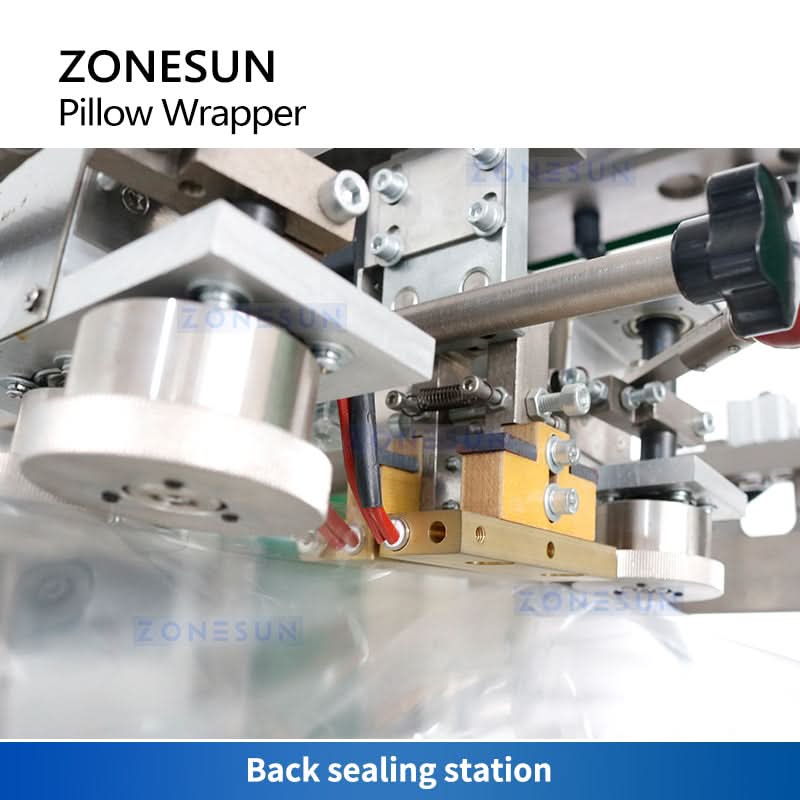

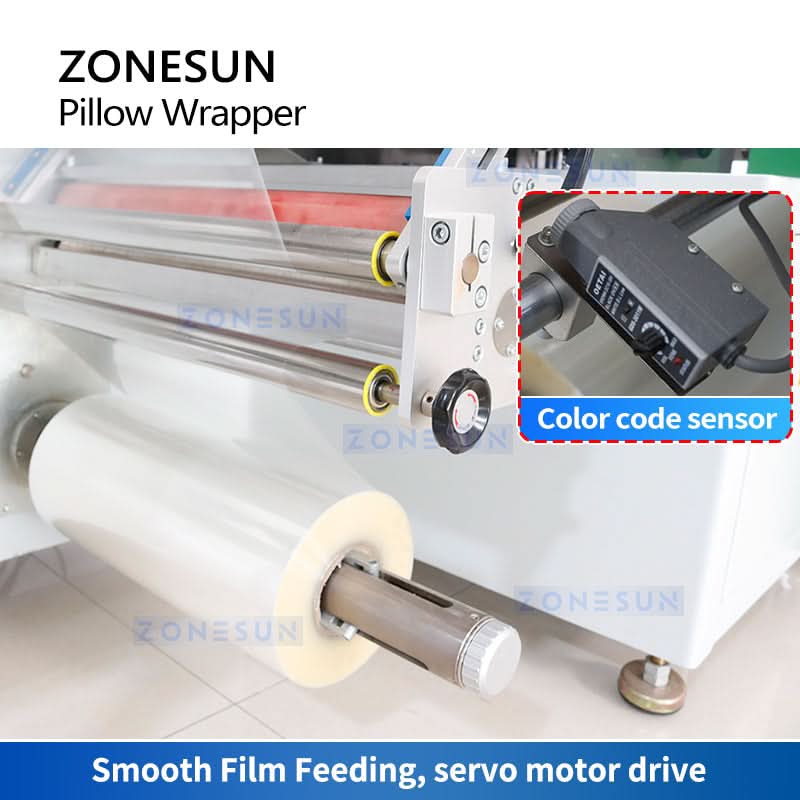

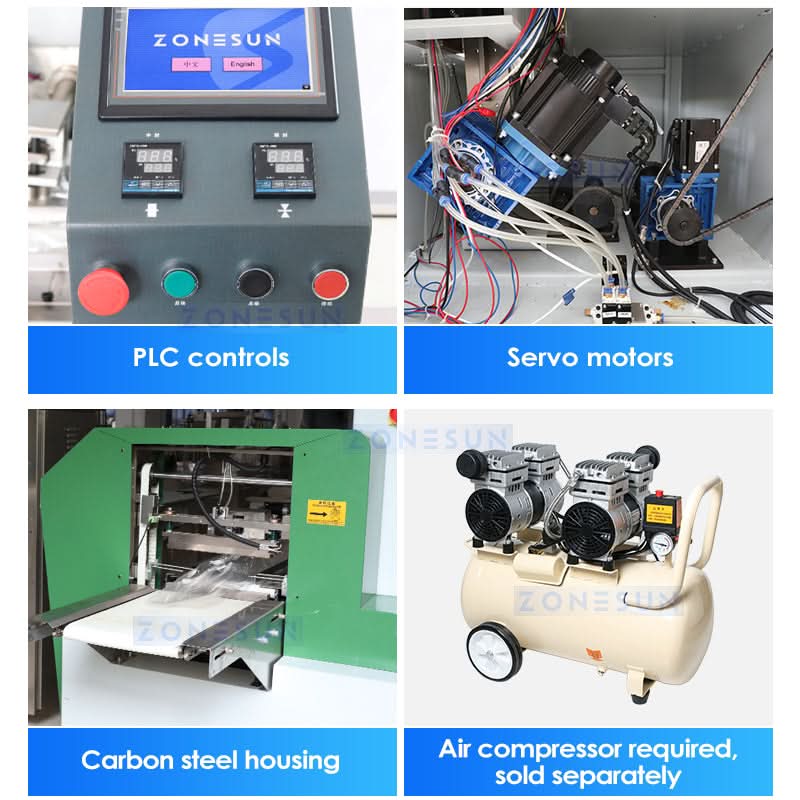

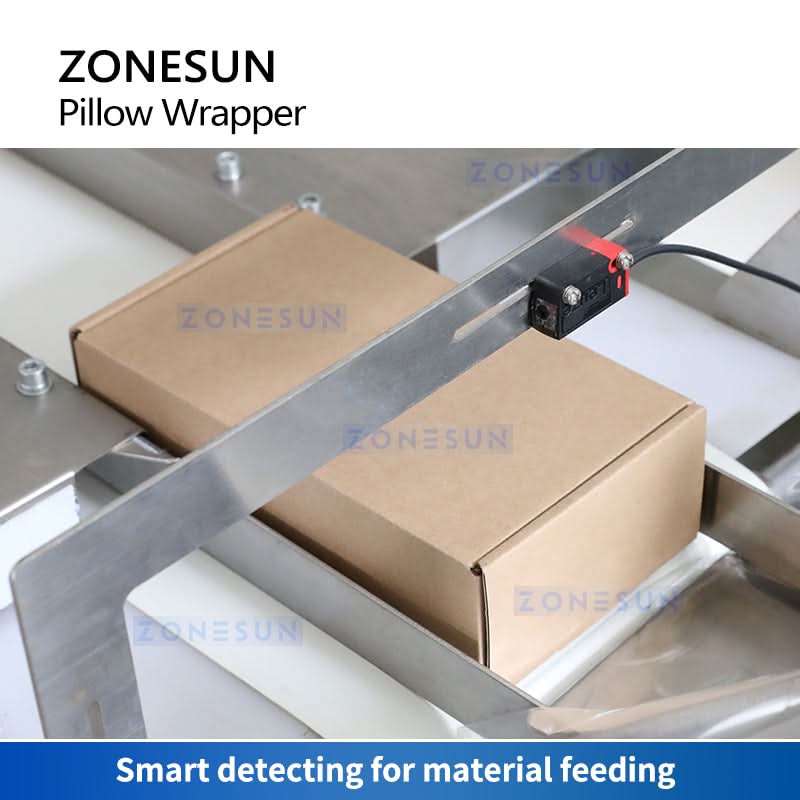

Introducing our latest product, a pillow packaging machine. This machine is designed to package various materials with a maximum film width of 600mm. Whether your film has color codes or not, our machine can handle it. The film roll is placed on top of the machine, and it uses an upward film feeding method. Equipped with 3 servo motor, this machine is highly efficient and accurate. During operation, the materials are placed on the conveyor belt and transported through the wrapping mechanism, wrapped in film, and then sealed. The blade cuts the material according to their lengths for packaging.

Whatever your packaging needs are, you can rely on ZONESUN.



PARAMETER

Model

ZS-ZB600X

Packing Size

Length: 180-450mm

Width: 90-220mm

Height: ≤120mm

Capacity

30-120bags/min

Voltage

110V/220V, 50Hz/60Hz

Film
Roll

Width≤600mm

Diameter≤320mm

Power

3kW

Weight

800kg

Size

4245*1152*1335mm
