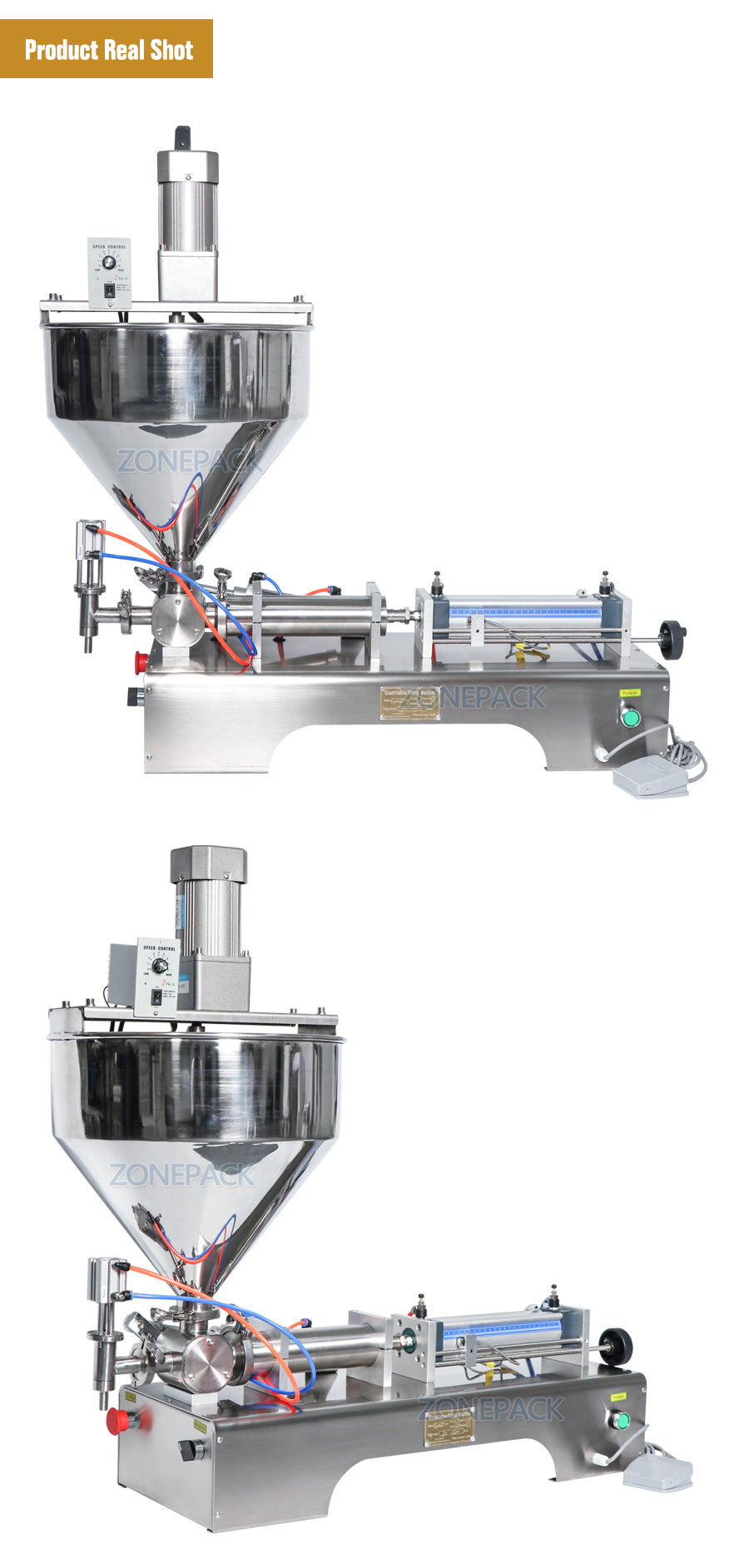

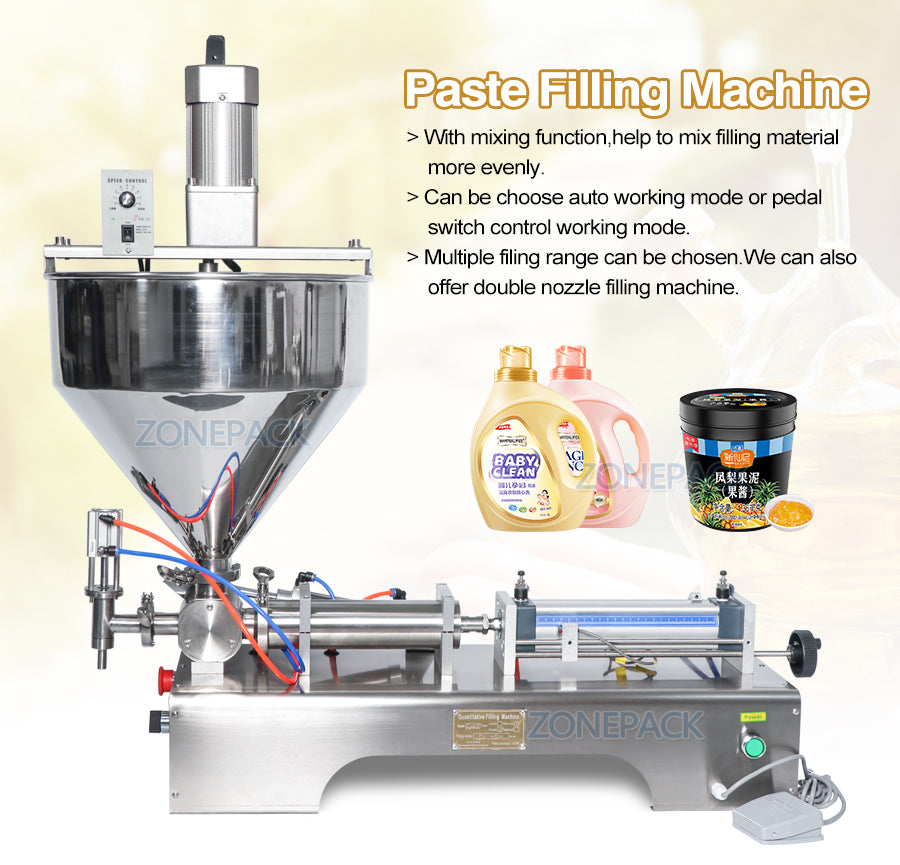

The ZONESUN ZS-GTJ is a pneumatic paste filling machine engineered for ultra-viscous materials — including peanut butter, sauces, creams, and gels. Built with food-grade stainless steel and a precision rotary valve system, it delivers accurate, drip-free filling with minimal maintenance. A 30L hopper is standard, and the machine supports extensive customization including mixer integration, heated hopper, and multi-head configurations.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ZS-GTJ |
| Filling Nozzle | Single Nozzle (Double Nozzle available) |
| Filling Speed | 5–25 bottles/min |
| Filling Range | 10–100 ml / 10–200 ml / 20–300 ml / 50–500 ml / 100–1000 ml / 300–2500 ml / 500–2500 ml / 1000–5000 ml |
| Filling Accuracy | ±0.5%–2% |
| Rotate Speed | 0–1700 r/min |
| Air Pressure | 0.4–0.6 MPa |
| Air Capacity | >30 L |
| Machine Dimensions (L×W×H) | 773 × 280 × 910 mm |
| Net Weight | 34.5 kg |
| Gross Weight | 39.5 kg |
| Packing Size | 930 × 360 × 335 mm & 440 × 455 × 505 mm |
Key Highlights
- Handles Ultra-Viscous Materials: Rotary valve piston design fills peanut butter, honey, thick creams, gels, and pastes without clogging or dripping.
- Food-Grade Stainless Steel Construction: All product-contact parts meet food, cosmetic, and pharmaceutical hygiene standards.
- Wide Filling Range: 8 volume variants from 10 ml to 5000 ml cover small-batch cosmetics to large-volume food production.
- High Accuracy: ±0.5%–2% filling precision reduces material waste and ensures consistent output.
- Customizable Configuration: Optional mixer, heated hopper, double nozzle, and multi-head setups available for tailored production lines.
- Easy Operation & Maintenance: Simple pneumatic controls with quick-disassembly nozzle for fast cleaning and changeover.
- Broad Industry Compatibility: Suitable for food & beverage, cosmetics, chemicals, and pharmaceutical paste filling applications.

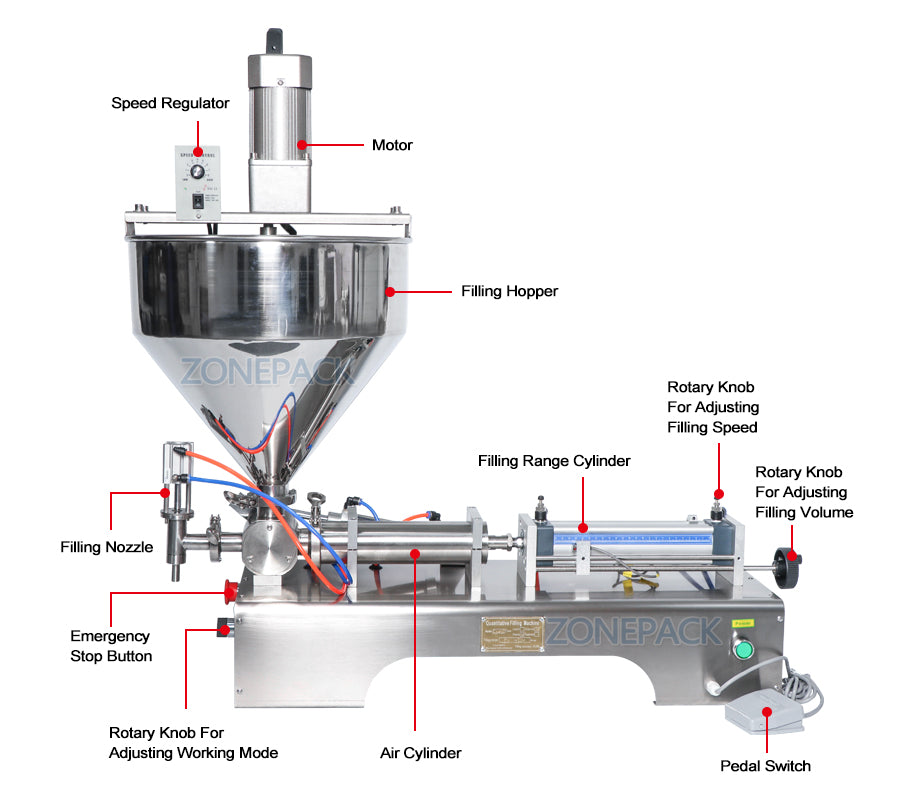

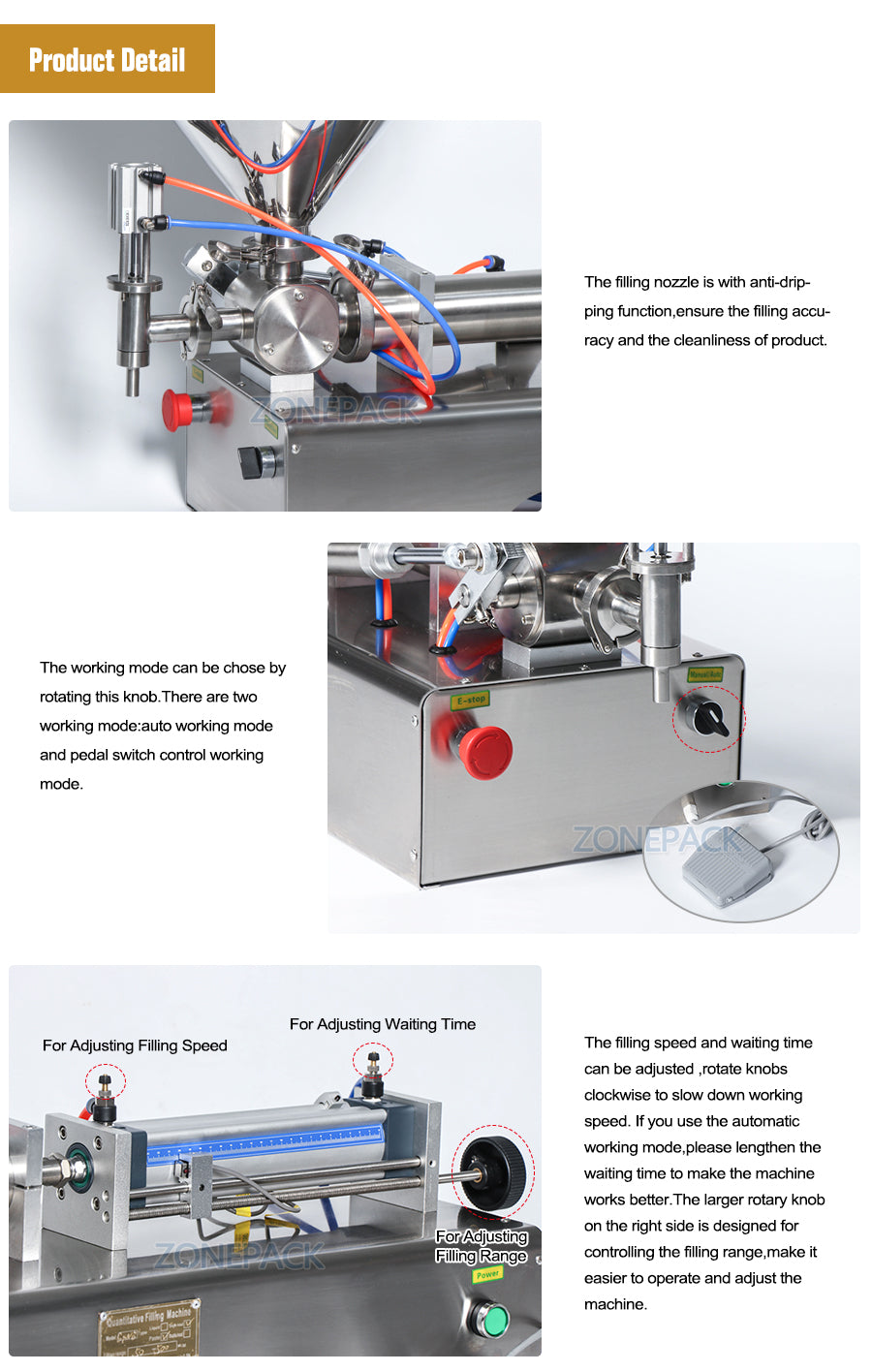

ANTI-DRIP FILLING NOZZLE
The anti-drip nozzle supports accurate filling while helping keep the work area clean.
FILLING NOZZLE
Equipped with anti-dripping design to ensure filling accuracy and maintain product cleanliness.
WORKING MODES
Turn the selector knob to switch between automatic operation and pedal-controlled operation.
WORKING MODE
Can be chosen by rotating this knob, with two working modes: auto mode and pedal switch control mode.
ADJUSTMENT CONTROLS
Separate controls allow operators to adjust filling speed, waiting time, and filling range for stable operation.
ADJUSTMENT KNOBS
Knobs for adjusting filling speed, waiting time, and filling range, ensuring flexible and stable operation.

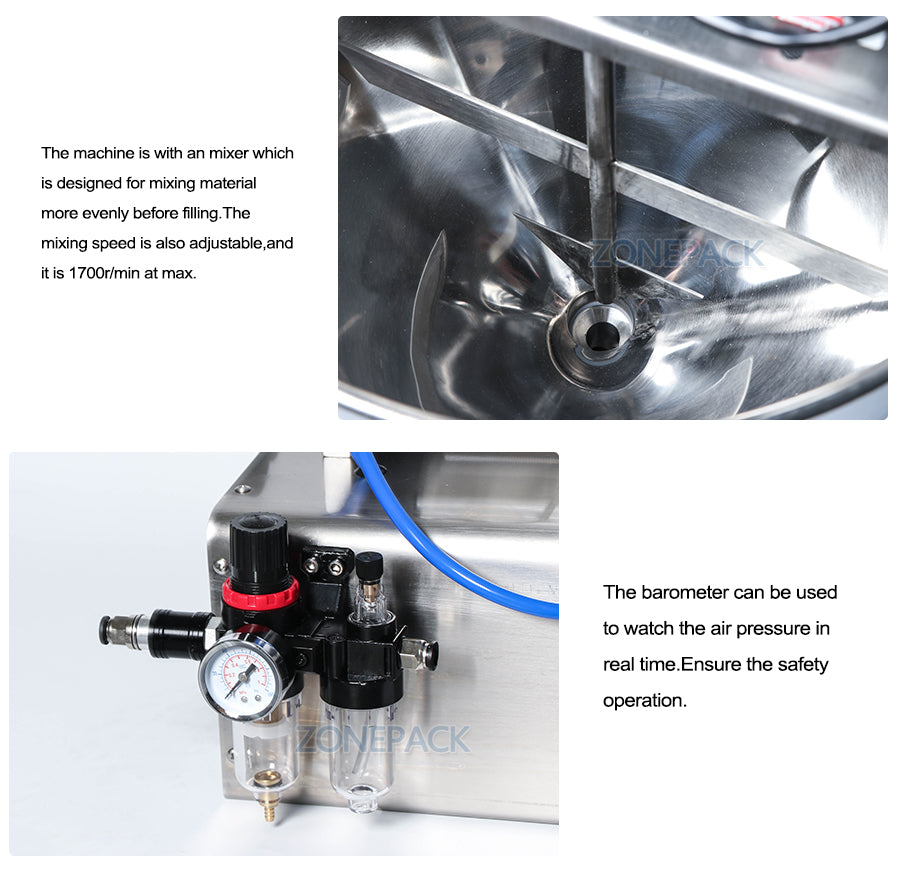

MIXER
The mixer blends the material evenly before filling, with adjustable speed up to 1,700 rpm.
MIXER
Mixer designed for even material blending before filling, with adjustable speed up to 1700 r/min.
AIR PRESSURE GAUGE
The gauge provides real-time air-pressure monitoring to support safe operation.
BAROMETER
The barometer can be used to watch the air pressure in real time. Ensure the safety operation.
