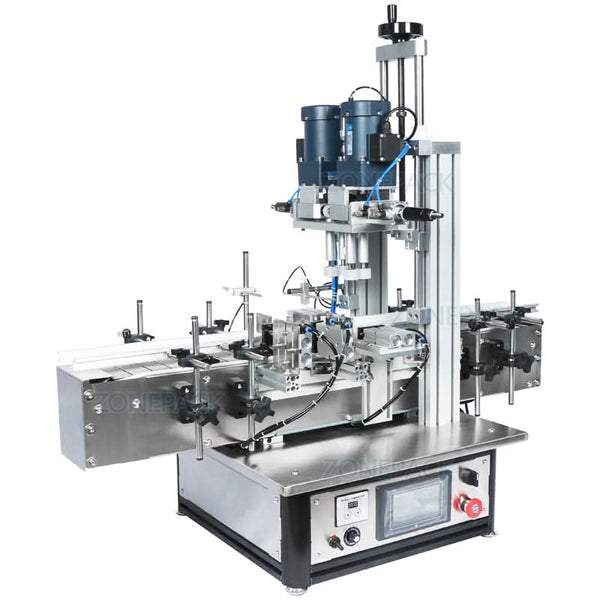

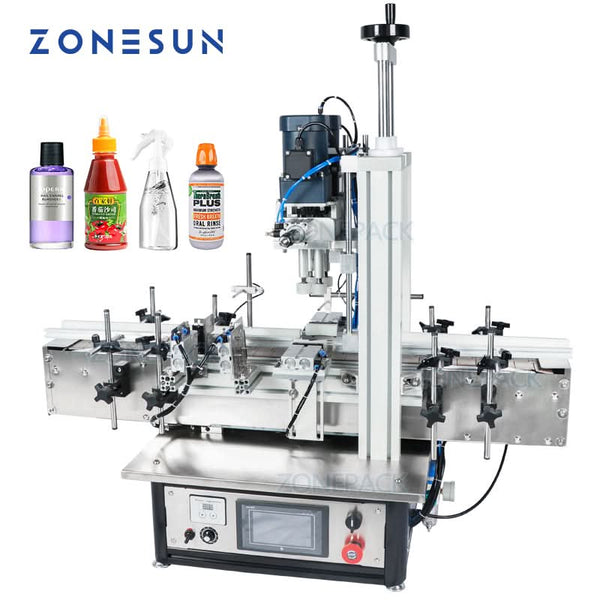

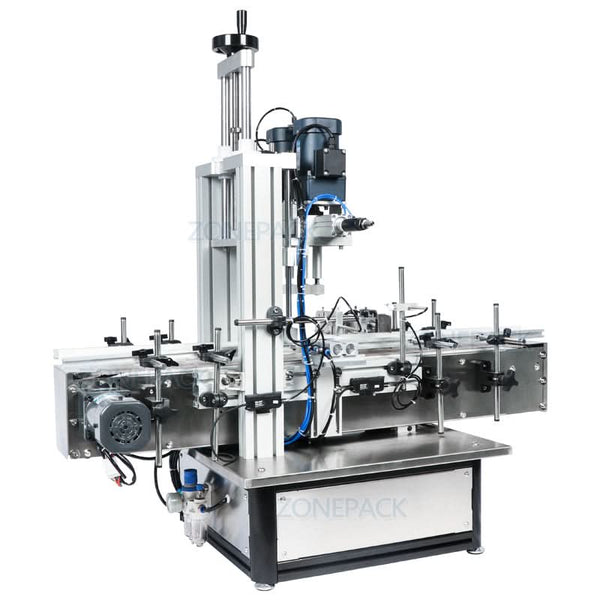

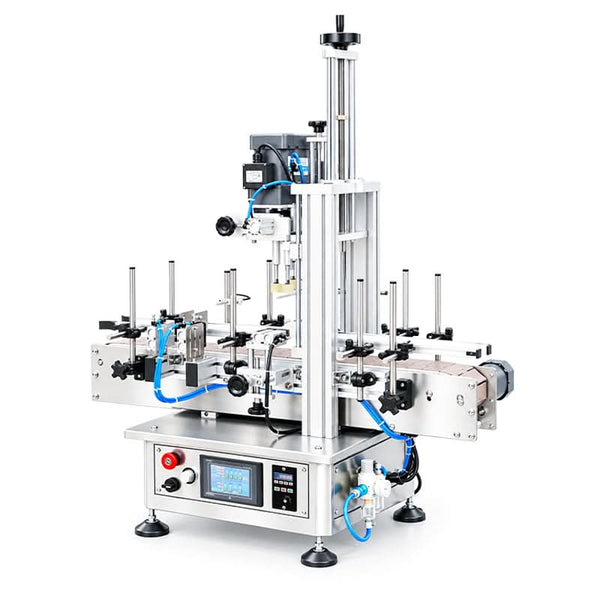

The ZONESUN ZS-XG1870 is a desktop pneumatic spindle capping machine for screw caps. It supports cap diameters of 18–70 mm and bottle heights of 60–270 mm, with a working speed of 20–40 bottles per minute depending on the bottle and cap size. A touchscreen control panel, bottle detection and holding system, and adjustable capping height support machine setup and operation.
Important Note
This machine requires an air compressor, which must be purchased separately.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZS-XG1870 |
| Suitable Bottle Height | 60–270 mm |
| Suitable Cap Diameter | 18–70 mm |
| Working Speed | 20–40 bottles/min (depending on bottle and cap size) |
| Working Voltage | AC 220 V / 110 V, 50–60 Hz |
| Working Air Pressure | 0.4–0.6 MPa |
| Machine Dimensions (L × W × H) | 1120 × 580 × 1110 mm |
| Conveyor Length | 1117 mm |
| Package Weight | 97.5 kg |
| Package Dimensions (L × W × H) | 1160 × 610 × 1140 mm |
| Air Compressor Connector Size | OD 8 mm |

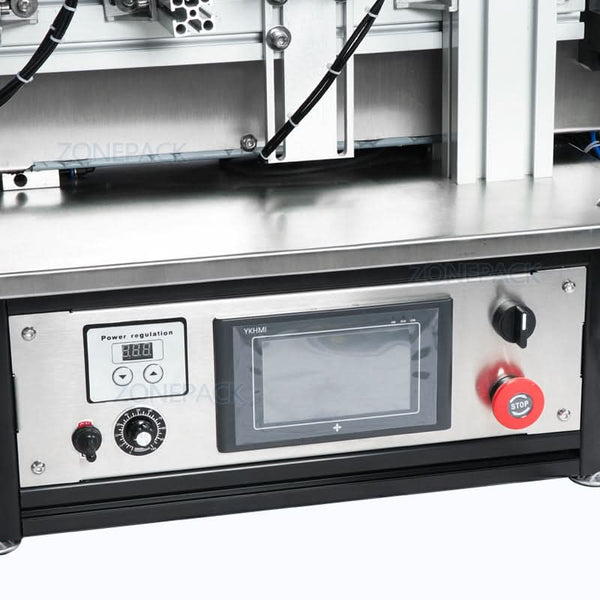

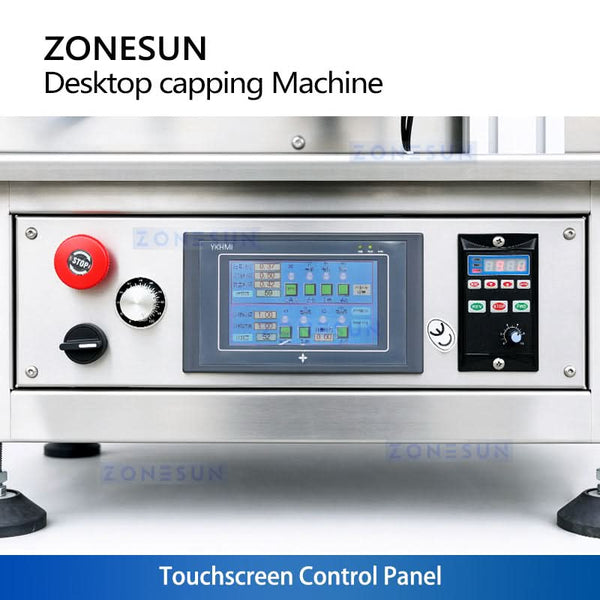

Touchscreen Control Panel
The touchscreen provides an intuitive interface for setting parameters and operating the machine.

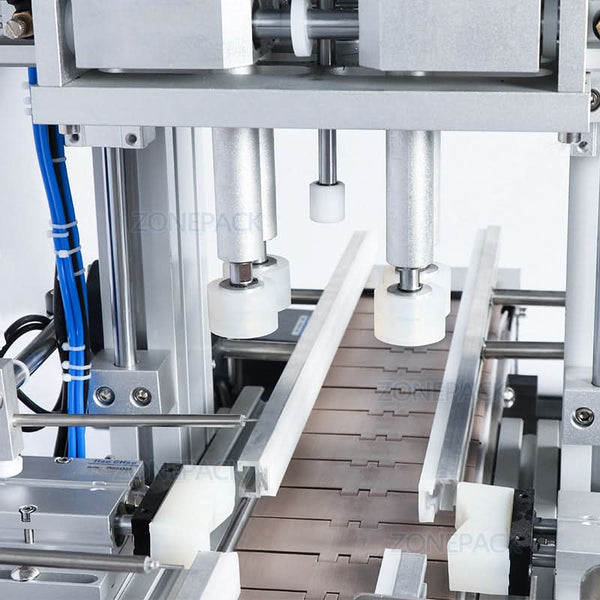

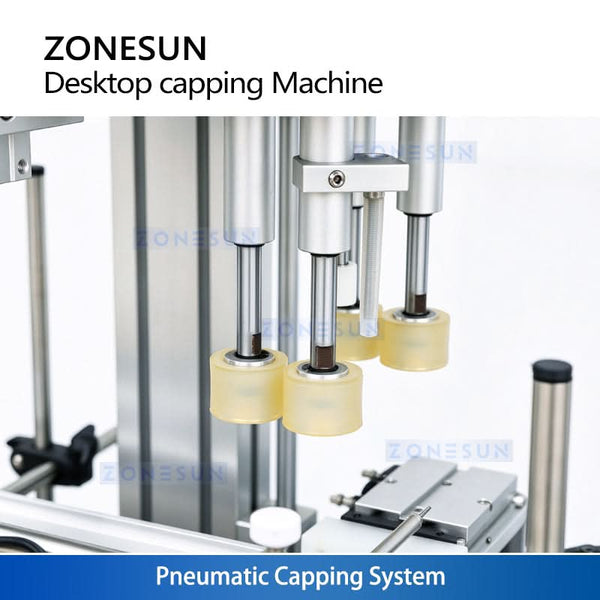

Pneumatic Capping System
The pneumatic system presses and tightens caps for consistent capping. It can be customized for different cap shapes and sizes, including e-liquid, spray, and beverage bottle caps.

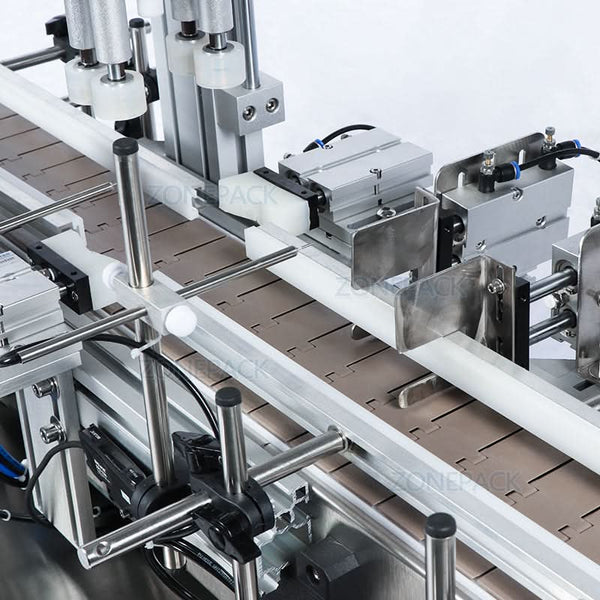

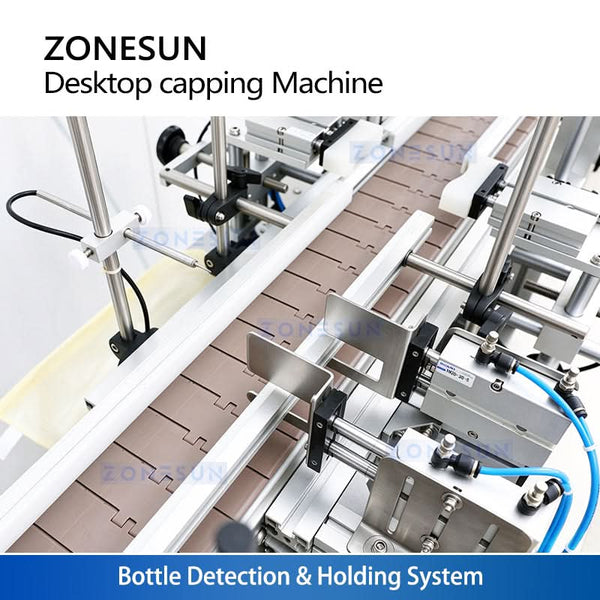

Bottle Detection & Holding System
The system detects incoming bottles and holds them securely in position during capping for stable, accurate operation.

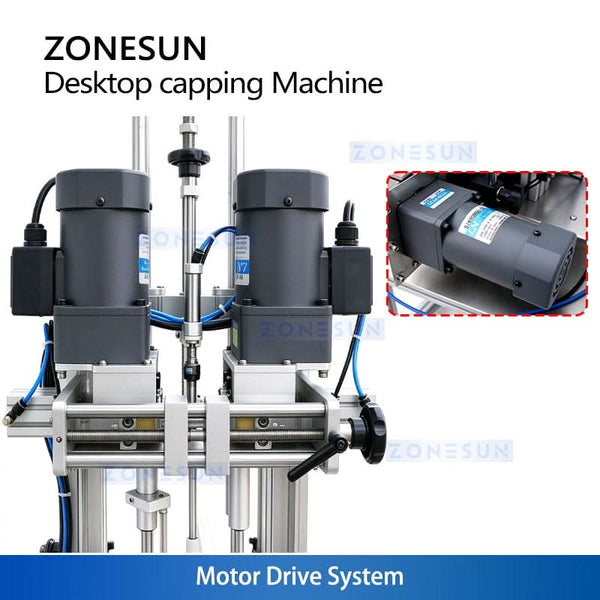

Motor Drive System
The capping motors and conveyor motor are separate, supporting stable and safe machine operation.

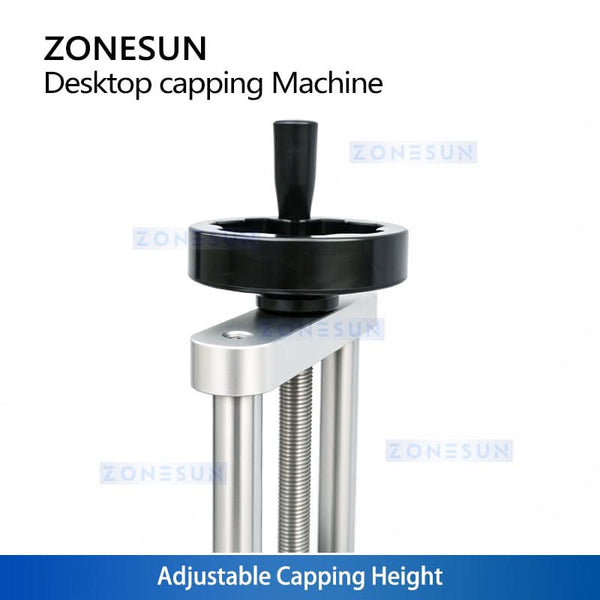

Adjustable Capping Height
Use the rotary knob to adjust the capping height for bottles of different heights.
Air Pressure Gauge
The gauge displays air pressure in real time. This machine requires an air compressor, which must be purchased separately. Please contact us if you need one.
