DESCRIPTION

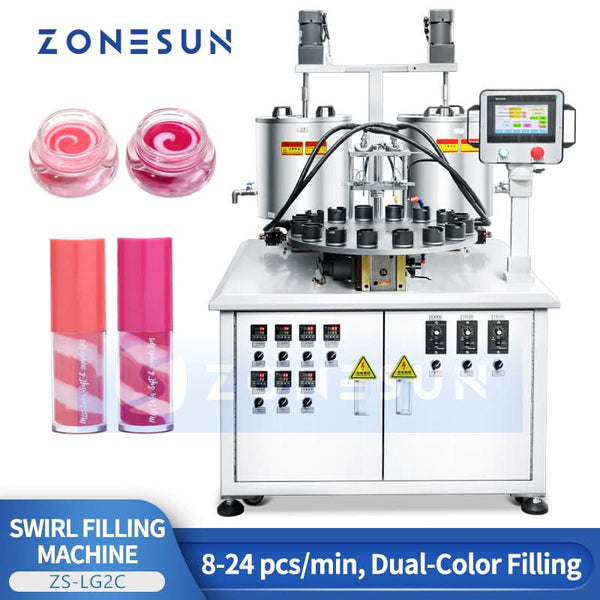

The ZONESUN ZS-LG2C High Precision Dual-color Spiral Filling Machine is specifically designed for high-viscosity cosmetic and paste products such as lip gloss, eye shadow cream, and medical ointments. Equipped with dual auger feeding and spiral dispensing technology, it enables synchronized two-color filling for premium product aesthetics. This intelligent system features a servo-driven rotating platform, high-accuracy filling nozzles, and PLC-controlled operation for consistent output, speed, and container adaptability in modern production lines.
Parameter
| Parameter | ZS-LG2C |
|---|---|
| Machine Model | ZS-LG2C |
| Voltage | AC 380 V / 220 V, 50 Hz |
| Power | 5.4 kW |
| Filling Speed | Approx. 8–24 pcs/min |
| Filling Range | 3–20 ml |
| Filling Pump | Servo Piston Pump |
| Filling Accuracy | ±0.1 ml |
| Feeding Hopper | 20 L, SUS 304 |
| Heating Temperature | 0–150°C (Recommended: 80–120°C) |
| Stirring Speed | 0–65 r/min |
| Material Contact Parts | SUS 304 |
| Air Consumption | 3–6 kg/cm² |
| Machine Dimensions (L × W × H) | Approx. 1350 × 900 × 1900 mm |
| Machine Weight | Approx. 300 kg |
| Package Dimensions (L × W × H) | Approx. 1170 × 1100 × 1740 mm |
| Package Weight | Approx. 348 kg |
Touchscreen Control Panel: The user-friendly touchscreen allows easy parameter adjustment, with customizable interface languages available.
Servo-Controlled Swirl Filling: Two materials are dispensed while the container rotates during filling, creating consistent dual-color swirl patterns.
Dual Heating and Mixing Hoppers: Two SUS304 hoppers with independent heating and mixing help maintain consistent material conditions for smooth dual-color filling.
Dual Diving Filling Heads: Servo piston filling with dual diving nozzles provides controlled dispensing of two materials for consistent dual-color swirl filling.
Customized Container Holding Molds: Container holding molds keep each container securely positioned during filling and can be customized for different product sizes.
Integrated Electrical Control System: The electrical cabinet integrates and organizes key control components for stable, coordinated machine operation.
