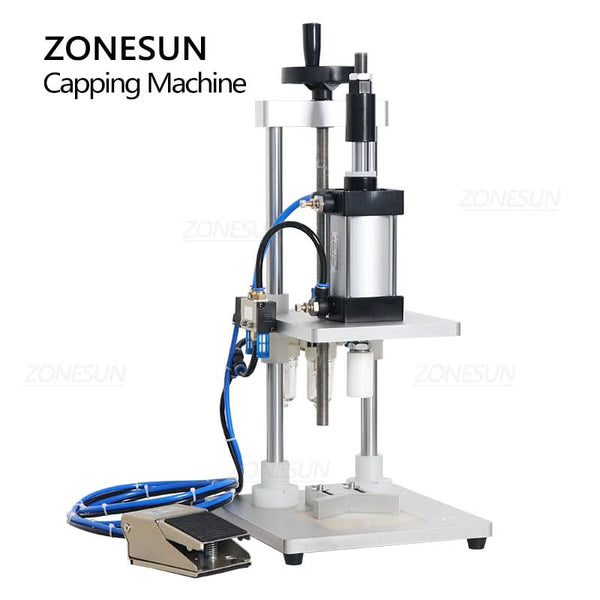

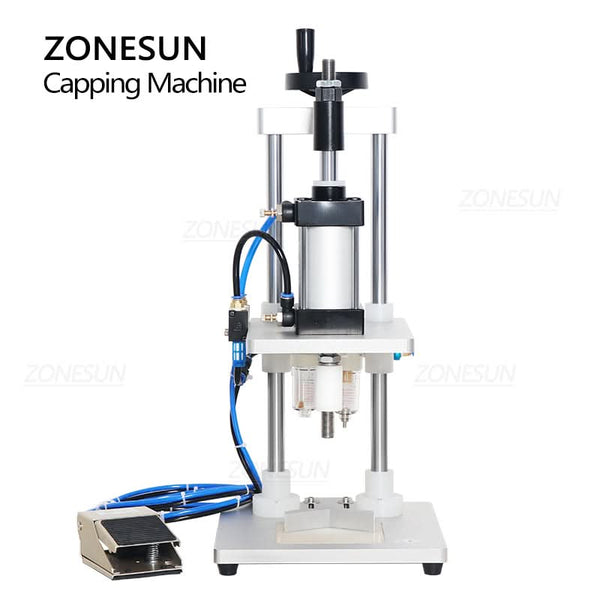

ZONESUN ZS-GK5 Pneumatic Perfume Bottle Collar Capping Machine
Engineered for professional perfume packaging lines, the ZS-GK5 delivers consistent, high-speed collar pressing with pneumatic power — eliminating manual fatigue and reducing reject rates to near zero.
🔑 Key Selling Points
- Interchangeable Molds (13 / 15 / 18 / 20mm) — Switch bottle sizes in minutes; custom sizes available on request.
- Adjustable Working Height (60–200mm) — Accommodates a wide range of bottle heights without retooling.
- Compact Desktop Footprint (250×300×600mm) — Fits small workshops and production benches; easy to relocate.
- Pneumatic Drive (0.4–0.8 MPa) — Consistent force output, lower operator fatigue vs. manual presses.
📐 Technical Specifications
- Model: ZS-GK5
- Bottle Mouth Size: 13 / 15 / 18 / 20mm (Customizable)
- Working Height: 60–200mm (Adjustable)
- Air Pressure: 0.4–0.8 MPa
- Sealing Pass Rate: 99%
- Sealing Speed: 10–40 bottles/min
- Net Weight: 12.6 kg
- Machine Dimensions: 250 × 300 × 600 mm
- Gross Weight: 17.5 kg
- Packaging Size: 335 × 300 × 600 mm
🏭 Ideal For
Perfume manufacturers, cosmetic OEM/ODM factories, small-batch fragrance brands, and packaging service providers requiring reliable, repeatable collar sealing on glass perfume bottles.
📦 Need a Custom Size?
Contact us for molds outside the standard 13–20mm range.
HEIGHT ADJUSTMENT
The adjustable height allows the machine to accommodate bottles of different sizes.

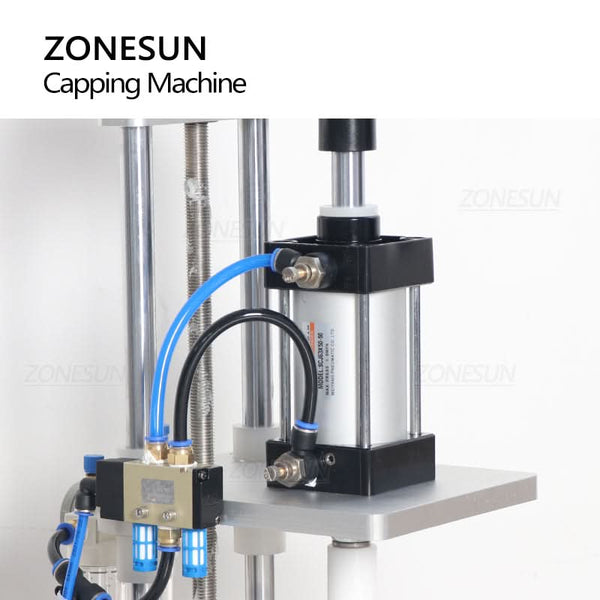

PNEUMATIC DRIVE
The air cylinder provides fast, powerful capping.
PRESSING HEAD
The pressing head is suitable for bottle openings measuring 13, 15, 18, or 20 mm. Other sizes can be customized.
ADJUSTABLE BOTTLE FIXTURE
The adjustable fixture on the base plate positions bottles of different sizes during capping.
FOOT PEDAL
The pneumatic foot pedal provides simple, labor-saving operation.
