Main Parameter
Model: ZS-100 (10×13CM )
Principle: Leverage principle
Material: Steel, Aluminum
Up and down trip: 16CM
Time Range: 0-15S
Voltage: 220V/110V
Power: 300-500W
Pressure range: 15-38kgf
Packing size: 42.5*28*22 CM
Temperature range: 0-350°C
Total weight: 6.5 kg
Head accuracy: ±0.33MM
Hot stamping range: 10×13CM
ZS-100 is the Upgrade model of the ZS-90. It is not only used for customized mold , but also the holder with letters.When you dismantle the heating working ironing board,it can be used like ZS-90. Compared with ZS-90 it 's more humanization and convenient
Notice:
This one link is ZS100 without letter set . if you want letter set .pls contact with us.
For leather with uneven surface, it can only be used for hot stamping, not for bronzing paper.
We are specialized in stamping machine and custom brass logo stamps . if you have any question . don't hesitate ! contact with us
How to Adjust Temperature Settings
Turn on the power switch
Press the set key to set temperature
Press 〈 〉 to select the digit
Press ∧ ∨ to adjust the temperature
Press set to start working
Preheating 3 minutes for leather, 5 minutes for wood
Green color is the temperature you set, red color is the temperature machine reached

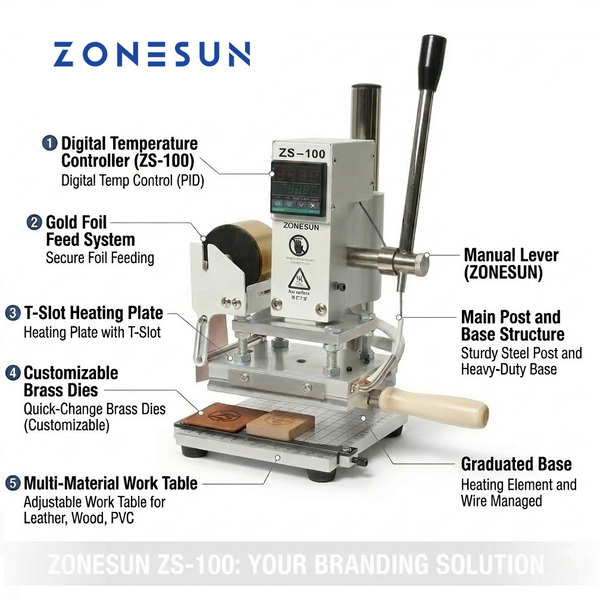

Introduction of ZS-100
- Desktop multi-function embossing hot stamping machine, compact and convenient, direct plug and use.Adjustable thermostats, replaceable molds to customize for whatever you need.
- The embossed position must be a flat surface, and a smooth flat hot stamping works best.
- Different from ordinary hot stamping machines, this hot stamping machine is designed with a removable T-slot heating plate, making it possible to change the mold at high temperatures, simply, conveniently and quickly.
- Suitable for leather / leather bags / business cards / paper / plastic / wood / hot stamping / branding, etc.
- With scale, easier to fix the stamping position.
Surprising features of the ZS-100
1) Digital temperature control: Digital display of temperature, very intuitive. The temperature is accurate to single digits with almost no errors. Heat quickly, press the button to set the temperature.
2) Digital display of the internal structure of the electrical box: Temperature control and circuit board integration, the failure rate is small, less wiring, and higher safety factor.
3) Temperature-controlled probe: Screw-type thermocouple, the tail can be turned, stainless steel shielded tail. Not afraid of bending, accurate and durable.
4) Using dual heat pipes, faster heating, longer life, and can achieve constant temperature effect.
5) Transfer paper bracket: It can be put on the bracket directly by hot stamping paper, and the hot stamping is faster, more convenient and perfect.
6) A scale is designed on the base plate to control the size of the hot stamp, which improves the convenience of use
.
7) Detachable T-slot heating plate enables the device to change molds at high temperatures, which is simple, convenient and quick.
Temperature/time
Paper bronzing: 100 degree/1 S
Paper embossing: 300 degree/3 S
Leather bronzing: 100 degree/ 1 S
Leather embossing: 180 degree/ 3 S
PVC bronzing: 100 degree/ 1 S
Food embossing: 250 degree/ 3 S
Leaves embossing: 320 degree/3 S
Wood embossing: 350 degree/5 S
it have video show how it works
Application:
It is used for bronzing, indentation and branding of leather products, rubber products, technical products, plastic products, paper and other surfaces.
