DESCRIPTION

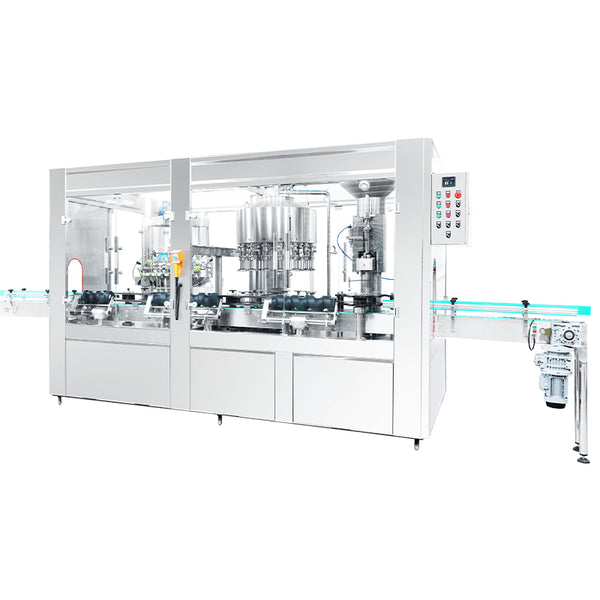

Introducing our state-of-the-art automatic wine packaging machine, engineered for high-volume production. This robust system integrates rinsing (16 heads), filling (16 heads), and corking (1 head) into a seamless process, achieving a remarkable output of up to 2200 bottles per hour. Ensure precision, efficiency, and consistent quality in your wine bottling operations with this advanced solution.

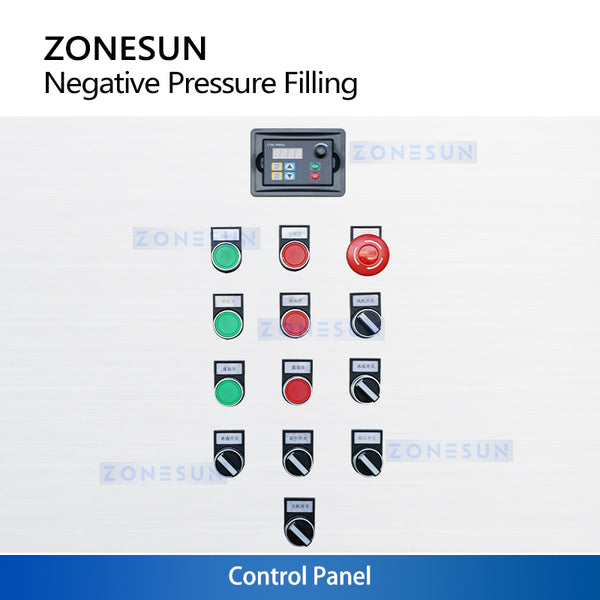

PARAMETER CONTROL PANEL Controls rinsing, filling, and capping parameters while providing real-time monitoring and safety management for stable automated production.
Model: ZS-AFC883W
Voltage: 220V/110V 50-60Hz
Power: About 4kW
Production Speed: About 2200 BPH (depending on bottle size and filling materials)
Filling Range: 150-1500ml (Can be customized)
Filling Accuracy: ±1%
Filling Method: Negative Pressure Filling
Bottle Size: Can be customized
Machine Size: About 3200*1500*2200mm

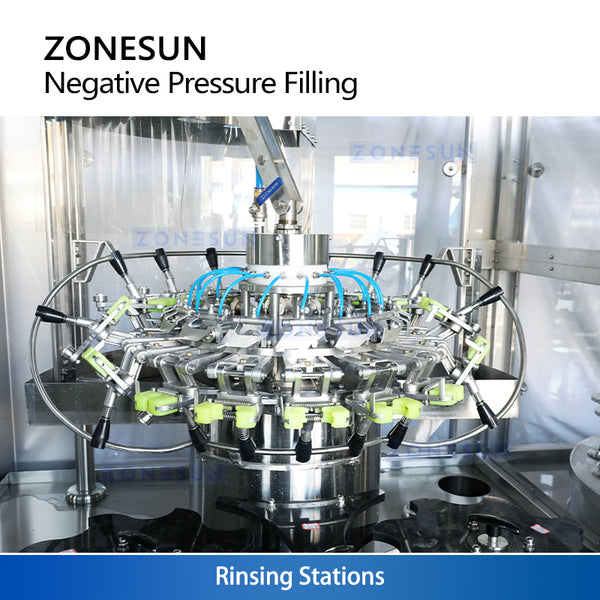

BOTTLE RINSING
Provides efficient bottle rinsing through controlled gripping, inversion, flushing, drainage, and transfer. The number of rinsing heads can be customized.

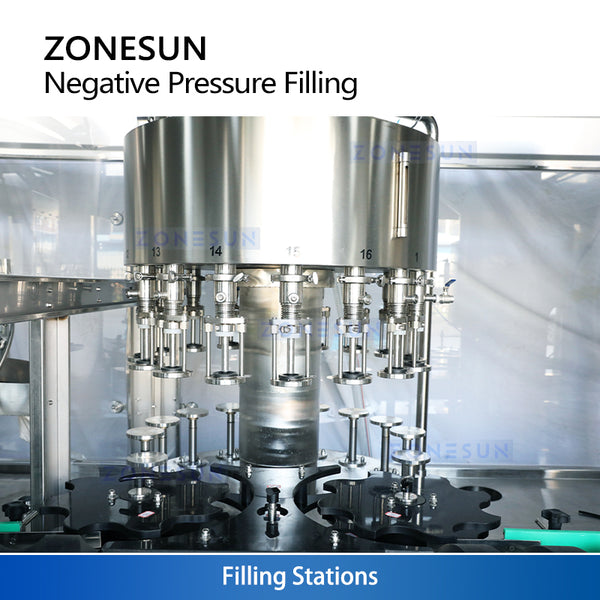

FILLING NOZZLES
Dispenses liquid along the bottle wall to help control foaming. The number of filling nozzles can be customized.

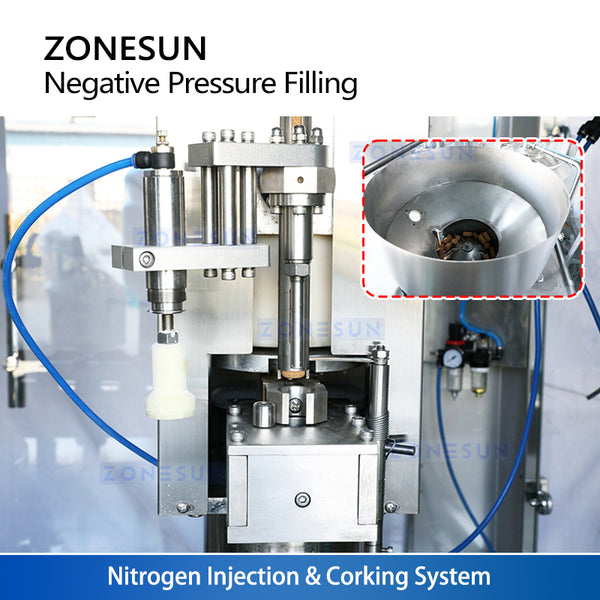

NITROGEN INJECTION AND CORKING
Performs nitrogen flushing and cork insertion through synchronized bottle handling, cork feeding, compression, and sealing.

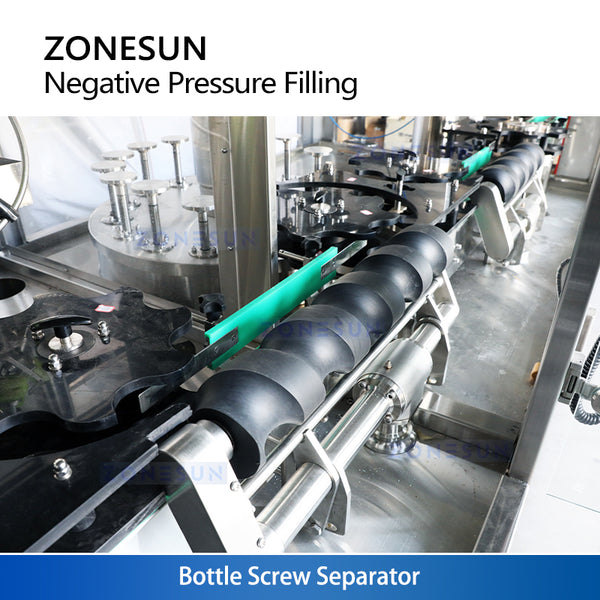

BOTTLE SCREW SEPARATOR
Feeds and spaces bottles at equal intervals for accurate transfer into the rinsing, filling, and corking sections.
ELECTRICAL CABINET
Houses the electrical components for centralized control and power distribution.
