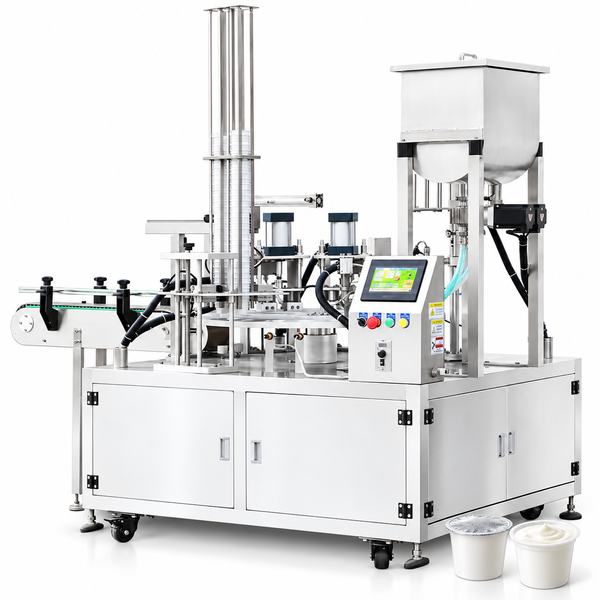

The ZONESUN ZS-AFS07R integrates automatic cup feeding, servo gear-pump filling, film placement and detection, heat sealing, and finished-product discharge in one rotary system. It is designed for yogurt, sauces, juice, dips, dairy products, cosmetic creams, and similar liquids or pastes packed in preformed cups.
Key Features
- Servo gear-pump filling for repeatable dosing and convenient parameter adjustment.
- Rotary workstations support continuous production at up to 1200–1400 cups/hour.
- Automatic film placement, detection, heat sealing, and cup discharge.
- 50 L hopper; optional heating and mixing configuration is available.
- Custom cup holders and sealing molds support application-specific cup dimensions.
- PLC touchscreen operation with an enclosed stainless-steel machine body.
Specifications
| Model | ZS-AFS07R |
| Voltage | 110/220 V, 50–60 Hz |
| Power | 2.8 kW |
| Production speed | 1200–1400 cups/hour (depends on fill volume and product) |
| Filling range | 10–100 ml (customizable) |
| Filling accuracy | ±1% |
| Filling system | Servo gear pump |
| Sealing temperature | 0–400°C |
| Hopper capacity | 50 L |
| Air pressure | 0.8 MPa |
| Machine size | Approx. 2300 × 1200 × 1800 mm |
| Packing size / weight | Approx. 1560 × 1360 × 1860 mm / 598 kg |
Important Ordering Notes
Cup size and sealing film must be confirmed before production. Cup holders and sealing molds are customized to the supplied samples or drawings. An external compressed-air source capable of 0.8 MPa is required. Filling speed and accuracy depend on product viscosity, fill volume, and operating conditions. Heating/mixing hopper configurations are optional—contact us before ordering if required.
