Description

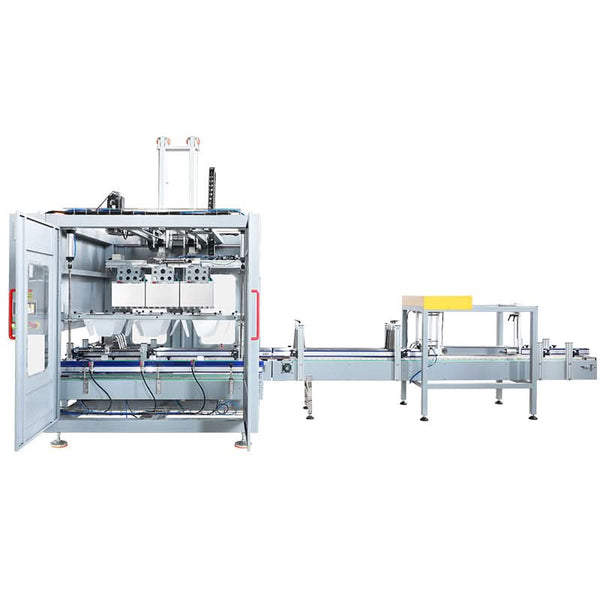

The ZONESUN ZS-CPL2 is a fully automatic cartoning machine designed for efficient case packing of bottles, jars, and tins. Operating at 10–15 cases per minute, it uses a grab-type packing method with a mechanical suction gripper capable of handling 3 cases per grab. The system integrates carton expanding, bottle sorting, precise conveying, and automated loading to streamline end-of-line packaging. With stable performance, reduced labor demand, and compatibility with various container types, it is ideal for medium to large-scale production lines.
Parameter
- Model: ZS‑CPL2
- Packing Method: Grab‑type case packing
- Power Supply: 3‑phase 380 V, 50 Hz
- Power Consumption: 5 kW
- Air Pressure: 0.6 MPa
- Air Consumption: 450 NL/min
- Packing Speed: 10–15 cases/min
- Frame Material: Carbon steel frame with powder‑coated surface
- Gripper Type: Mechanical gripper (3 cases per grab)

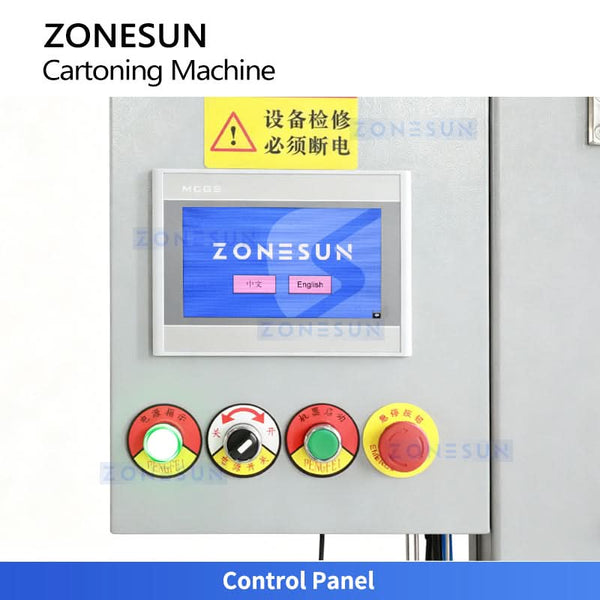

CONTROL PANEL
Centralizes machine control, enabling parameter setting, operation commands and status monitoring for safe, efficient cartoning.

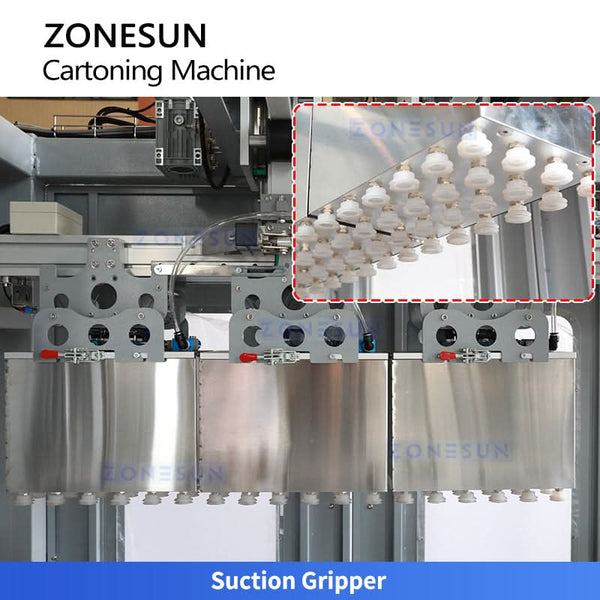

SUCTION GRIPPER
Uses vacuum suction to pick up and place products with stable gripping and accurate positioning. Applicable to various bottles, jars, and tins.

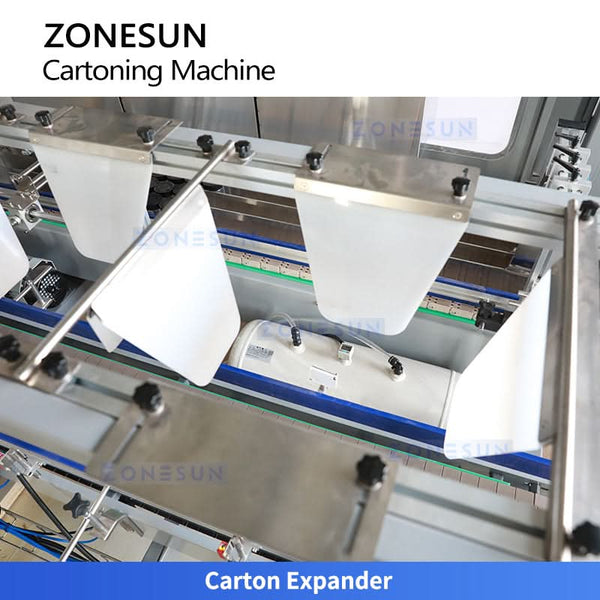

CARTON EXPANDER
Opens and expands flat cartons into a box shape, ensuring they are fully formed and ready for product loading.

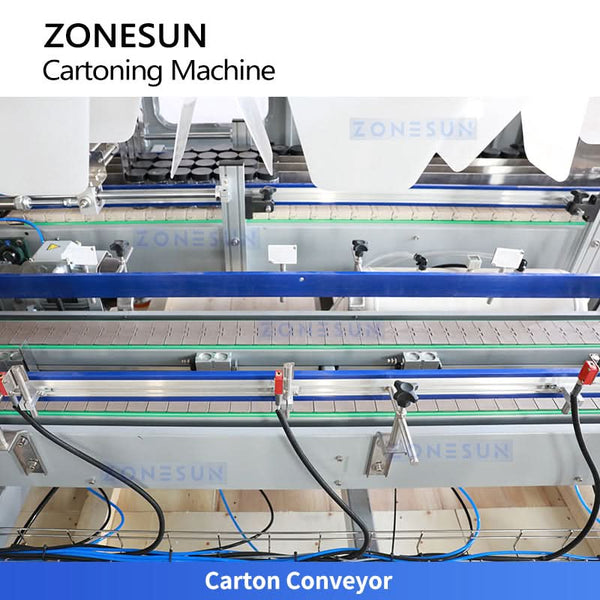

CARTON CONVEYOR
Smoothly along the packing line, ensuring stable conveying and accurate alignment for subsequent forming, loading and sealing steps.

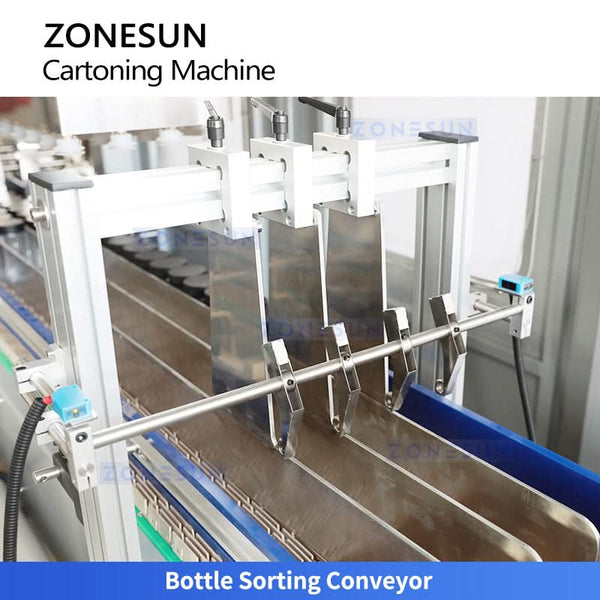

SORTING CONVEYOR
Separates, aligns and conveys bottles in an orderly single-lane flow, ensuring stable feeding and accurate positioning before they enter the cartoning section.
SENSOR
Counts bottles and assigns them into each designated lane, ensuring accurate quantity distribution and orderly feeding for the downstream cartoning process.
