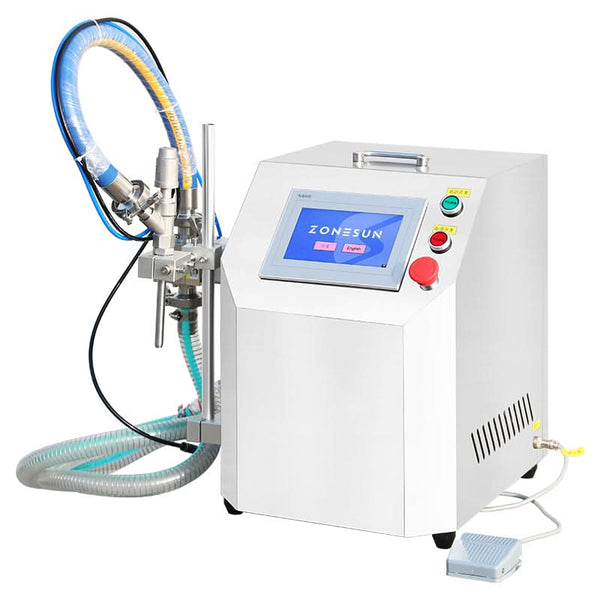

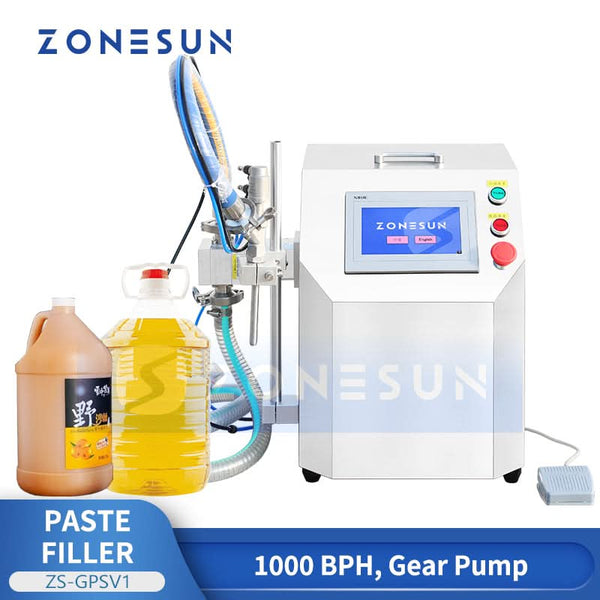

This semi-automatic filling machine features a handheld nozzle designed like a fuel dispenser, enabling smooth, precise, and user-friendly operation. It is equipped with a servo-driven gear pump, ideal for filling a wide range of viscous and fluid materials—including creams, lotions, sauces, oils, and other flowable, particle-free liquids. Designed to handle both thick pastes and runny liquids, the machine supports large filling volumes and ensures consistent, accurate output. Its compact design saves space, making it a practical solution for small to medium-scale production in food, cosmetic, chemical, and household product industries. Note: Not suitable for materials containing solid particles.
PARAMETER
Model: ZS-GPSV1
Machine voltage: 110/220V 50-60HZ
Filling range: 10-200ml / 200ml-3L / 3L-10L / 10-25L

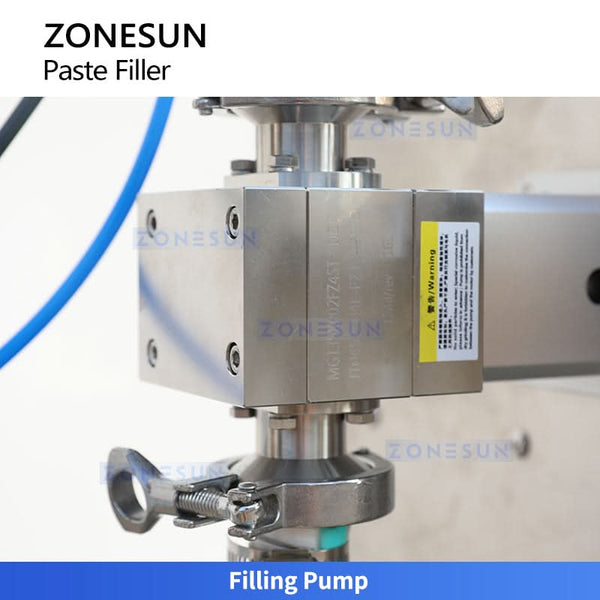

Filling pump: Gear Pump

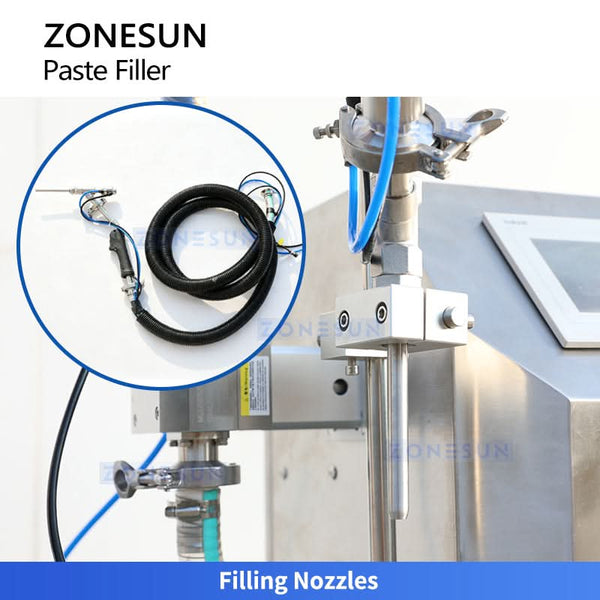

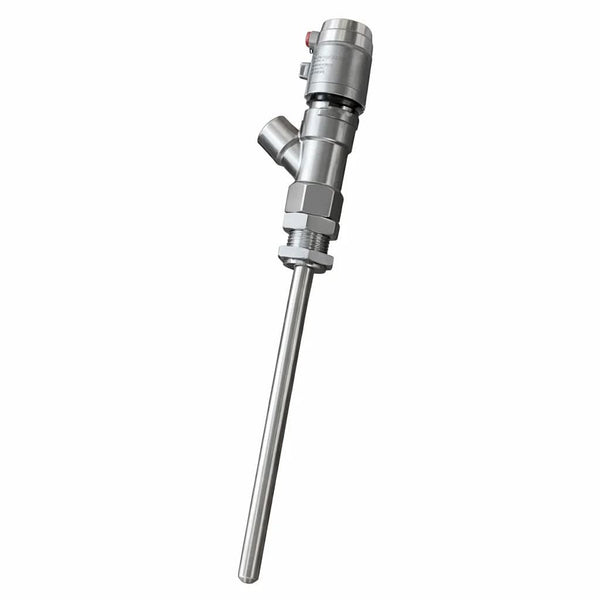

Filling nozzle: Regular Fixed Nozzle & Handheld Nozzle
Suitable bottle size: Customizable
Filling accuracy: ±1%
Working capacity: 900-1000 BPH (based on 300ml)
Machine casing: SUS304
Gear pumps are commonly used for transferring:
Lubricating oils (e.g., machinery oil, hydraulic oil, engine oil)
Fuels (e.g., diesel, heavy oil, light oil)
Chemical liquids (e.g., resin, paint, additives)
Food-grade liquids (e.g., syrup, chocolate paste, vegetable oil) — requires a stainless steel food-grade gear pump
Polymers and viscous materials (e.g., glue, bitumen)
👉 If you need a food-grade filling machine, feel free to contact us for customized solutions!
NOTE：Note: 110V machine needs to be connected to a transformer
The standard filling nozzle sizes are 12 mm and 25 mm. Kindly confirm that your bottle opening size is compatible before placing an order. Thank you for your support.
