Description

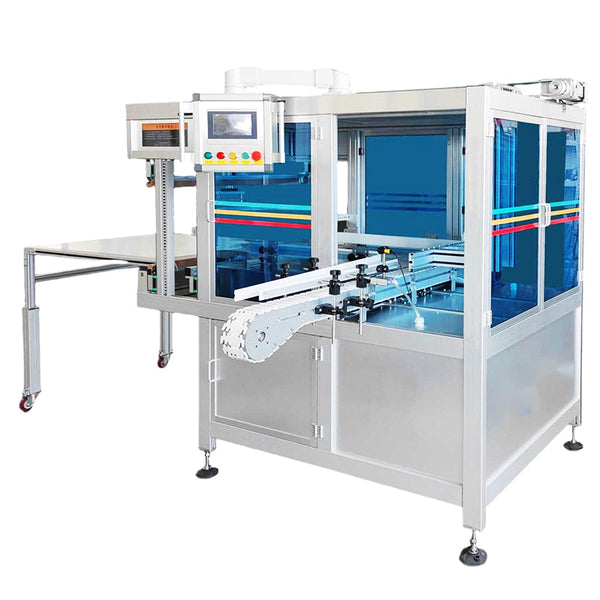

The ZONESUN ZS-SPL20 is an automatic plastic bottle bagging machine that efficiently packages empty containers into film bags. With a capacity of 6,500–7,000 bottles per hour, it boosts productivity and reduces labor costs. Built with an all‑aluminum body and a 304 food‑grade stainless steel platform, it offers durability, hygiene, and long service life. Compatible with bottle sizes from 200 ml to 5 L, it integrates seamlessly with blow molding, labeling, and other equipment to form a fully automated line. Ideal for bagging beverage bottles, detergent jugs, and spray bottles.
Parameter
|
Model |
ZS-SPL20 |
|
Suitable Product |
Customized |
|
Bottle Type |
100 ml–5 L plastic containers of various shapes |
|
Bagging Speed |
4000-12000 bottles/hour |
|
Bag Height |
Customized |
|
Voltage |
220 V, 50 Hz |
|
Total Power |
0.75 kW |
|
Compressor Consumption |
0.03 m³/hour |
|
Machine Size(L×W×H) |
2800 × 1650 × 1800 mm (customized based on barrel size) |
Features
Control Panel
Controls bottle bagging operations with realtime monitoring, fault alerts, and customizable packaging parameters.
Bottle Pushing
Aligns incoming bottles into neat rows based on preset quantity and layout, then smoothly pushes them into the positioned bag.
Bottle Infeed Conveyor
Transfers bottles steadily into the bottlepushing unit for orderly arrangement, ensuring smooth infeed and stable operation of the baginserting process.

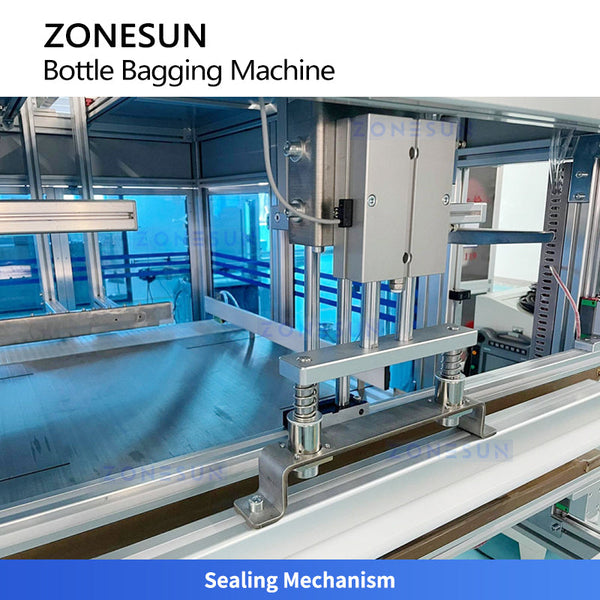

Sealing Mechanism
Seals the packaging bag after bottle insertion, preventing moisture, dust, or bottle spillage during transport and storage.

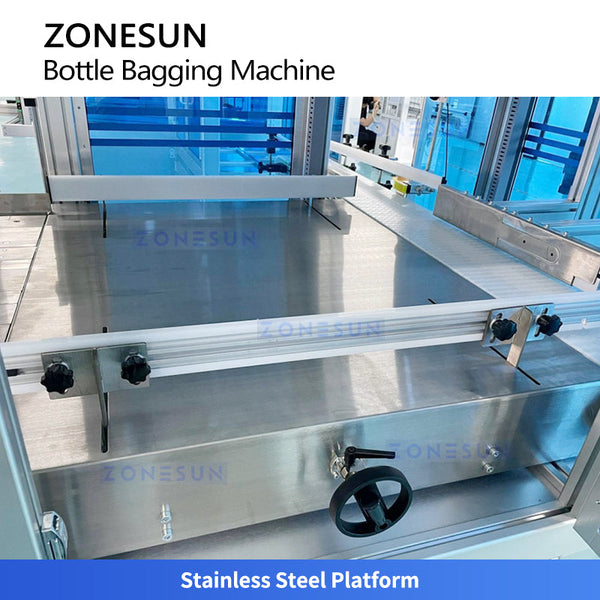

Stainless Steel Structure
Provides a hygienic, stable surface for bottle alignment and automated bagging, made of corrosionresistant 304 stainless steel.
