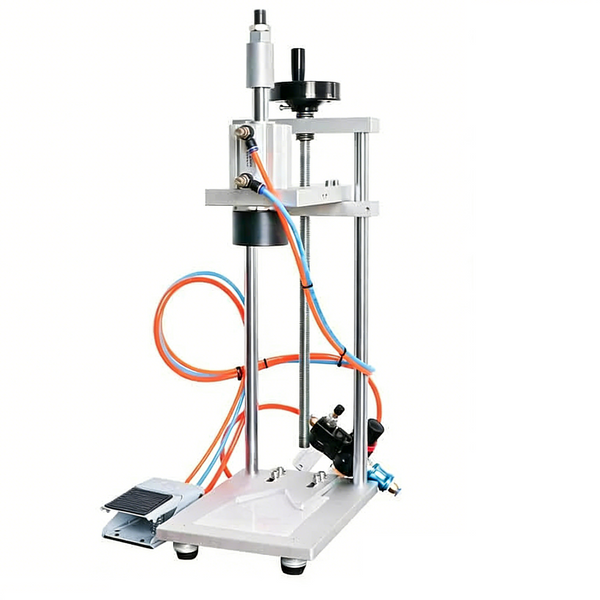

This machine machine is designed for pressing bottle caps like T-cork or inner plug of bottles.The working height of this machine can be adjusted according to operation need.It is widely used in food,beverage and cosmetics industries.
Parameter
Machine model:ZS-XG30ZC
Working pressure:0.4-0.9pa
Capping speed:20-40 bottles/min
Cap size diameter:≤7cm (can be customized)
Bottle height:≤30cm
Cylinder size:65x75x250mm
Machine size:285x200x600mm
Packing size:300x220x620mm
Machine weight:11kg
The pressing power and speed can be adjusted by controlling amount of input and output air,this can improves the capping quality.
Designed with bottle positioning plate,this can be adjusted according to bottle diameter,and makes the bottle can be press accurately and will not easy to fall down during capping,improves production quality.
The mold of pressing head can be customized according to bottle cap size,makes sure the machine can work perfectly.
The machine is controlled by pedal switch,this can free your hands during working,help you improves working efficiency.
