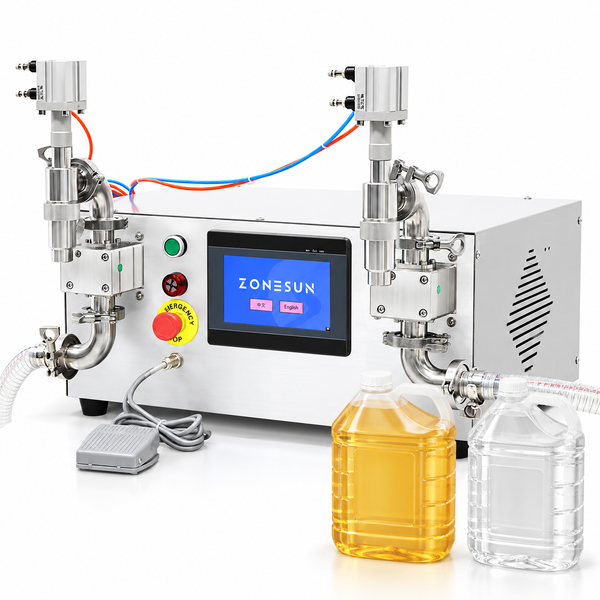

Introducing our powerful tabletop filling machine, designed for efficient and precise filling of large containers. Equipped with two servo motor-driven magnetic pumps, this machine delivers a high flow rate of up to 45L/min, ensuring rapid filling. The dual pneumatic filling heads provide accurate and consistent filling, while the user-friendly touchscreen interface allows for easy control and multi-speed settings. Directly set the desired filling volume for effortless operation. Ideal for filling buckets and other large containers, our tabletop filling machine is a reliable and versatile solution for your production needs.
Parameter
Model ZS-YTMP45L2
Machine Voltage 110/220V, 50–60Hz, 1600W
Filling Pump Servo motor driven magnetic pump
Liquid Viscosity Range 0.2–12,000 cps
Maximum Flow Rate 45 L/min
Recommended Filling Range 5–30 L
Filling Accuracy 0.2%–1%
Working Speed 240 bottles/hour (based on 15L per bottle)
Filling Head Anti-dripping, OD 25 mm, ID 23 mm
Other sizes available
Machine Dimensions 603 × 576 × 465 mm
Packing Size 670 × 580 × 630 mm
Gross Weight 77 kg
CONTROL PANEL
The PLC touchscreen clearly displays machine parameters for convenient operation.
MAGNETIC PUMP
Uses a 316 stainless steel magnetic pump with a wide filling range.
ANTI-DRIP FILLING NOZZLE
The pneumatic anti-drip nozzle supports effective filling of thicker liquids.
FOOT SWITCH
The filling cycle is controlled by foot switch to support efficient operation and reduce errors.
COOLING VENTS
Heat-dissipation protection helps maintain a stable machine temperature during extended operation.
