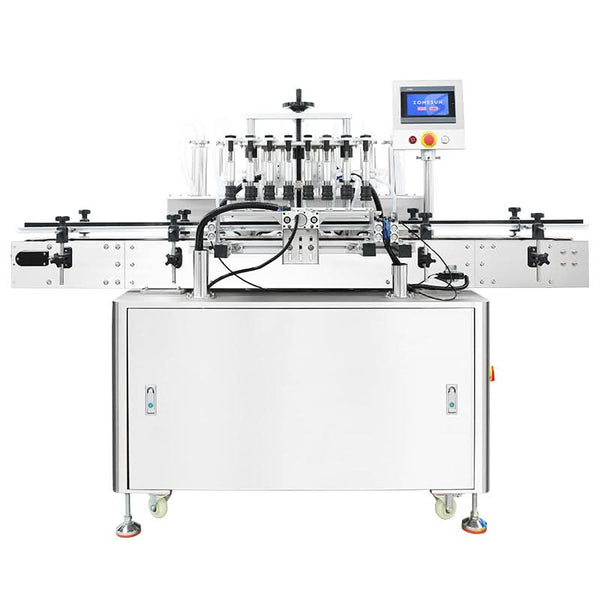

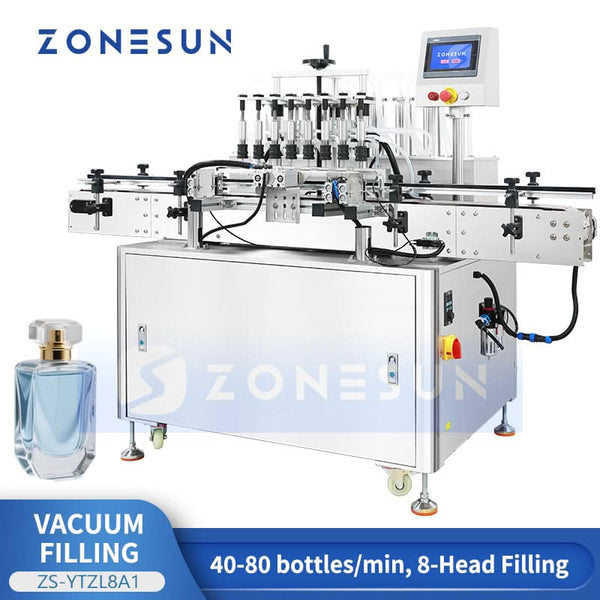

The ZONESUN ZS-YTZL8A1 is an automatic eight-head vacuum filling machine designed for perfume and other compatible low-viscosity liquids. Vacuum constant-level filling helps maintain a consistent visible liquid height across bottles while automatically drawing excess liquid back into the recovery system.
Air supply notice: The machine uses compressed air as its primary operating power source. An air compressor must be purchased separately.
Key Features

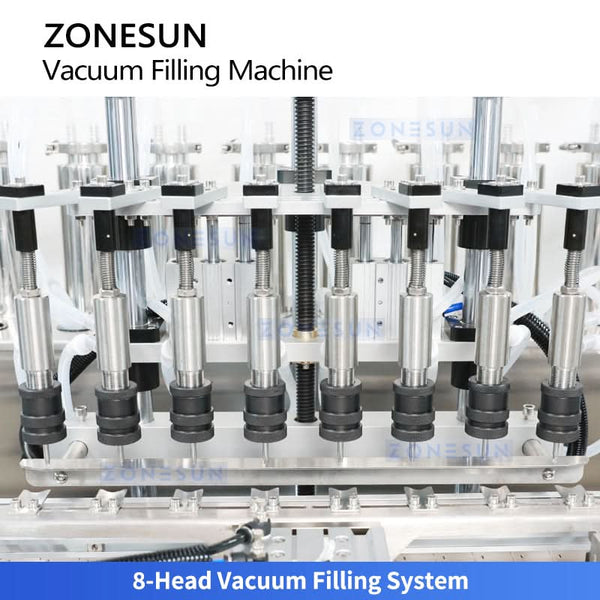

- Eight-head vacuum filling: Eight nozzles operate simultaneously for an output of approximately 40–80 bottles/min.
- Constant liquid level: Vacuum filling maintains a uniform visible liquid height even when bottle capacities vary slightly.

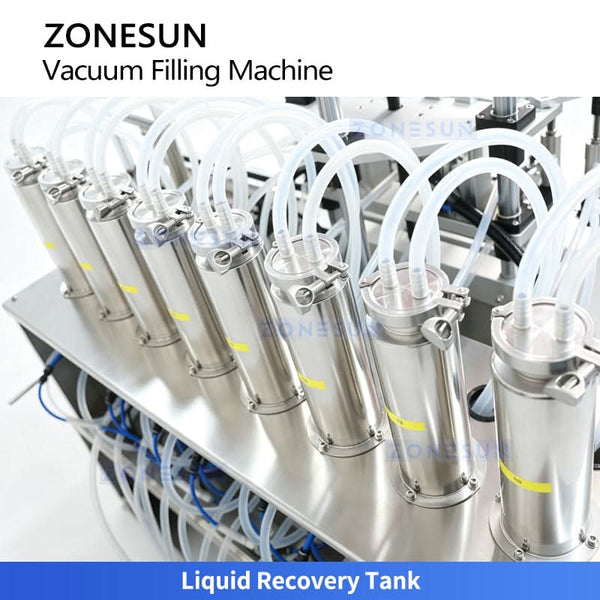

- Automatic liquid recovery: Excess liquid is drawn back and collected in the recovery tanks during filling.

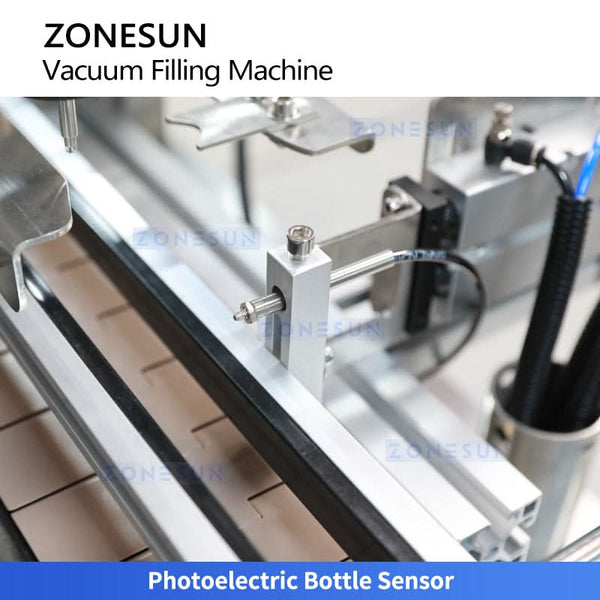

- Photoelectric bottle detection: Detects incoming bottles and coordinates the automatic filling cycle.

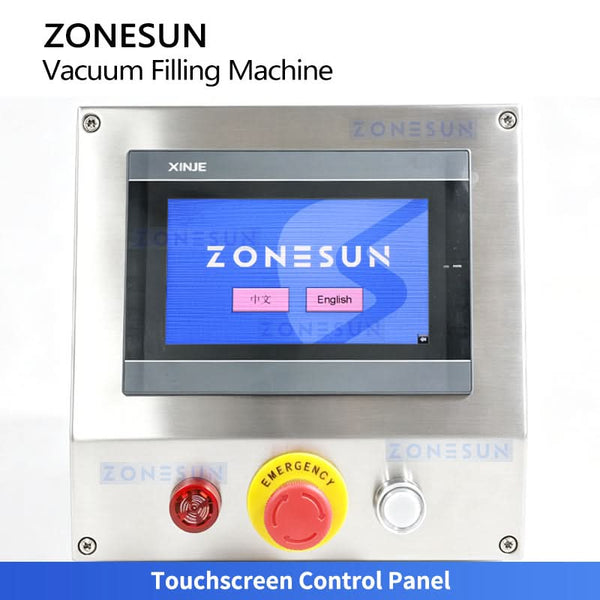

- Touchscreen control: Allows convenient adjustment of operating parameters; interface languages can be customized as required.

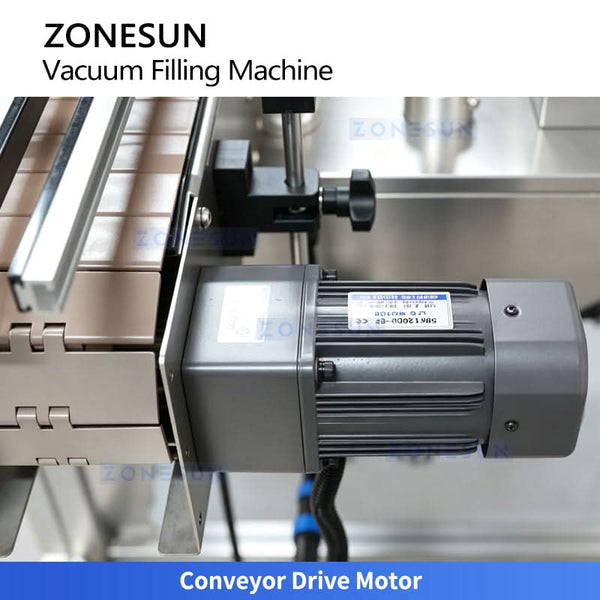

- Continuous conveying: The conveyor motor transfers bottles steadily through the filling station.
Specifications
| Model | ZS-YTZL8A1 |
|---|---|
| Voltage | 220 V |
| Power | 400 W |
| Number of Filling Heads | 8 |
| Production Speed | 40–80 bottles/min |
| Liquid Level Accuracy | ±1 mm |
| Air Pressure | 0.5–0.8 MPa |
Applications
Suitable for compatible small-dose, low-viscosity liquids such as perfume, eyewash, water, and juice, especially when a consistent visible liquid level is required. It can connect with downstream capping and packaging equipment for continuous production.
